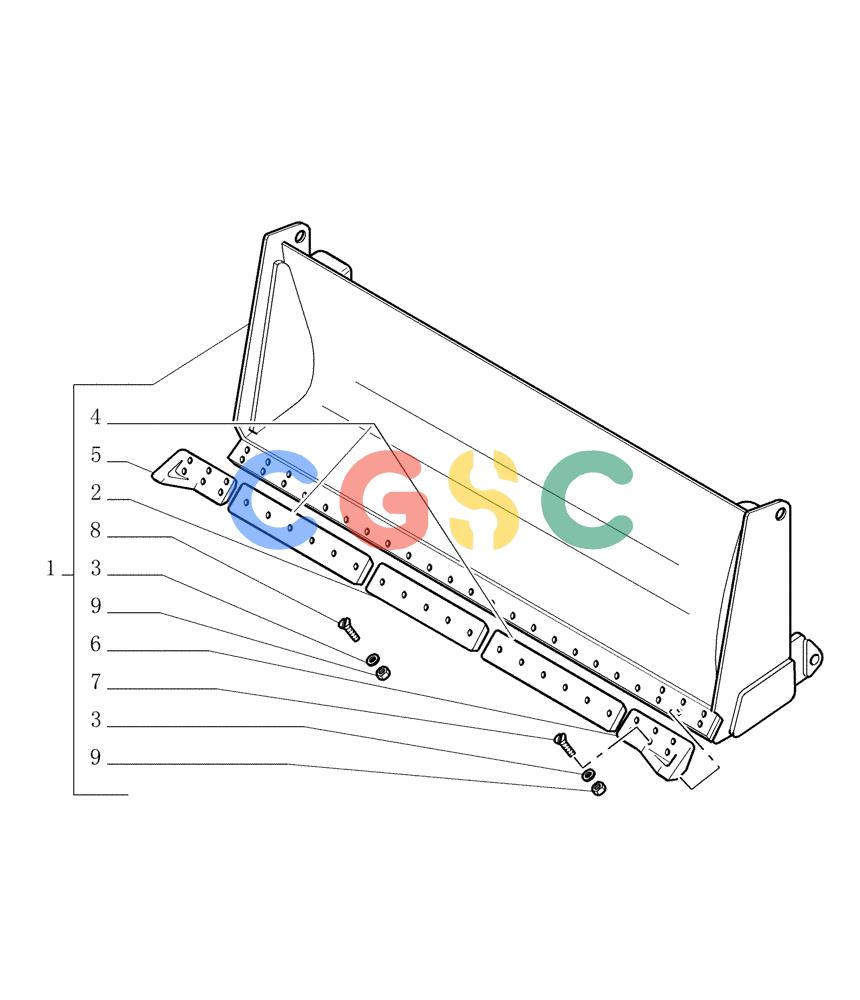

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.469[01]) - STRAIGHT MOLDBOARD (HS) - OPTIONAL CODE 76040978 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
959 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76040978 | [1] | DOZER BLADE | LEC- ASSY Superseded by part number: 76092007 |
| 2. | 76046502 | [2] | CUTTING EDGE | LEC |
| 3. | 14497131 | [30] | WASHER,21mm ID x 37mm OD x 3mm Thk | LEC Superseded by part number: 140021 |
| 4. | 76046503 | [1] | CUTTING EDGE | LEC |
| 5. | 8297646 | [1] | CUTTING EDGE | LEC- RIGHT Superseded by part number: 76015476 |
| 6. | 8297645 | [1] | CUTTING EDGE | LEC- LEFT Superseded by part number: 76015477 |
| 7. | 8273530 | [12] | SCREW,Sq Hd, M20 x 1.5 x 72mm | LEC20X1,5 Superseded by part number: 8289500 |
| 8. | 8282270 | [18] | PLOW BOLT,Plow, M20 x 1.5 x 67mm, Cl 10.9 | LEC |
| 9. | 86015195 | [30] | NUT,M20 x 1.5, Cl 10 | RAC |
