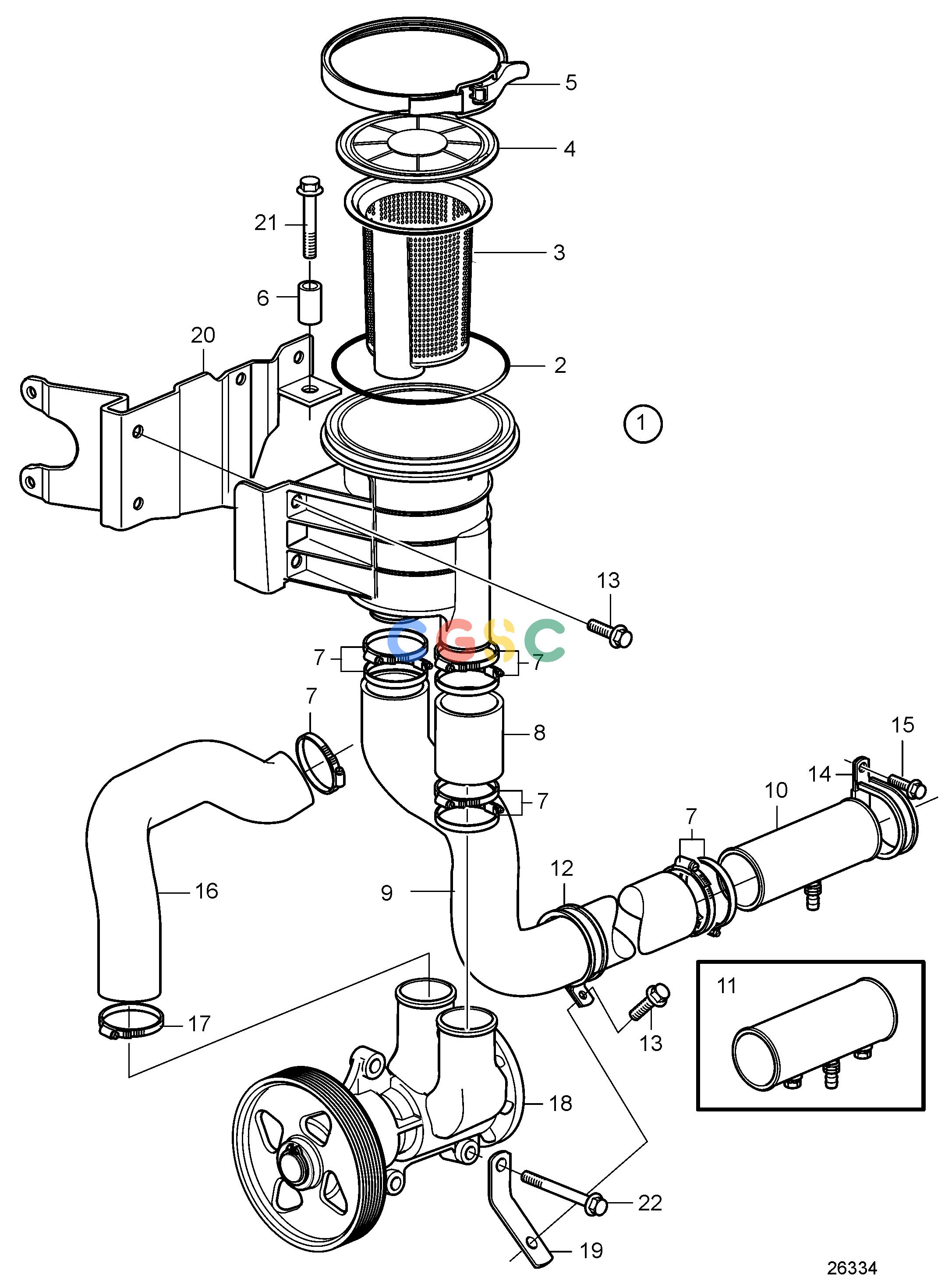

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FCooling SystemSea Water Pump and Sea Water Filter for Engines with DriveEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
990 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21368500
|
[1] |
Sea water filter
|
|
| 2. |
995147
|
[1] |
O-ring
|
|
| 3. |
21368504
|
[1] |
Strainer
|
|
| 4. |
21445782
|
[1] |
Cover
|
|
| 5. |
21368508
|
[1] |
V-clamp
|
|
| 6. |
3528225
|
[1] |
Spacer sleeve
|
|
| 7. |
961672
|
[9] |
Hose clamp
|
|
| 8. |
994814
|
[1] |
Rubber hose
|
|
| 9. |
21368518
|
[1] |
Hose
|
|
| 10. |
3584430
|
[1] |
T-pipe
|
|
| 11. |
3584243
|
[1] |
Radiator
|
|
| 12. |
980476
|
[1] |
Clamp
|
|
| 13. |
946173
|
[3] |
Flange screw
|
|
| 14. |
984474
|
[1] |
Clamp
|
|
| 15. |
945444
|
[1] |
Flange screw
|
|
| 16. |
21368514
|
[1] |
Hose
|
|
| 17. |
961671
|
[1] |
Hose clamp
|
|
| 18. |
21419374
|
[1] |
Sea water pump
|
|
| 19. |
21619824
|
[1] |
Bracket
|
|
| 20. |
21368510
|
[1] |
Bracket
|
|
| 21. |
994441
|
[1] |
Flange screw
|
|
| 22. |
947760
|
[4] |
Flange screw
|
|
