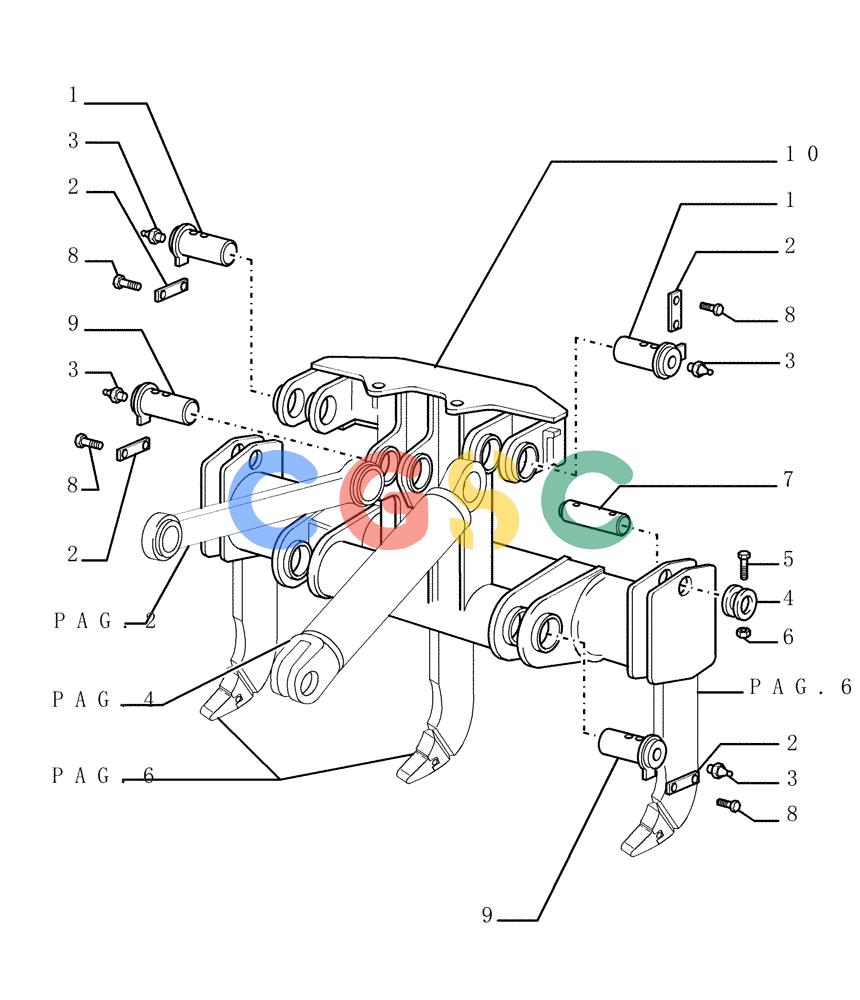

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.522[03]) - RIPPER (PD) - TOOL BAR - VERSION (01-02) - OPTIONAL CODE 76071211 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
511 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76027744 | [2] | PIN | LEC |
| 2. | 8299995 | [5] | LOCKING PLATE | LEC Superseded by part number: 76092109 |
| 3. | 13407211 | [5] | LUBE NIPPLE,M10 x 1 | TTF Superseded by part number: 84351730 |
| 4. | 8299968 | [6] | RING | LEC Superseded by part number: 76092119 |
| 5. | 11114031 | [6] | BOLT,Hex, M12 x 90, 10.9 | LEC Superseded by part number: 412605 |
| 6. | 12577521 | [6] | NUT,M12 x 1.75 | LEC |
| 7. | 79038232 | [3] | PIN | LEC |
| 8. | 11112431 | [10] | SCREW,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 87015736 |
| 9. | 76027739 | [3] | PIN | LEC |
| 10. | 79103481 | [1] | BAR | LEC Superseded by part number: 76092117 |
