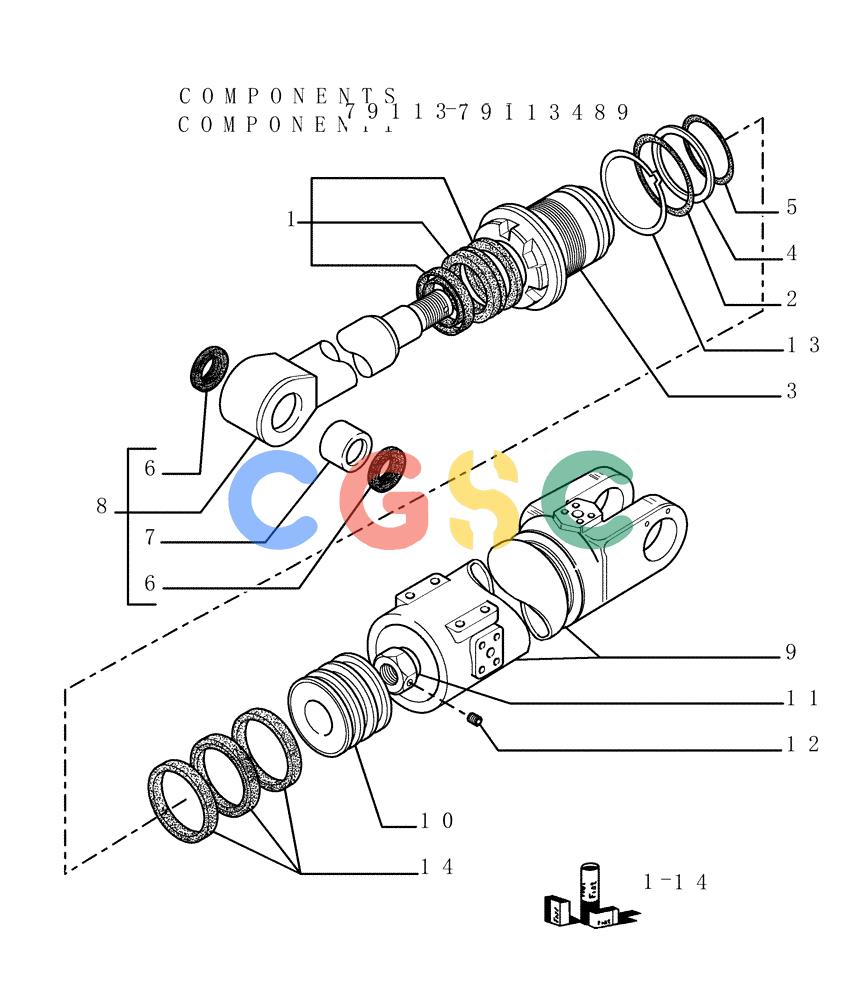

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.522[05]) - RIPPER (PD) - LIFT CYLINDERS - VERSION (01-02) - OPTIONAL CODE 76071211 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
368 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79071472 | [1] | SEAL | LEC |
| 2. | 14466080 | [1] | O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro | LEC Superseded by part number: 87421147 |
| 3. | 79099823 | [1] | GLAND | LEC |
| 4. | 79021911 | [1] | RING,94mm ID x 100mm OD x 6mm Thk | LEC |
| 5. | 14465780 | [1] | O-RING,0.139" Thk x 3.609" ID, -239, Cl 5, 75 Duro | BHB(M91.67 ID x 3.53 Thk) Superseded by part number: |
| 6. | 79065568 | [2] | SEAL,63mm ID x 78.25mm OD x 7.5mm Thk | LEC |
| 7. | 79110653 | [1] | BUSHING | LEC |
| 8. | 71446488 | [1] | ROD | LEC- ASSY |
| 9. | 71446494 | [1] | BARREL | LEC- LEFT |
| 9. | 71446493 | [1] | BARREL | LEC- RIGHT |
| 10. | 79095748 | [1] | PISTON | LEC |
| 11. | 79101845 | [1] | NUT | LEC |
| 12. | 79099830 | [1] | SET SCREW,less Hex Socket, M10 x 1.5 x 10mm | LEC |
| 13. | 79099831 | [1] | SEAL,108mm ID x 118mm OD x 4mm Thk | LEC |
| 14. | 79099829 | [1] | SEAL | LEC |
