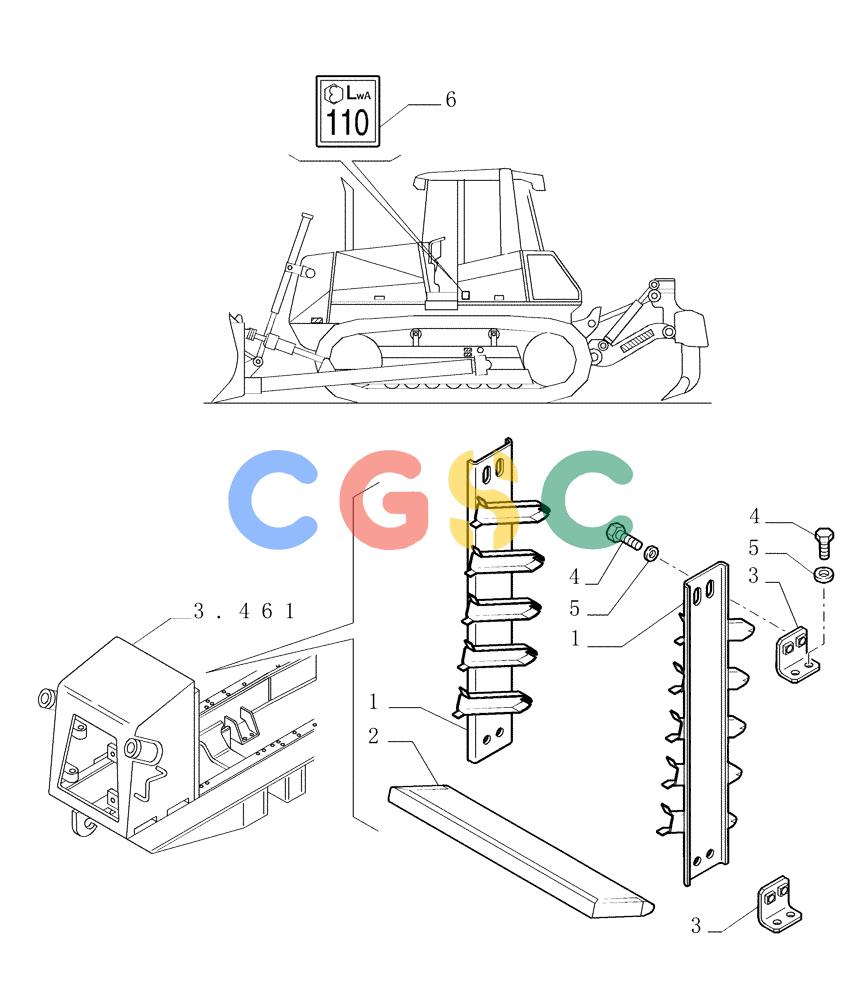

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.623[01]) - SOUND SUPPRESSION - VERSION (01-02) - OPTIONAL CODE 76068178 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
131 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76069229 | [1] | SUPPORT | LEC- LEFT |
| 1. | 76069236 | [1] | SUPPORT | LEC- RIGHT |
| 2. | 76069239 | [5] | PANEL | TOR- SOUND ABSORBING |
| 3. | 76069243 | [4] | PANEL | LEC |
| 4. | 11106031 | [16] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 5. | 14496631 | [16] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 6. | 76046331 | [1] | DECAL | LECLWA 110 |
