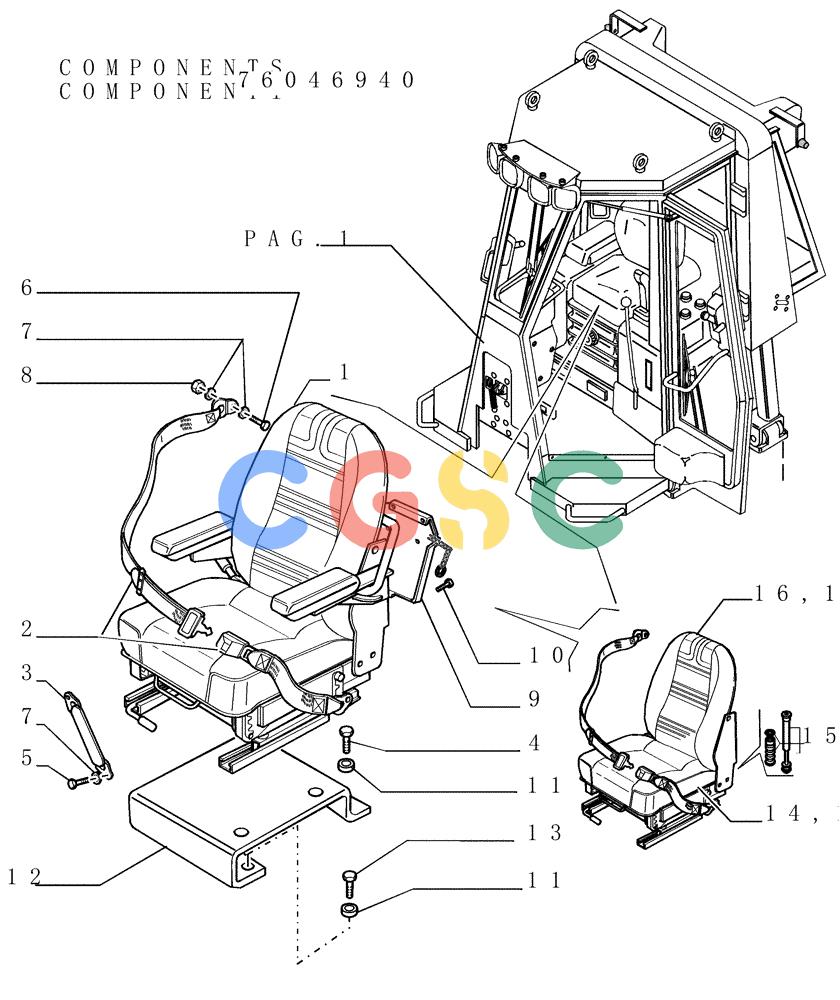

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[03]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
423 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76054653 | [1] | DRIVER SEAT | LEC |
| 2. | 79064620 | [1] | SAFETY BELT ,48.00 mm W | LEC Superseded by part number: 73159801 |
| 3. | 79035976 | [2] | SHIELD | LEC |
| 4. | 16043231 | [4] | SCREW,Hex, M8 x 16mm, Cl 10.9, Full Thd | LEC |
| 5. | 10979234 | [2] | BOLT,Hex, M10 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 10979231 |
| 6. | 11106434 | [2] | BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11106431 |
| 7. | 12626231 | [6] | WASHER,10.2mm ID x 25mm OD x 3mm Thk | LEC |
| 8. | 11701721 | [2] | NUT,M10, Cl 10 | LEC Superseded by part number: 17038131 |
| 9. | 79023080 | [1] | HOLDER | LEC |
| 10. | 15663101 | [3] | SELF-TAP SCREW,Cross Oval Hd, M4.2 x 13mm | LEC8X13 Superseded by part number: 15691301 |
| 11. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 12. | 76067254 | [1] | SUPPORT | LEC |
| 13. | 16043421 | [4] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: 16043424 |
| 14. | 76075493 | [1] | SEAT CUSHION | LEC |
| 15. | 76075491 | [1] | SHOCK ABSORBER | LEC |
| 16. | 76075492 | [1] | SEAT BACK | LEC |
| 17. | 76075494 | [1] | BACKREST COVER | LEC |
| 18. | 76075495 | [1] | SEAT COVER | LEC |
