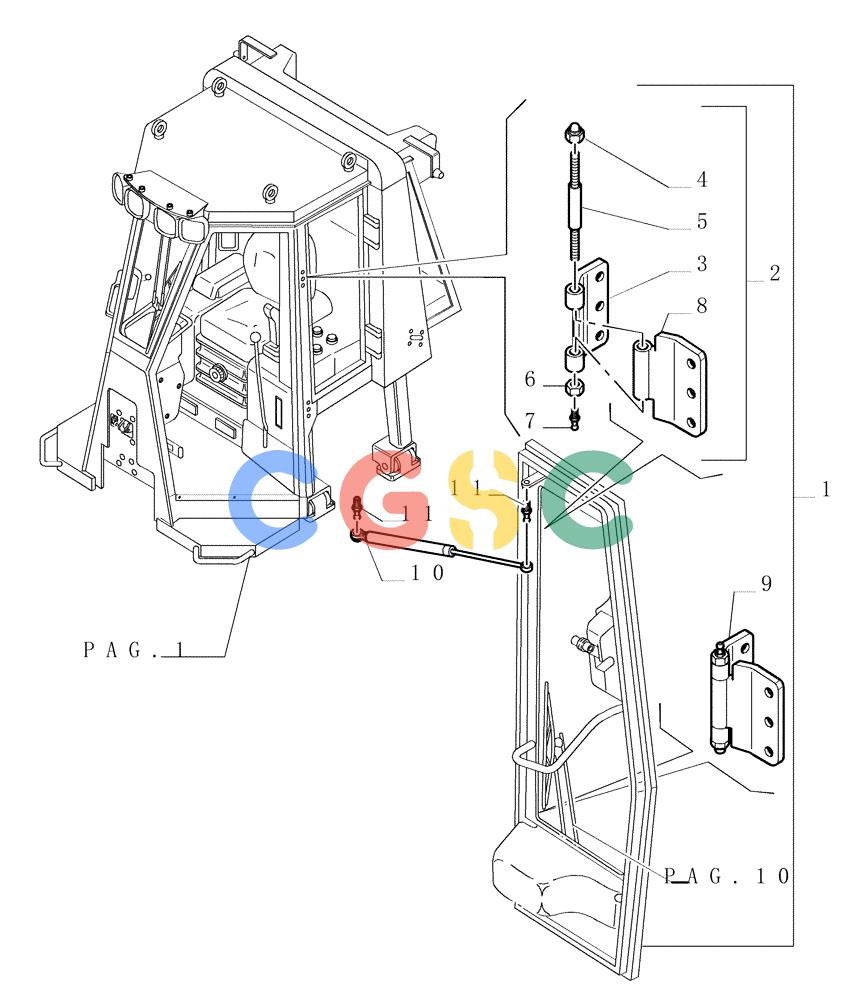

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[08]) - ROPS CAB - DOOR - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
765 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067687 | [1] | DOOR | LEC- RIGHT ASSY SEE PAG.9 |
| 1. | 76067688 | [1] | DOOR | LEC- LEFT ASSY SEE PAG.9 |
| 2. | 76067142 | [2] | HINGE | LECASSY - UPPER |
| 3. | 76067140 | [1] | HINGE | LEC- UPPER Superseded by part number: 76067142 |
| 4. | 14055811 | [1] | NUT | LEC12X1,75 |
| 5. | 76067139 | [1] | PIN | LEC |
| 6. | 11702911 | [1] | NUT,M12, Cl 8, ZND | LEC Superseded by part number: 17038425 |
| 7. | 76043510 | [1] | LUBE NIPPLE,M6 x 1 x 15 L | LEC Superseded by part number: 1491009 |
| 8. | 76067141 | [1] | HINGE | LEC Superseded by part number: 76067142 |
| 9. | 76067143 | [1] | HINGE | LEC- LOWER Superseded by part number: 76067142 |
| 10. | 76067417 | [2] | GAS STRUT | LEC- GAS F=300 L=485 C=200 Superseded by part number: 76067801 |
| 11. | 76067157 | [2] | BALL STUD | LECBALL PIN |
