沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FElectrical SystemCables, IPS, EVC-E, EVC-E2EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
1002 次

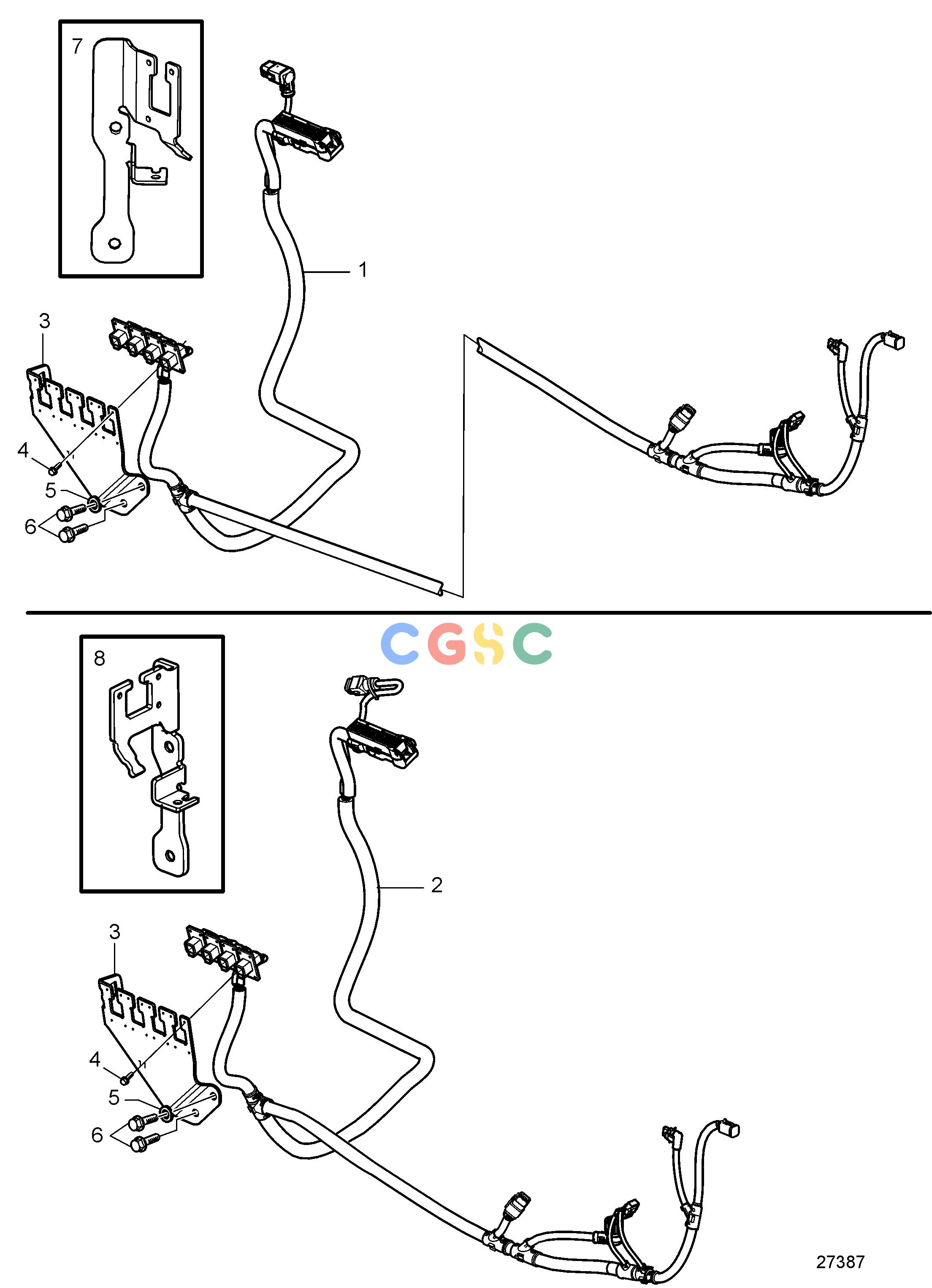

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21865860
|
[1] |
Wiring harness
|
L=600mm
|
| 1. |
22390849
|
[1] |
Wiring harness
|
L=500mm
|
| 2. |
21865861
|
[1] |
Wiring harness
|
L=1900mm
|
| 2. |
22390850
|
[1] |
Wiring harness
|
L=2500mm
|
| 3. |
21997961
|
[1] |
Bracket
|
|
| 4. |
968476
|
[16] |
Flange screw
|
|
| 5. |
11978
|
[1] |
Washer
|
|
| 6. |
946173
|
[2] |
Flange screw
|
|
| 7. |
21997963
|
[1] |
Bracket
|
|
| 8. |
22371761
|
[1] |
Bracket
|
|
