沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FElectrical SystemCables, Transmission, IPS, EVC-E3EPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
380 次

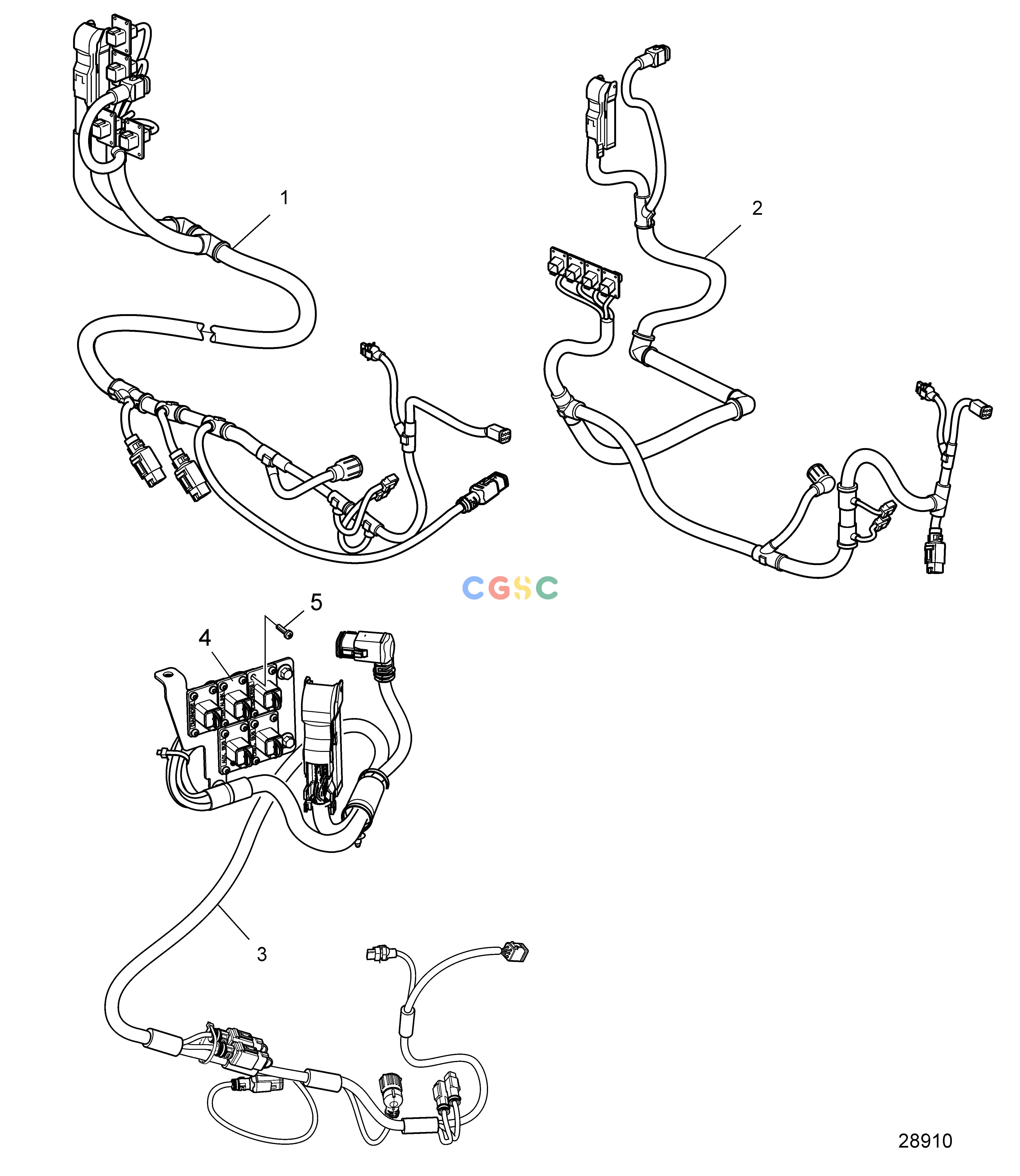

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
22023238
|
[1] |
Wiring harness
|
D13-IPS, L=1300mm, For jack shaft with length of 380mm.
|
| 1. |
22023239
|
[1] |
Wiring harness
|
D13-IPS, L=1700mm, For jack shaft with length of 700-800mm.
|
| 1. |
22023240
|
[1] |
Wiring harness
|
D13-IPS, L=2200mm, For jack shaft with length of 1100-1200mm.
|
| 1. |
22023241
|
[1] |
Wiring harness
|
D13-IPS, L=2600mm, For jack shaft with length of 1500-1600mm
|
| 1. |
22023242
|
[1] |
Wiring harness
|
D13-IPS, L=3100mm, For jack shaft with length of 1900-2000mm
|
| 1. |
22023243
|
[1] |
Wiring harness
|
D13-IPS, L=3500mm, For jack shaft with length of 2400-2500mm
|
| 1. |
22023244
|
[1] |
Wiring harness
|
D13-IPS, L=5500mm, Option
|
| 2. |
22390849
|
[1] |
Wiring harness
|
D4/D6-IPS, L=500mm, For jack shaft with length of 335mm
|
| 2. |
22390850
|
[1] |
Wiring harness
|
D4/D6-IPS, L=2500mm, For jack shaft with length of 570-1750mm
|
| 3. |
22732912
|
[1] |
Wiring harness
|
D8-IPS, L=1500mm, For jack shaft with length of 240mm
|
| 3. |
22732913
|
[1] |
Wiring harness
|
D8-IPS, L=3500mm, For jack shaft with length of 700-2000mm
|
| 3. |
22732914
|
[1] |
Wiring harness
|
D8-IPS, L=5500mm, Option
|
| 4. |
22478734
|
[1] |
Bracket
|
|
| 5. |
972399
|
[20] |
Six point socket scr
|
|
