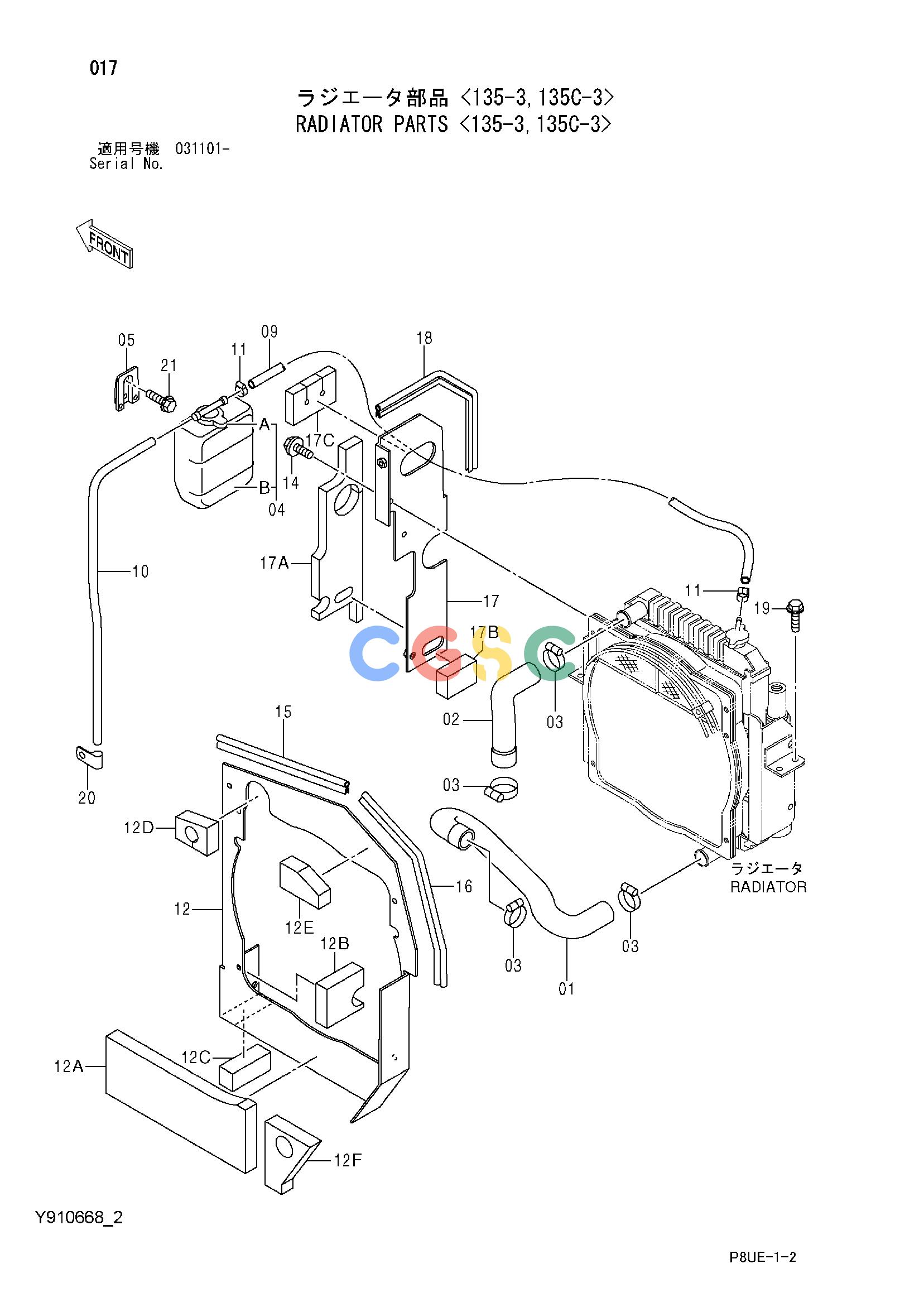

日立零件查询（CC135C-3A）RADIATOR PARTS <135-3,135C-3> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
741 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 01. | Y302059 | [1] | HOSE;WATER | |
| 02. | Y302060 | [1] | HOSE;WATER | |
| 03. | 4011675 | [4] | CLAMP;HOSE | |
| 04. | 4423576 | [1] | TANK;WATER | |
| 04A. | 4434454 | [1] | CAP | |
| 04B. | 4434455 | [1] | TANK;WATER | |
| 05. | 4367147 | [1] | PLATE | |
| 09. | Y415701 | [1] | HOSE;WATER | |
| 10. | 4305114 | [1] | HOSE;WATER | |
| 11. | 4397686 | [2] | CLAMP | |
| 12. | Y701117 | [1] | PLATE | |
| 12A. | Y415818 | [1] | RUBBER | |
| 12B. | Y415934 | [1] | RUBBER | |
| 12C. | Y415936 | [1] | RUBBER | |
| 12D. | Y415883 | [1] | RUBBER | |
| 12E. | Y415884 | [1] | RUBBER | |
| 12F. | Y415670 | [1] | RUBBER | |
| 14. | J260816 | [4] | BOLT;SEMS | |
| 14A. | J900816 | [1] | BOLT | |
| 14B. | A590108 | [1] | WASHER;PLANE | |
| 15. | Y415774 | [1] | TRIM;SEAL | |
| 16. | Y415775 | [1] | TRIM;SEAL | |
| 17. | Y802651 | [1] | PLATE | |
| 17A. | Y415668 | [1] | RUBBER | |
| 17B. | Y416067 | [1] | RUBBER | |
| 17C. | Y415950 | [1] | RUBBER | |
| 18. | Y416085 | [1] | TRIM;SEAL | |
| 19. | J271030 | [4] | BOLT;SEMS | |
| 19A. | J901030 | [1] | BOLT | |
| 19B. | J222010 | [1] | WASHER | |
| 20. | 4190275 | [1] | CLIP | |
| 21. | J260612 | [2] | BOLT;SEMS | |
| 21A. | J900612 | [1] | BOLT | |
| 21B. | A590106 | [1] | WASHER;PLANE | |
