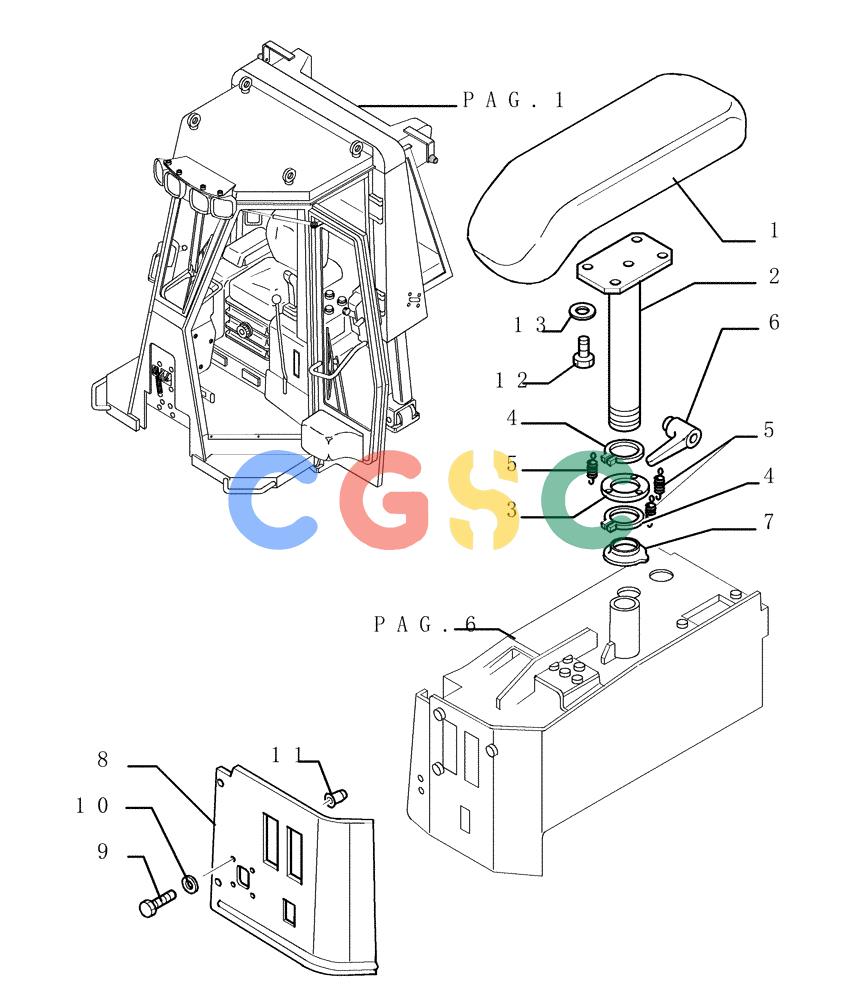

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[20]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
416 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76067361 | [1] | ARMREST | LEC |
| 2. | 76067362 | [1] | SUPPORT | LEC- RIGHT ARMREST |
| 3. | 76067318 | [1] | PLATE | LEC |
| 4. | 11069476 | [2] | SNAP RING,M52, Ext | LEC |
| 5. | 71490904 | [3] | SPRING | LEC |
| 6. | 76067236 | [1] | HANDLE | LEC |
| 7. | 76067464 | [2] | SEAL | LEC |
| 8. | 76067346 | [1] | SOFT TRIM | LEC- FRONT |
| 9. | 79105220 | [4] | SCREW,Phillips Drive, Oval HD, M6 x 20mm | IMO |
| 10. | 76067309 | [4] | CUP WASHER | LECNylon |
| 11. | 15629711 | [7] | THREADED INSERT | BURM6 x 9.5 |
| 13. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 12. | 16043224 | [4] | BOLT,Hex, M8 x 16mm, Cl 8.8 | NH |
