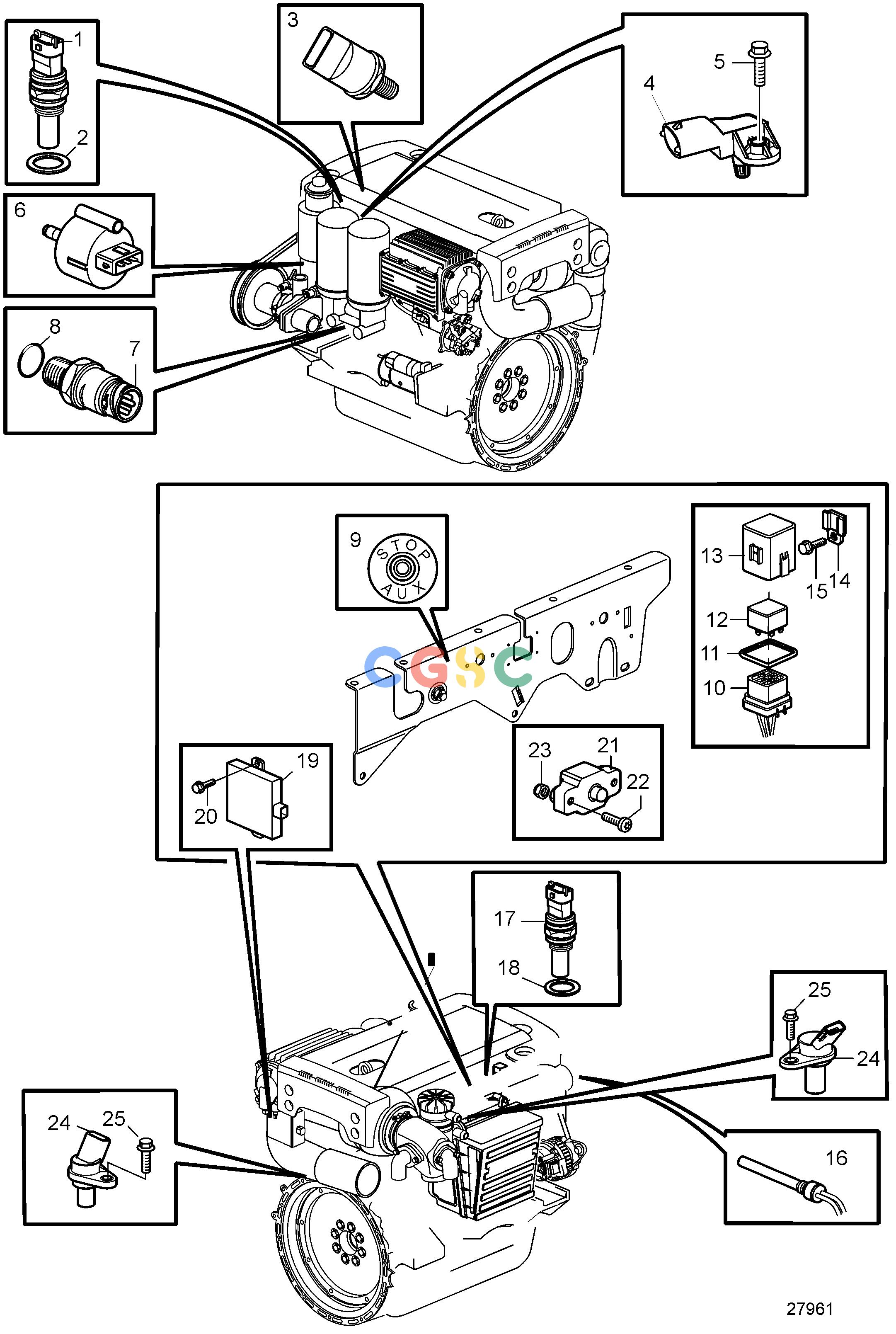

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FElectrical SystemContacts and SensorsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
161 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
1624368
|
[1] |
Sensor, fuel
|
|
| 2. |
11996
|
[1] |
Gasket
|
|
| 3. |
3884352
|
[1] |
Pressure sensor
|
Rail
|
| 4. |
21385453
|
[1] |
Pressure sensor, charge pressure/temperature
|
|
| 5. |
984725
|
[1] |
Flange screw
|
|
| 6. |
3808616
|
[1] |
Sensor
|
Installation instruction included.
|
| 7. |
21634021
|
[1] |
Pressure sensor
|
|
| 8. |
968559
|
[1] |
O-ring
|
|
| 9. |
828584
|
[1] |
Toggle switch
|
|
| 10. |
3587172
|
[1] |
Relay socket
|
|
| 11. |
|
|
|
|
| 12. |
21400091
|
[1] |
Relay
|
12V
|
| 12. |
3171420
|
[1] |
Relay
|
24V
|
| 13. |
21494263
|
[1] |
Relay box
|
|
| 14. |
21492847
|
[1] |
Relay bracket
|
|
| 15. |
948663
|
[1] |
Flange screw
|
|
| 16. |
3547710
|
[1] |
Level guard
|
|
| 17. |
1624368
|
[1] |
Sensor
|
|
| 18. |
11996
|
[1] |
Gasket
|
|
| 19. |
21959663
|
[1] |
Voltage converter
|
|
| 20. |
946501
|
[3] |
Flange screw
|
|
| 21. |
21445306
|
[1] |
Fuse
|
|
| 22. |
969408
|
[2] |
Six point socket scr
|
|
| 23. |
963104
|
[2] |
Lock nut
|
|
| 24. |
21426987
|
[1] |
Speed monitor
|
|
| 25. |
946544
|
[1] |
Flange screw
|
|
