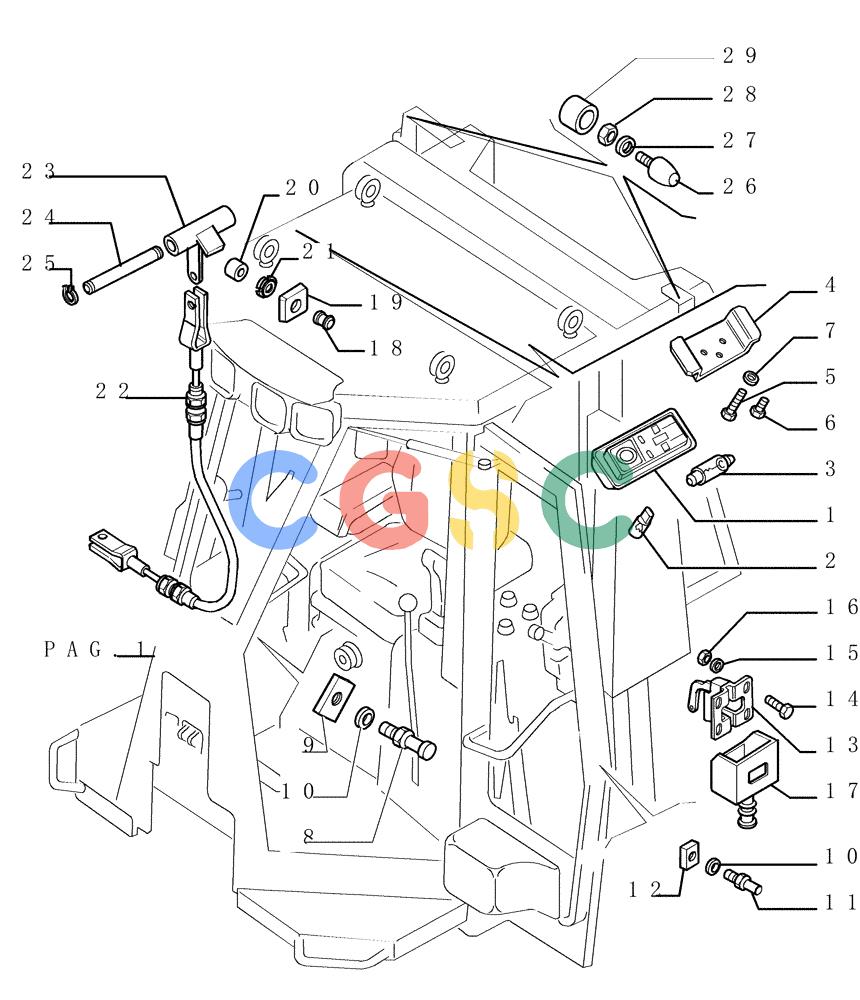

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[23]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76045521 | [2] | CEILING LAMP | LEC Superseded by part number: 76048462, 5141635, 76048463 |
| 2. | 76048462 | [2] | BULB | LEC5W-24V |
| 3. | 76048463 | [2] | BULB | LEC5W-24V |
| 4. | 76045522 | [2] | BRACKET | LEC |
| 5. | 13272617 | [4] | SCREW,Pozidriv Pan Hd, M4 x 25mm, Cl 5.8 | LEC |
| 6. | 13271911 | [2] | SCREW,Pozidriv Pan Hd, M4 x 10mm, Cl 5.8, Full Thd | LEC Superseded by part number: 13271914 |
| 7. | 14497731 | [6] | WASHER,4.3mm ID x 8mm OD x 0.8mm Thk | LEC4,3X8X0,8 |
| 8. | 76067263 | [2] | PIN | LEC |
| 9. | 76067264 | [2] | PLATE | LEC |
| 10. | 14496731 | [4] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 11. | 76043511 | [2] | PIN | LEC Superseded by part number: 1482300 |
| 12. | 76067753 | [2] | PLATE | LEC |
| 13. | 76067754 | [2] | LATCH | LEC |
| 14. | 10902424 | [8] | SCREW,Hex, M6 x 20mm, Cl 8.8, Full Thd | TTF Superseded by part number: |
| 15. | 76067755 | [16] | WASHER,M6 | LEC |
| 16. | 15896211 | [8] | NUT,M6, Cl 8 | JES Superseded by part number: 17037821 |
| 17. | 4227179 | [2] | BOOT | LEC |
| 18. | 9471086 | [2] | BUTTON | LEC- HANDLE |
| 19. | 71487113 | [2] | SHIELD | LEC |
| 20. | 76067658 | [2] | SPACER | LEC |
| 21. | 71488179 | [2] | RING NUT | LEC |
| 22. | 76067265 | [2] | FLEXIBLE CONTROL | LEC |
| 23. | 76080697 | [2] | TRIP ARM | LEC |
| 24. | 76067756 | [2] | PIN | LEC |
| 25. | 11087676 | [4] | CIRCLIP,M5 | TTF Superseded by part number: |
| 26. | 71416419 | [2] | STOP | LEC- LOWER |
| 27. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 28. | 11701714 | [2] | NUT | LEC10 Superseded by part number: 17038131 |
| 29. | 71480911 | [2] | DUST CAP | LEC |
