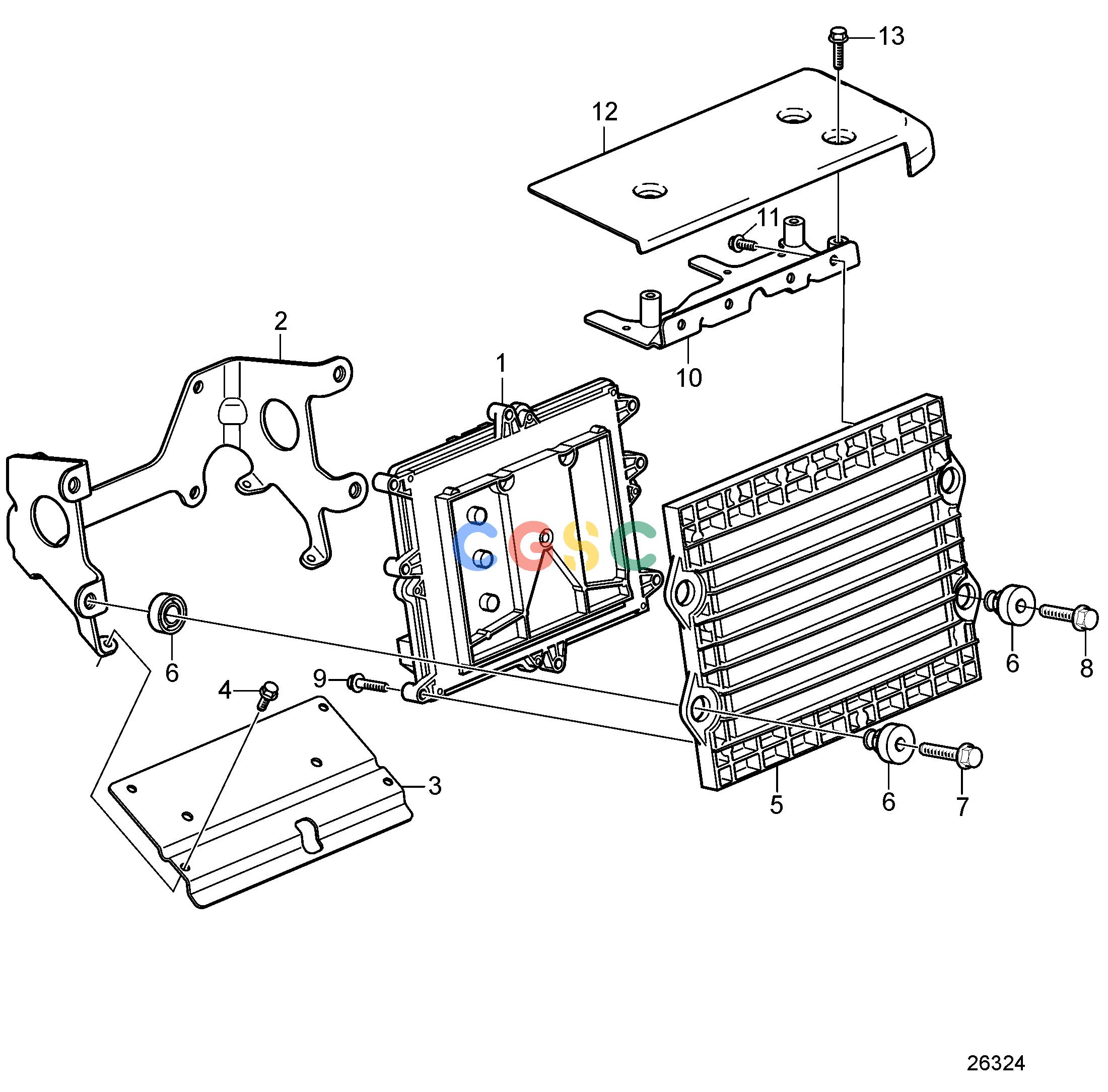

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FElectrical SystemControl Unit, ECUEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
429 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
881810
|
[1] |
Control unit, not programmed
|
|
| 1. |
3586269
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3586268
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
21712181
|
[1] |
Bracket
|
|
| 3. |
21720574
|
[1] |
Heat shield
|
|
| 4. |
946501
|
[4] |
Flange screw
|
|
| 5. |
3584080
|
[1] |
Support
|
|
| 6. |
3842049
|
[4] |
Damping element
|
|
| 7. |
948217
|
[2] |
Flange screw
|
|
| 8. |
947760
|
[2] |
Flange screw
|
|
| 9. |
949556
|
[8] |
Flange screw
|
|
| 10. |
21717702
|
[1] |
Bracket
|
|
| 11. |
967949
|
[4] |
Flange screw
|
|
| 12. |
21721137
|
[1] |
Cover
|
|
| 13. |
946934
|
[3] |
Flange screw
|
|
