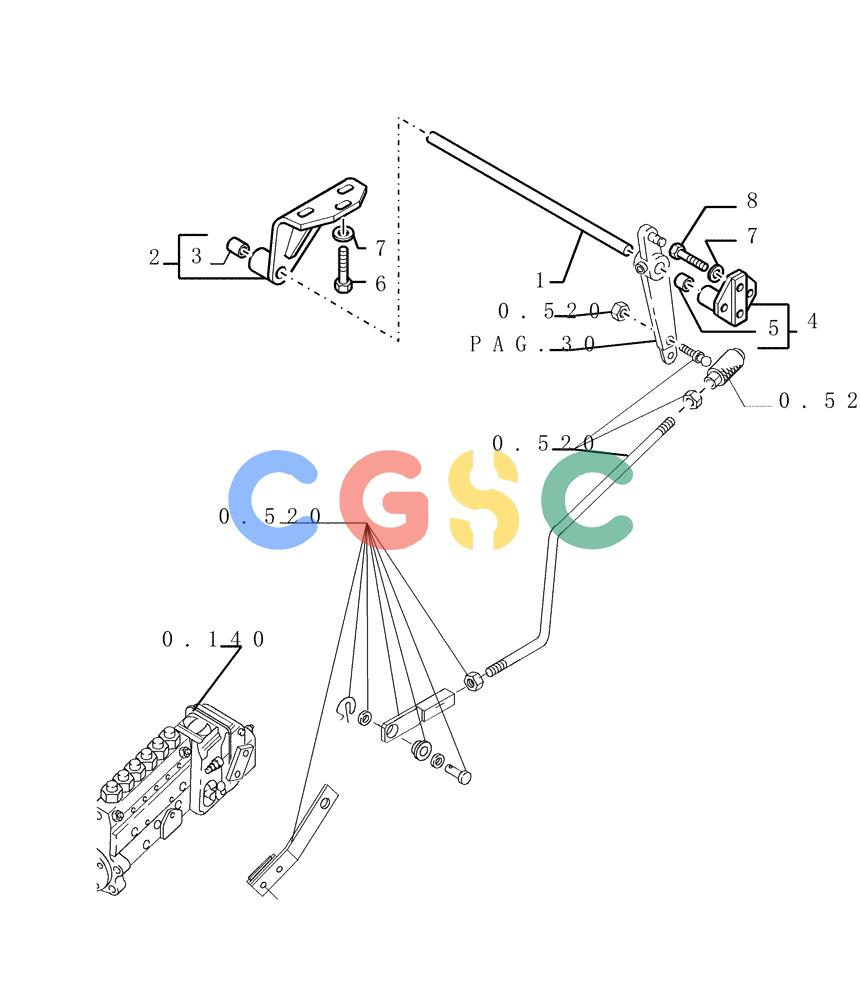

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.652[31]) - ROPS CAB - COMPONENTS - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
904 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76046984 | [1] | ROD | LEC- LOWER |
| 2. | 76046985 | [1] | SUPPORT | LEC- RIGHT ASSY |
| 3. | 79060774 | [1] | BUSHING | LEC |
| 4. | 76046986 | [1] | SUPPORT | LEC- LEFT ASSY |
| 6. | 11106031 | [3] | BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9 | LEC |
| 7. | 14496631 | [5] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 8. | 11106231 | [2] | BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9 | LEC |
