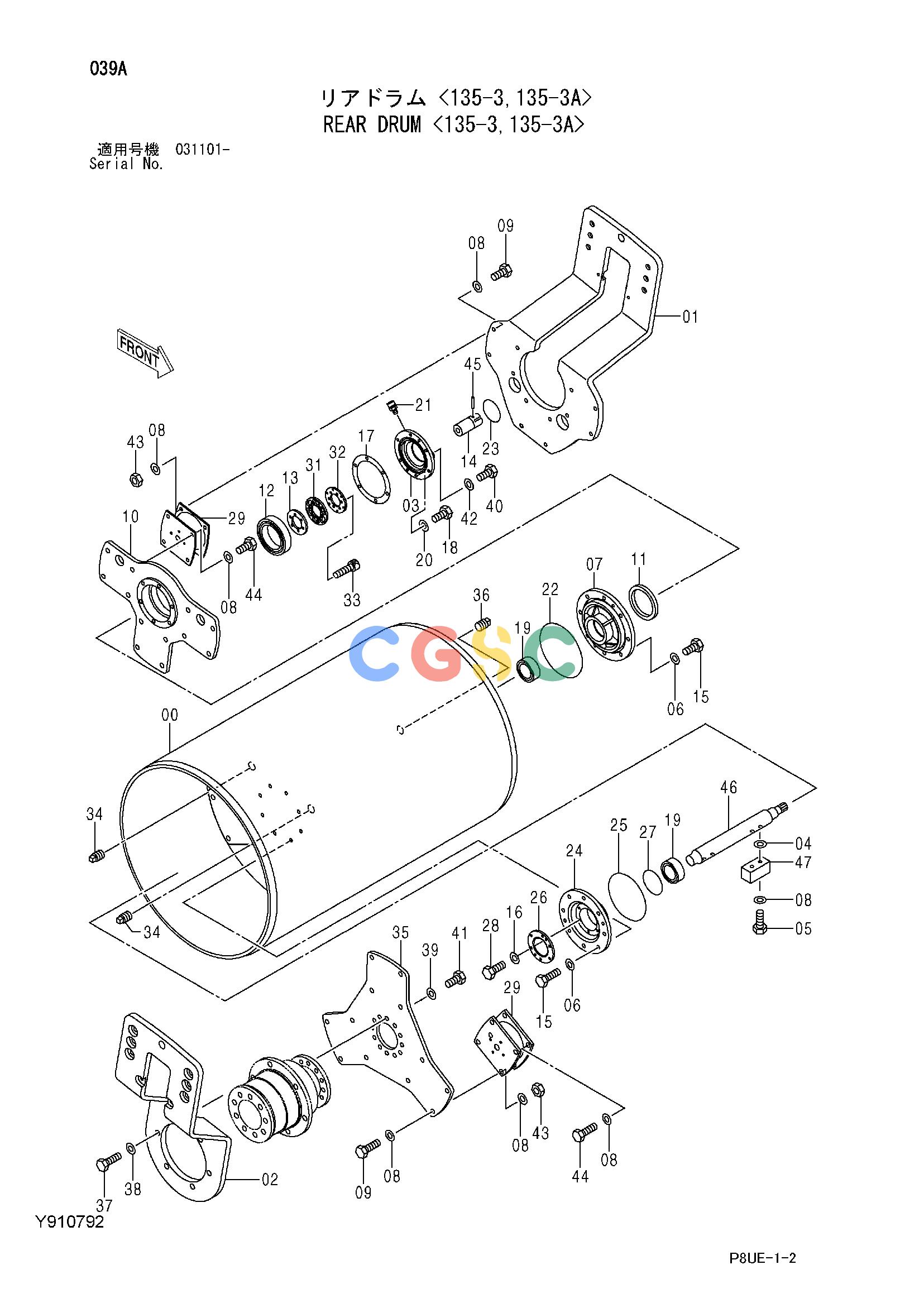

日立零件查询（CC135C-3A）REAR DRUM <135-3,135-3A> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
744 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y600277 | [1] | DRUM | |
| 01. | Y100846 | [1] | PLATE (L) | |
| 02. | Y100847 | [1] | PLATE (R) | |
| 03. | Y302073 | [1] | MOTOR FRANGE | |
| 04. | J222020 | [4] | WASHER | |
| 05. | J921280 | [4] | BOLT | |
| 06. | Y405697 | [16] | WASHER;CONICAL | |
| 07. | Y200132 | [1] | HOUSING;BRG. | |
| 08. | J222012 | [76] | WASHER | |
| 09. | J921250 | [24] | BOLT | |
| 10. | Y700657 | [1] | HOUSING;BRG. | |
| 11. | Y405699 | [1] | SEAL;OIL | |
| 12. | 954804 | [1] | BRG.;BALL | |
| 13. | Y405700 | [1] | COVER;BRG. | |
| 14. | Y800954 | [1] | COUPLING | |
| 15. | J921245 | [16] | BOLT | |
| 16. | Y405955 | [6] | WASHER;CONICAL | |
| 17. | Y405701 | [1] | PACKING | |
| 18. | J921035 | [6] | BOLT | |
| 19. | Y413027 | [2] | BRG. | |
| 20. | Y405956 | [6] | WASHER;CONICAL | |
| 21. | Y405702 | [1] | BREATHER;AIR | |
| 22. | A811210 | [1] | O-RING | |
| 23. | A811085 | [1] | O-RING | |
| 24. | Y300774 | [1] | HOUSING;BRG. | |
| 25. | A811180 | [1] | O-RING | |
| 26. | Y300775 | [1] | COVER;BRG. | |
| 27. | A811090 | [1] | O-RING | |
| 28. | J900820 | [6] | BOLT | |
| 29. | Y406015 | [6] | RUBBER <135-3> | |
| 29. | Y416352 | [6] | RUBBER <135-3,135-3A> | |
| 31. | Y413213 | [1] | PLATE | |
| 32. | Y413214 | [1] | PLATE | |
| 33. | J780830 | [6] | BOLT;SOCKET | |
| 34. | 94-2026 | [2] | PLUG | |
| 35. | Y301753 | [1] | PLATE | |
| 36. | 94-2023 | [1] | PLUG | |
| 37. | J921645 | [6] | BOLT | |
| 38. | J222016 | [6] | WASHER | |
| 39. | J222014 | [12] | WASHER | |
| 40. | J781025 | [2] | BOLT;SOCKET | |
| 41. | J921445 | [12] | BOLT | |
| 42. | J222010 | [2] | WASHER | |
| 43. | J950012 | [24] | NUT | |
| 44. | J921225 | [24] | BOLT | |
| 45. | Y407746 | [1] | PIN;SPRING | |
| 46. | Y302000 | [1] | SHAFT | |
| 47. | Y414027 | [2] | WEIGHT | |
