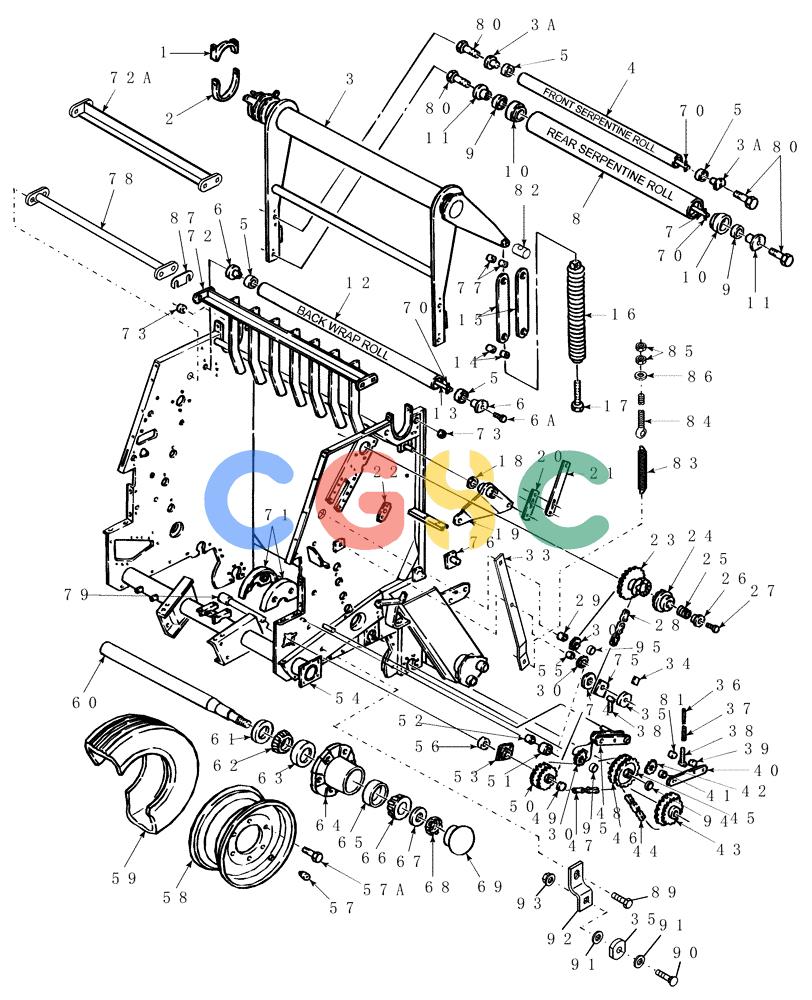

| 1. |
86636552
|
[2] |
BEARING CAP
|
NH
|
| 2. |
9617265
|
[2] |
BAND
|
NH
|
| 3. |
86637225
|
[1] |
LIFT ARM
|
NH
Take Up
|
| . . |
495-11053
|
[8] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| . . |
832-46412
|
[4] |
NUT,M12 x 1.75, Cl 8
|
CAS
Superseded by part number: 100038
|
| . . |
814-12045
|
[4] |
BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8
|
CAS
Superseded by part number: 9628065
|
| . . |
495-11106
|
[2] |
WASHER,1", SAE
|
CAS
Superseded by part number: 87367
|
| . . |
432-1228
|
[2] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 3A. |
86516321
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87654791
|
| 4. |
9842174
|
[1] |
ROLLER
|
NH
3-1/2", Includes: (2) 9845576 Bearings Superseded by part number: 84600584
|
| 5. |
8050825
|
[4] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
Superseded by part number: F82059
|
| 6. |
86521602
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 6A. |
627-12030
|
[1] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd
|
IH
Superseded by part number: 43260
|
| 7. |
9608250
|
[2] |
SHAFT
|
NH
|
| 8. |
86500664
|
[1] |
ROLLER
|
NH
4-1/2", Includes: Tube, (2) Bearings & (2) Housings, Must use Shaft 9608250 Superseded by part number: 84601409
|
| 10. |
86500662
|
[2] |
BEARING ASSY
|
NH
Includes: Bearing Ref. 9
|
| 11. |
86516322
|
[2] |
SUPPORT
|
NH
Superseded by part number: 87654792
|
| 12. |
9842173
|
[2] |
ROLLER
|
NH
3-1/2", Back Wrap, Steel, Includes: (2) Ref. 5 Superseded by part number: 84600588
|
| 12. |
86536001
|
[1] |
ROLLER
|
NH
3-1/2", Back Wrap, Rubber, Includes: (2) Ref. 5
|
| 13. |
9608117
|
[2] |
SHAFT
|
NH
Superseded by part number: 87023401
|
| . . |
614-12030
|
[2] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| 14. |
86636659
|
[2] |
SPACER,10.28mm ID x 15.85mm OD x 21.84mm L
|
NH
|
| 15. |
86637229
|
[4] |
LINK,489mm L
|
NH
|
| . . |
814-10050
|
[2] |
BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 120069, 47110242
|
| . . |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 16. |
NSS
|
[2] |
NOT SOLD SEPARAT
|
CON
Spring, Refer Fig. 006
|
| 17. |
633038
|
[2] |
THREADED ROD,3/4" - 10 x 11-1/2" L
|
NH
|
| . . |
425-1012
|
[2] |
NUT,3/4"-10, G5
|
CAS
Superseded by part number: 280954
|
| . . |
495-21081
|
[2] |
WASHER,3/4"
|
CAS
Superseded by part number: 86511191
|
| 18. |
134463
|
[1] |
WASHER,.030" Thk
|
NH
|
| . . |
432-1224
|
[1] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 19. |
86637016
|
[1] |
LINK CONROD
|
NH
|
| . . |
9822495
|
[2] |
BUSHING,25.5mm ID x 31.82mm OD x 19.5mm L
|
NH
|
| . . |
9805684
|
[1] |
SPACER
|
NH
|
| . . |
86636763
|
[1] |
HUB
|
NH
Chain Connector, 4mm ID x 12.7mm
|
| 20. |
86636886
|
[1] |
BAR
|
NH
|
| . . |
811-10030
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| . . |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| . . |
768703
|
[1] |
BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L
|
NH
|
| . . |
825-1410
|
[1] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| . . |
811-12030
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 120044
|
| . . |
140046
|
[1] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| . . |
829-1412
|
[1] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 21. |
86636884
|
[1] |
BAR
|
NH
|
| . . |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| . . |
814-10040
|
[1] |
BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 120112
|
| . . |
65319
|
[1] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 22. |
86636891
|
[1] |
PLATE
|
NH
|
| . . |
412093
|
[2] |
SELF-TAP SCREW
|
NH
M6 x 1 x 12
|
| 23. |
87032323
|
[1] |
SPROCKET
|
PA
Sprocket, 22T
|
| . . |
86601368
|
[2] |
BUSHING
|
NH
Superseded by part number: 86977429
|
| . . |
80717
|
[1] |
LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg
|
NH
|
| . . |
9808110
|
[2] |
WASHER,46mm ID x 60mm OD x 1.64mm Thk
|
NH
|
| . . |
100-11162
|
[1] |
SNAP RING,#162, Ext
|
CAS
Superseded by part number: 45440
|
| 24. |
87028608
|
[1] |
CLUTCH
|
NH
Half
|
| 25. |
86640119
|
[1] |
SPRING,Compression, 2.438" OD x 4.5" L
|
NH
|
| 26. |
9829364
|
[1] |
CAP COVER
|
NH
End
|
| 27. |
9849862
|
[1] |
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
|
NH
HH, Drilled, G5, 1/2"-13 x 1-1/2"
|
| 28. |
9804060
|
[1] |
CHAIN,80, 158 Links x 25.4mm = 4013.2mm
|
NH
Roller, #80, Riveted Type, 158 Pitches, Includes: (1) Connector Link 140776, Cotter Pin Type & (1) Connector Link 9620569, 80K
|
| 29. |
86634530
|
[1] |
HUB
|
NH
|
| 30. |
NS
|
[3] |
NOT SERVICED
|
BAS
SPROCKET 13T, Plastic, Production Only {87050058}
|
| 30. |
66614
|
[3] |
SPROCKET,RC80, 13T
|
NH
13T, Steel, Service Only, Includes: Bearing 144819C91 Superseded by part number: 84401598
|
| . . |
434-1044
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 3/4", Gr 5
|
NH
Superseded by part number: 280560
|
| . . |
280656
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 3 1/4", Gr 5
|
NH
|
| . . |
492-11062
|
[2] |
BEARING WASHER,5/8"
|
CAS
Superseded by part number: 86729275
|
| . . |
825-1416
|
[2] |
NUT,M16, Cl 8
|
CAS
Superseded by part number: 100020
|
| . . |
27367
|
[1] |
WASHER,16.67mm ID x 31.75mm OD x 3.43mm Thk
|
NH
|
| . . |
614-16040
|
[2] |
BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86509867
|
| . . |
280667
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5
|
NH
|
| . . |
495-11066
|
[1] |
WASHER,5/8", SAE
|
CAS
Superseded by part number: 87365
|
| 33. |
86624825
|
[1] |
ARM
|
NH
|
| 34. |
86636768
|
[2] |
PLATE
|
NH
|
| . . |
811-12040
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 328754
|
| 35. |
86584050
|
[2] |
IDLER
|
NH
Plastic Superseded by part number: 87030996
|
| . . |
495-21069
|
[1] |
WASHER,5/8"
|
CAS
Superseded by part number: 80299
|
| . . |
606271
|
[1] |
SPACER
|
NH
|
| . . |
433-848
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 3", Gr 5
|
CAS
Superseded by part number: 80280818
|
| . . |
495-21056
|
[6] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 36. |
86637258
|
[2] |
TUBE,19.05 mm OD x 228.60 mm L
|
NH
|
| 37. |
86618710
|
[3] |
SPRING,1-3/8" OD x 8-5/8" L
|
NH
Compression
|
| 38. |
86637254
|
[2] |
ROD
|
NH
|
| . . |
433-828
|
[1] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5
|
CAS
Superseded by part number: 88530
|
| . . |
614-12040
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 39. |
76615
|
[1] |
SPACER
|
NH
Superseded by part number: 87010766
|
| . . |
27318
|
[1] |
WASHER,26mm ID x 51mm OD x 1.5mm Thk
|
NH
.060" Thick
|
| . . |
33298
|
[1] |
WASHER,16.7mm ID x 41.3mm OD x 4.78mm Thk
|
NH
|
| 40. |
86637277
|
[1] |
ARM
|
NH
|
| 41. |
149261C91
|
[1] |
BALL BEARING,16mm ID x 40mm OD x 18mm W
|
IH
|
| 42. |
86627639
|
[1] |
SPROCKET,15T
|
NH
15T
|
| 43. |
86637249
|
[1] |
DRIVING SPROCKET
|
NH
Double 35T/35T
|
| 44. |
86518073
|
[1] |
CHAIN,60H, 82 Links x 19.05mm = 1562.1mm
|
NH
#60, 82 Pitches, Drive
|
| 45. |
86637392
|
[1] |
DRIVEN SPROCKET
|
NH
20T, Includes: 46962 Bushing
|
| . . |
46962
|
[1] |
BUSHING,2" ID x 2.13" OD x 1.25" L
|
NH
|
| . . |
66849
|
[1] |
WASHER,51.59mm ID x 76.2mm OD x 3.17mm Thk
|
NH
Nylon, 2"
|
| 46. |
86637256
|
[1] |
DRIVING SPROCKET
|
NH
Includes: Ref. 94
|
| 47. |
9804061
|
[1] |
CHAIN,80, 84 Links x 25.4mm = 2133.6mm
|
NH
#80, 84 Pitches, Includes: (1) Connecting Link, Semi-press Fit, Cotter Pin Type
|
| . . |
9620569
|
[1] |
CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L
|
NH
80K Superseded by part number: 241-1418
|
| 48. |
86636671
|
[1] |
PLATE
|
NH
|
| . . |
249100
|
[1] |
WASHER,0.78" ID x 1.25" OD x 0.06" Thk
|
NH
Hardened
|
| . . |
219-87
|
[1] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| . . |
614-10025
|
[1] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8
|
CAS
Superseded by part number: 11106231
|
| . . |
492-11044
|
[1] |
LOCK WASHER,7/16"
|
CAS
Superseded by part number: 81547
|
| 49. |
694478
|
[4] |
WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk
|
NH
Hardened, 1/2"
|
| . . |
614-10035
|
[1] |
BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 9706704
|
| 50. |
86637248
|
[1] |
DRIVEN SPROCKET
|
NH
18T
|
| . . |
86636633
|
[4] |
WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk
|
NH
|
| 51. |
86514717
|
[2] |
IDLER WHEEL
|
NH
|
| . . |
814-12090
|
[1] |
BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8
|
CAS
Superseded by part number: 86508581
|
| . . |
433-844
|
[2] |
CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 3/4", Gr 5
|
CAS
Superseded by part number: 88955
|
| 52. |
86636635
|
[1] |
SPACER
|
NH
|
| 53. |
9807783
|
[1] |
BEARING ASSY,3.238" ID x 3.73" OD x 1"
|
NH
Includes: Bearing which is NSS
|
| 54. |
86631521
|
[1] |
FRAME ASSY
|
NH
|
| 55. |
681659
|
[1] |
SPACER
|
NH
|
| 56. |
131377
|
[1] |
COLLAR
|
NH
& Ring
|
| 57. |
387897R91
|
[2] |
VALVE STEM
|
IH
Superseded by part number: 196033
|
| 57A. |
198056
|
[12] |
WHEEL BOLT,1/2" - 20 x 1.031"
|
NH
G5
|
| 58. |
86616344
|
[2] |
WHEEL
|
NH
Superseded by part number: 87047831
|
| 59. |
621531
|
[2] |
TYRE/TIRE
|
NH
14L-16.1 - 8 Ply
|
| 60. |
9617263
|
[2] |
SPINDLE
|
NH
|
| . . |
9802018
|
[2] |
SPACER
|
NH
|
| . . |
814-16150
|
[4] |
BOLT,Hex, M16 x 2 x 150mm, Cl 8.8
|
IH
Superseded by part number: 362573
|
| 61. |
788367
|
[2] |
SEAL
|
NH
Superseded by part number: 62610C1
|
| 62. |
G15215
|
[2] |
ROLLER BEARING
|
CAS
Tapered, Roller Superseded by part number: 86512027
|
| 63. |
619387R1
|
[2] |
BEARING CUP
|
IH
Superseded by part number: 86512027
|
| 64. |
86635391
|
[2] |
HUB
|
NH
|
| 65. |
H433209
|
[2] |
BEARING CUP
|
CAS
Superseded by part number: 175508
|
| 66. |
536053R1
|
[2] |
ROLLER BEARING,1.3772" ID x 2.3622" OD x 0.625"
|
IH
Superseded by part number: 175507
|
| 67. |
116150
|
[2] |
WASHER,23.81mm ID x 50.8mm OD x 4.76mm Thk
|
NH
7/8"
|
| 68. |
425-1314
|
[2] |
SLOTTED NUT,7/8"-14, G5
|
CAS
Superseded by part number: 84151573
|
| . . |
432-1220
|
[2] |
COTTER PIN,3/16" x 1 1/4"
|
CAS
Superseded by part number: 87398
|
| 69. |
249128
|
[2] |
HUB CAP
|
NH
|
| 70. |
838-5526
|
[10] |
LOCK PIN,M5 x 26, Slotted
|
CAS
Superseded by part number: 82848074, 130045
|
| 71. |
86637198
|
[2] |
HALF-DISC
|
NH
|
| . . |
614-10020
|
[4] |
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 43138
|
| . . |
492-11038
|
[4] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 72. |
86977995
|
[1] |
GUIDE
|
NH
Belt, Front, Optional Superseded by part number: 84329860, 84326050
|
| 72A. |
86636897
|
[1] |
TUBE,1562 mm L
|
NH
Angle
|
| 73. |
86514470
|
[2] |
BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L
|
NH
(1) used in each corner of Main Frame
|
| . . |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 74. |
39856
|
[1] |
WASHER,13.49mm ID x 38.1mm OD x 6.35mm Thk
|
NH
1/2"
|
| 75. |
9845608
|
[1] |
BLOCK
|
NH
|
| 76. |
86636753
|
[1] |
PIN
|
NH
Tailgate Latch Pivot
|
| 77. |
32406
|
[2] |
SPACER,25.9mm ID x 31.5mm OD x 16.8mm L
|
NH
|
| 79. |
86636751
|
[1] |
SHAFT
|
NH
|
| 80. |
86627635
|
[4] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9
|
NH
Cap, HH, CL 8.8, M12 x 30, 6.5 Head Height
|
| 81. |
86637291
|
[2] |
SPACER
|
NH
|
| 83. |
86512547
|
[1] |
SPRING,Extension, 1.94" OD x 13 - 1/8" L
|
NH
Extension
|
| 84. |
183356
|
[1] |
EYEBOLT,3/8" - 16 x 10" L
|
NH
G2, 3/8"-16 x 10-1/8"
|
| 85. |
425-106
|
[2] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 87. |
86575783
|
[1] |
SHIM
|
NH
|
| 89. |
905-10025
|
[1] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| 92. |
86637304
|
[1] |
BRACKET
|
NH
|
| 93. |
232-4148
|
[1] |
NUT,1/2"-13, GC
|
CAS
Superseded by part number: 86992215
|
