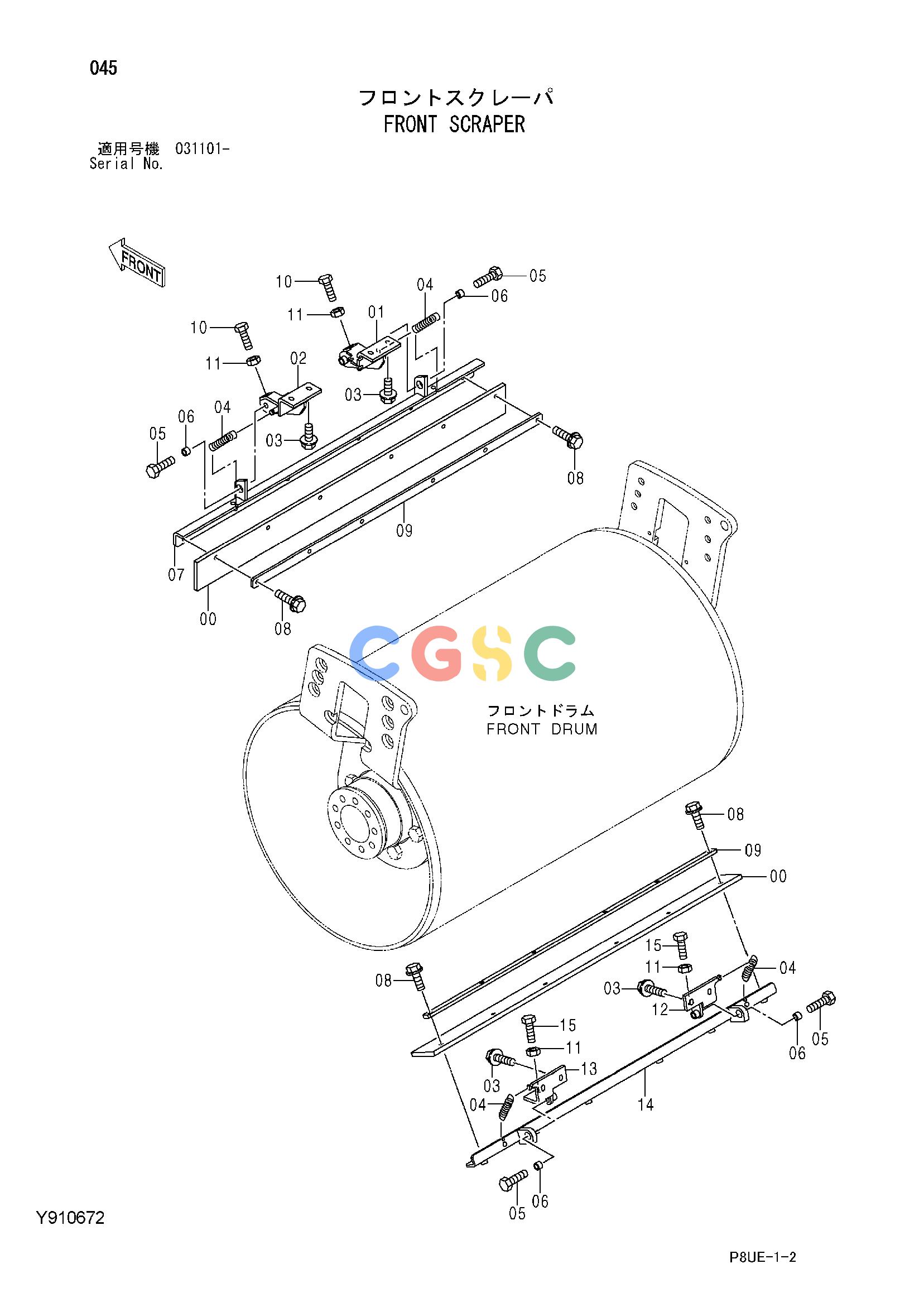

日立零件查询（CC135C-3A）FRONT SCRAPER Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y415650 | [2] | BLADE | |
| 01. | Y802623 | [1] | BRACKET | |
| 02. | Y802624 | [1] | BRACKET | |
| 03. | J271020 | [8] | BOLT;SEMS | |
| 03A. | J901020 | [1] | BOLT | |
| 03B. | J222010 | [1] | WASHER | |
| 04. | Y300759 | [4] | SPRING | |
| 05. | J901245 | [4] | BOLT | |
| 06. | Y405015 | [4] | SPACER <135-3> | |
| 06. | Y416361 | [4] | SPACER <135-3> | |
| 06. | Y405015 | [4] | SPACER <135C-3> | |
| 06. | Y416361 | [4] | SPACER <135C-3> | |
| 06. | Y416361 | [4] | SPACER <135-3A,135C-3A> | |
| 07. | Y802644 | [1] | BRACKET | |
| 08. | J271045 | [12] | BOLT;SEMS | |
| 08A. | J901045 | [1] | BOLT | |
| 08B. | J222010 | [1] | WASHER | |
| 09. | Y415652 | [2] | PLATE | |
| 10. | J901035 | [2] | BOLT | |
| 11. | J950010 | [4] | NUT | |
| 12. | Y802584 | [1] | BRACKET | |
| 13. | Y802585 | [1] | BRACKET | |
| 14. | Y802586 | [1] | BRACKET | |
| 15. | M261040 | [2] | BOLT | |
