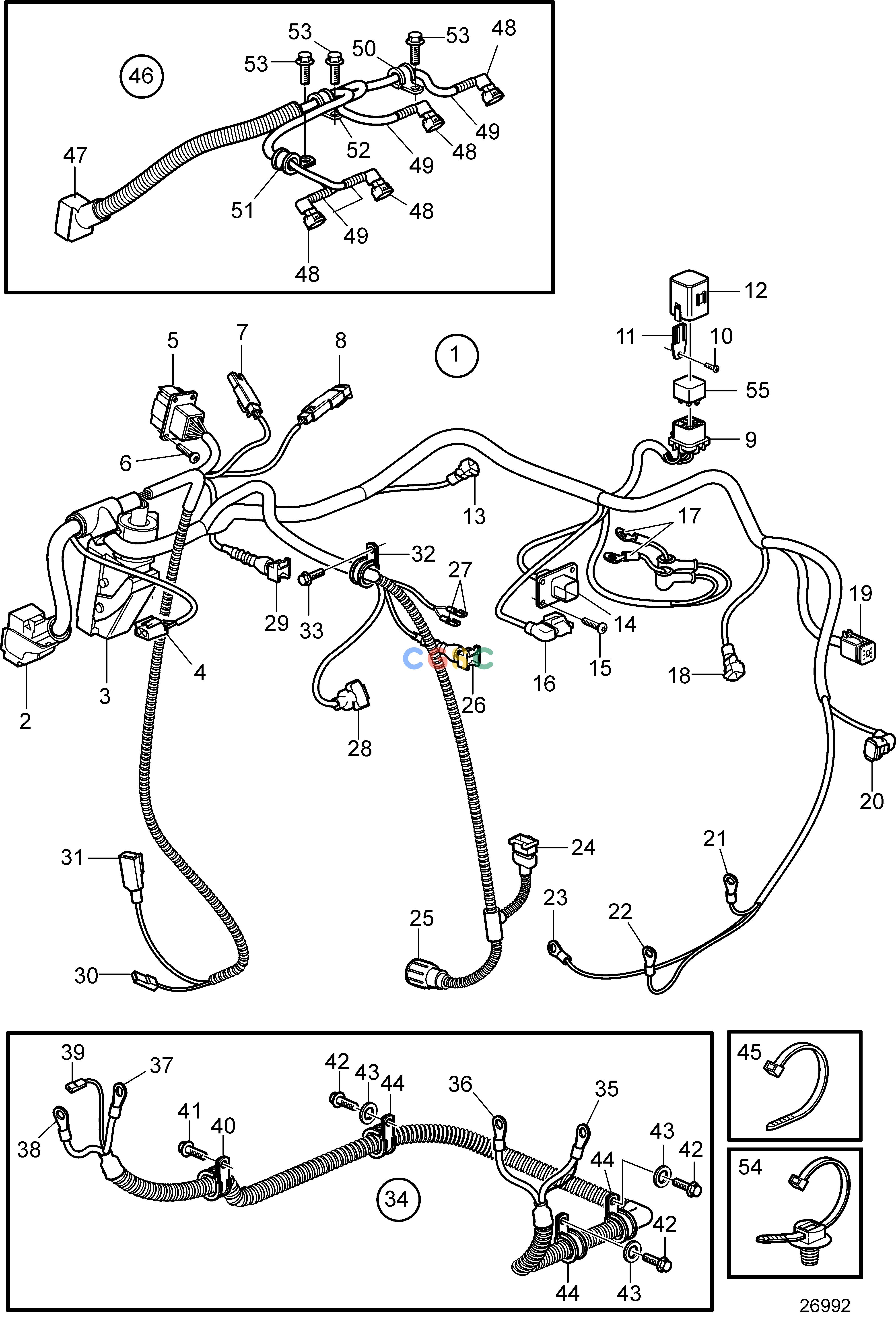

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FElectrical SystemElectrical SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
480 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21859347
|
[1] |
Wiring harness
|
|
| 2. |
874565
|
[1] |
Coupling piece, 36-pole
|
EDC-unit
|
| 3. |
874564
|
[1] |
Coupling piece, 89-pole
|
EDC-unit
|
| 4. |
970753
|
[1] |
Housing
|
|
| 5. |
874432
|
[1] |
Tab housing
|
|
| 6. |
968476
|
[4] |
Flange screw
|
|
| 7. |
874954
|
[1] |
Housing
|
|
| 8. |
|
|
|
|
| 9. |
3587172
|
[1] |
Relay socket
|
|
| 10. |
996061
|
[1] |
Flange screw
|
|
| 11. |
21492847
|
[1] |
Relay bracket
|
|
| 12. |
21494263
|
[1] |
Relay box
|
|
| 13. |
874368
|
[1] |
Receptacle housing, pressure/temp
|
2-pole
|
| 14. |
992330
|
[1] |
Housing
|
|
| 15. |
968476
|
[4] |
Flange screw
|
|
| 16. |
874456
|
[1] |
Receptacle housing
|
4-pole
|
| 17. |
|
|
|
|
| 18. |
874368
|
[1] |
Receptacle housing
|
|
| 19. |
874957
|
[1] |
Housing
|
|
| 20. |
874368
|
[1] |
Receptacle housing
|
2-pole
|
| 21. |
978969
|
[1] |
Cable terminal
|
|
| 22. |
978970
|
[1] |
Cable terminal
|
|
| 23. |
970790
|
[1] |
Cable terminal, alternator
|
|
| 24. |
977929
|
[1] |
Housing
|
|
| 25. |
3589939
|
[1] |
Connector
|
Replaced Part, Se Section 41414
|
| 26. |
976256
|
[1] |
Housing
|
|
| 27. |
973121
|
[2] |
Cable terminal
|
|
| 28. |
874455
|
[1] |
Receptacle housing
|
|
| 29. |
976256
|
[1] |
Housing
|
|
| 30. |
949597
|
[1] |
Housing, temperature
|
|
| 31. |
1624477
|
[1] |
Housing
|
|
| 32. |
952629
|
[1] |
Clamp, temperature
|
|
| 33. |
946501
|
[1] |
Flange screw
|
|
| 34. |
21736439
|
[3] |
Wiring harness
|
|
| 35. |
940337
|
[1] |
Cable terminal
|
|
| 36. |
940336
|
[1] |
Cable terminal
|
|
| 37. |
976478
|
[1] |
Cable terminal
|
|
| 38. |
976477
|
[1] |
Cable terminal
|
|
| 39. |
949597
|
[1] |
Housing, alternator
|
|
| 40. |
952634
|
[1] |
Clamp
|
|
| 41. |
946501
|
[1] |
Flange screw, alternator
|
|
| 42. |
946440
|
[3] |
Flange screw, starter motor
|
|
| 43. |
955894
|
[3] |
Washer, starter motor
|
|
| 44. |
945081
|
[3] |
Clamp, starter motor
|
|
| 45. |
948211
|
[1] |
Cable tie
|
|
| 46. |
3809875
|
[1] |
Wiring harness
|
|
| 47. |
874569
|
[1] |
Retainer
|
|
| 48. |
874368
|
[4] |
Receptacle housing
|
|
| 49. |
3809871
|
[4] |
Adapter
|
|
| 50. |
952624
|
[1] |
Clamp
|
|
| 51. |
952627
|
[1] |
Clamp
|
|
| 52. |
952629
|
[1] |
Clamp
|
|
| 53. |
946501
|
[3] |
Flange screw
|
|
| 54. |
980881
|
[1] |
Cable tie
|
|
| 55. |
873765
|
[1] |
Relay
|
12V
|
