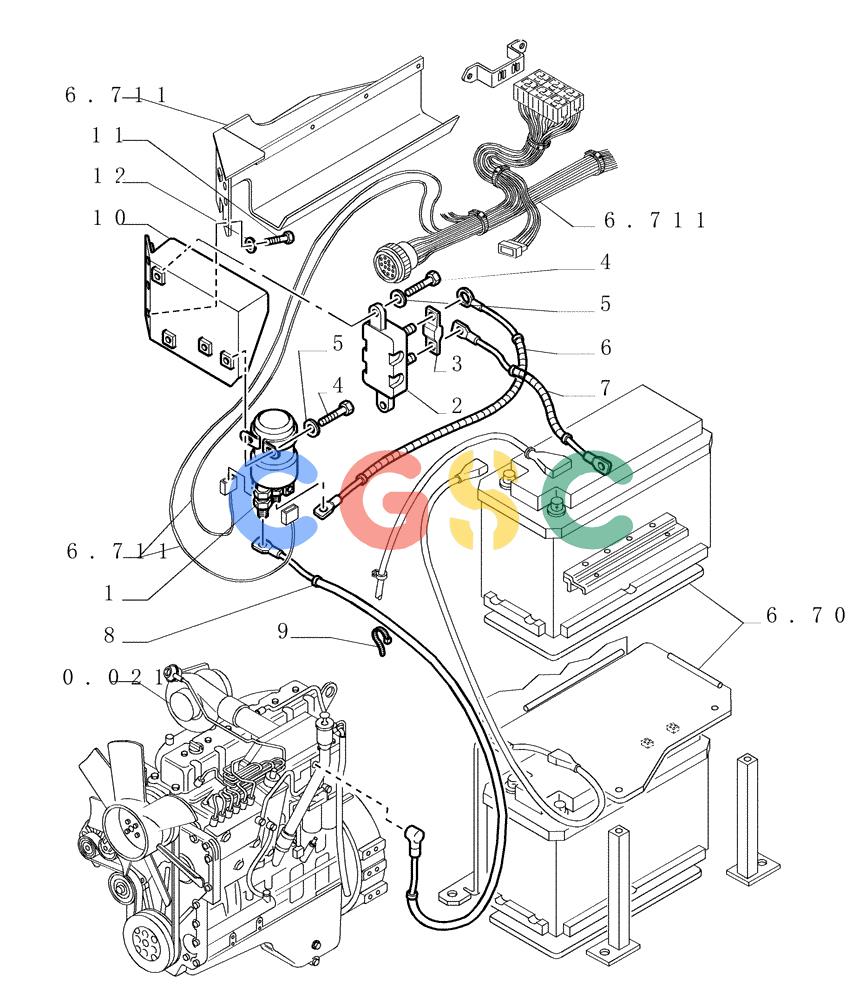

纽荷兰零件查询(DC180LT) - CRAWLER DOZER (5/00-) (9.710[01]) - COLD WEATHER STARTING AID - OPTIONAL CODE 76046696 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79060328 | [1] | RELAY | LEC- SAFETY |
| 2. | 76046237 | [1] | FUSE BOX | LEC Superseded by part number: 87302554 |
| 3. | 76046235 | [1] | FUSE | LECMEGA 150A Superseded by part number: 8501311 |
| 4. | 10977731 | [4] | BOLT,Hex, M5 x 14mm, Cl 10.9, Full Thd | LEC Superseded by part number: 10977721 |
| 5. | 14496329 | [4] | WASHER,M5.3 x 10 x 1 Thk | LEC |
| 6. | 76048035 | [1] | WIRE HARNESS | LEC- FUSE-RELAY |
| 7. | 76066354 | [1] | ELECTRIC CABLE | LECBATTERIES/FUSE-LINK Superseded by part number: 76075286 |
| 8. | 76048036 | [1] | WIRE HARNESS | LECRELAY-RESISTANCE |
| 9. | 79013422 | [5] | CABLE TIE,145mm L | LEC |
| 10. | 76068072 | [1] | SUPPORT | LEC |
| 11. | 10902031 | [3] | BOLT,Hex, M6 x 12mm, Cl 10.9 | LEC Superseded by part number: 86508616 |
| 12. | 14496431 | [3] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
