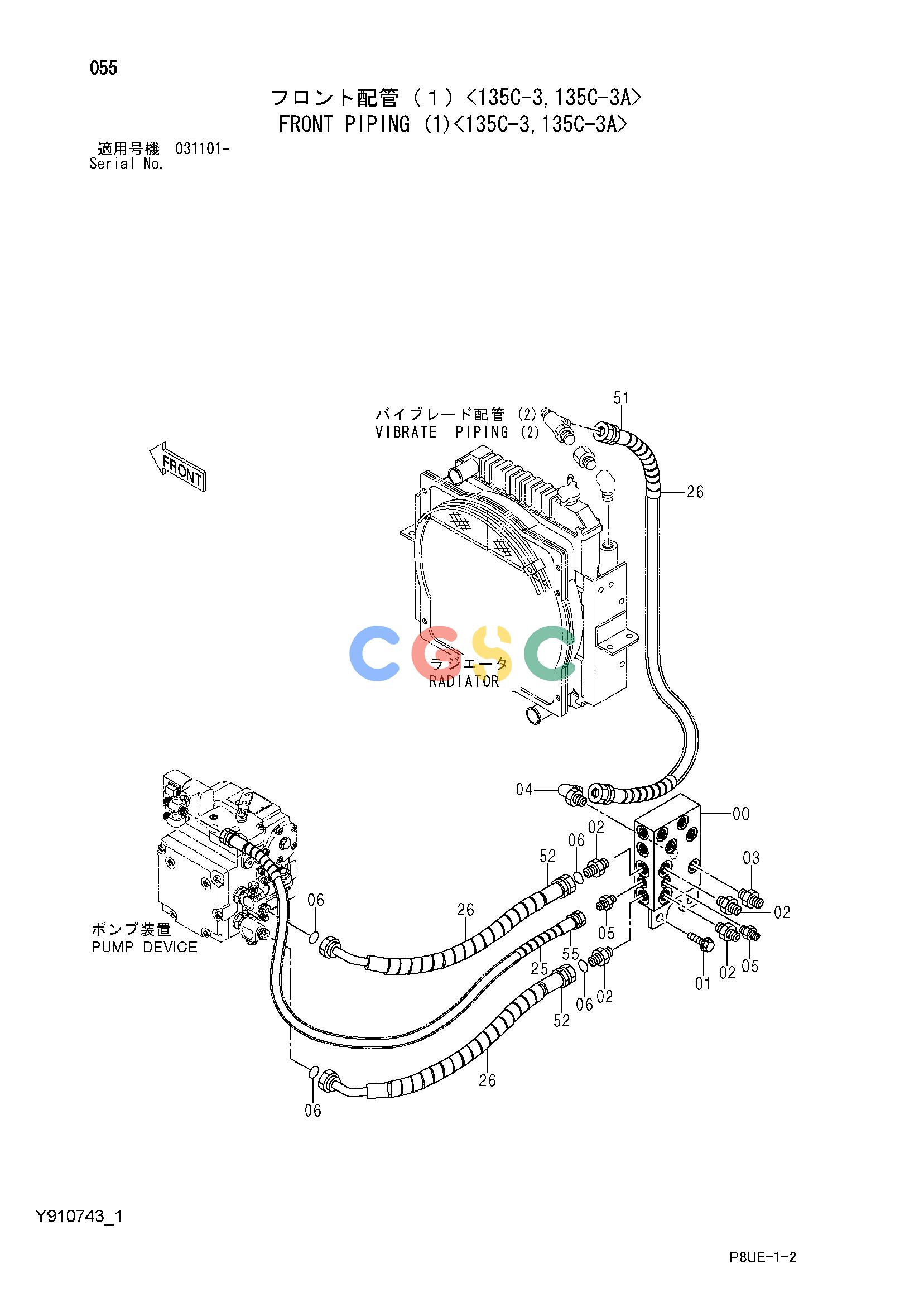

日立零件查询（CC135C-3A）FRONT PIPING (1)<135C-3,135C-3A> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
812 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y701106 | [1] | MANIFOLD | |
| 01. | J271040 | [2] | BOLT;SEMS | |
| 01A. | J901040 | [1] | BOLT | |
| 01B. | J222010 | [1] | WASHER | |
| 02. | A853144 | [4] | ADAPTER | |
| 02A. | 4506418 | [1] | O-RING | |
| 03. | A852133 | [1] | ADAPTER;S | |
| 03A. | 4509180 | [1] | O-RING | |
| 04. | A852334 | [1] | ELBOW;S | |
| 04A. | 4509180 | [1] | O-RING | |
| 05. | A852122 | [2] | ADAPTER;S | |
| 05A. | 957366 | [1] | O-RING | |
| 06. | 4138938 | [4] | O-RING | |
| 25. | 4327293 | [2] | PROTECTOR | |
| 26. | 4327294 | [4] | PROTECTOR | |
| 51. | 4637609 | [1] | HOSE | |
| 52. | Y415829 | [2] | HOSE | |
| 55. | Y415832 | [1] | HOSE | |
