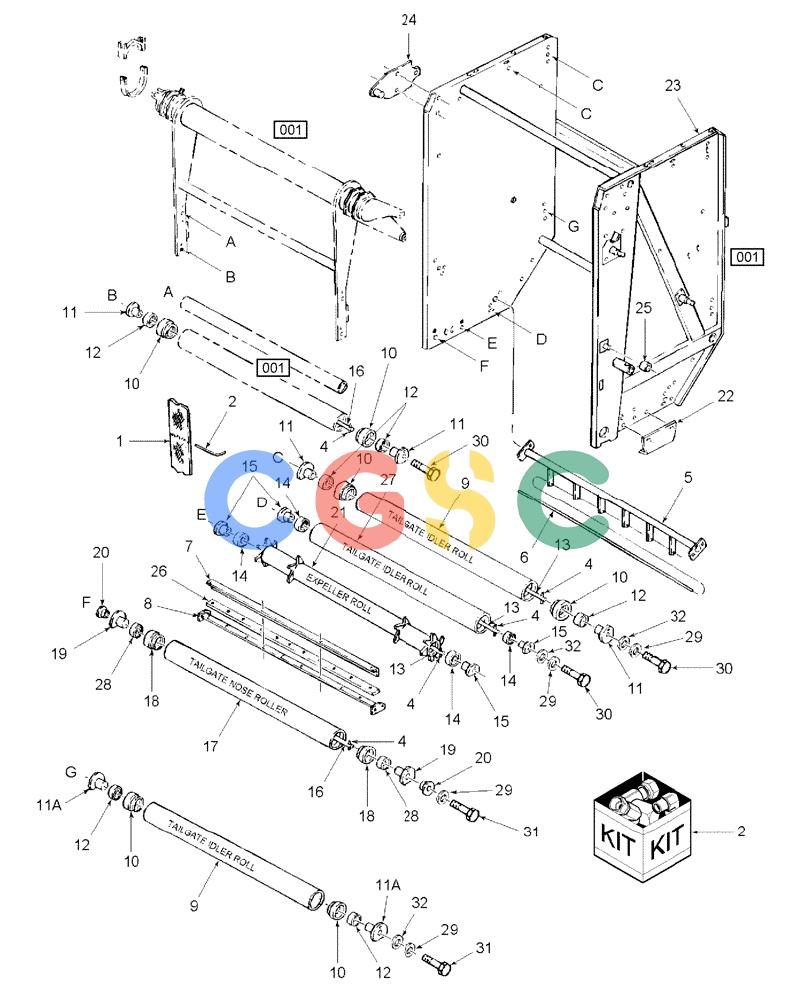

| 1. |
86616066
|
[8] |
BELT,177.80 mm W x 10681.00 mm L
|
NH
Baler, Laced Superseded by part number: 87056535
|
| 1. |
87032888
|
[8] |
BELT,7.00" W x 420.50" L
|
PA
Baler, Endless Superseded by part number: 84141595
|
| 2. |
86625980
|
[1] |
DIA KIT, HARVESTER
|
NH
Lacing Cable, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions Superseded by part number: 84399081
|
| . . |
9847138
|
[1] |
REPAIR KIT
|
NH
Lacing, Includes: Box of 18 Cards, 45 Hooks per Card
|
| 4. |
838-5526
|
[12] |
LOCK PIN,M5 x 26, Slotted
|
CAS
Superseded by part number: 82848074, 130045
|
| 5. |
86626133
|
[1] |
GUIDE
|
NH
Belt, Rear
|
| . . |
811-10030
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| . . |
825-51410
|
[4] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 6. |
9621329
|
[1] |
ROD
|
NH
|
| . . |
432-816
|
[2] |
COTTER PIN,1/8" x 1"
|
CAS
Superseded by part number: 80755
|
| 7. |
86628016
|
[1] |
ANGLE
|
NH
|
| . . |
381014
|
[10] |
SCREW,Flng, M8 x 16mm
|
NH
HWH, M8 x 1.25 x 16
|
| 8. |
86626134
|
[1] |
SUPPORT
|
NH
Superseded by part number: 47761419
|
| . . |
811-10020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 9. |
86502853
|
[3] |
ROLLER
|
NH
4-1/2", Includes: Tube, (2) Bearings & (2) Housings Superseded by part number: 84601407
|
| 10. |
86500662
|
[6] |
BEARING ASSY
|
NH
Includes: Ref. 12
|
| 11. |
86516322
|
[6] |
SUPPORT
|
NH
No Threads Superseded by part number: 87654792
|
| 11. |
86501067
|
[2] |
SUPPORT
|
NH
Threads
|
| 12. |
8050825
|
[6] |
BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm
|
L
Superseded by part number: F82059
|
| 13. |
9608117
|
[6] |
SHAFT
|
NH
Superseded by part number: 87023401
|
| . . |
29684
|
[8] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
17/32" ID x 2" OD x 3/16" Thk
|
| . . |
614-12030
|
[8] |
BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 9706687
|
| . . |
65319
|
[8] |
WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk
|
NH
|
| 15. |
86521602
|
[8] |
SUPPORT
|
NH
Superseded by part number: 87023400
|
| 16. |
9608250
|
[1] |
SHAFT
|
NH
|
| . . |
814-12050
|
[2] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| 17. |
86502839
|
[1] |
ROLLER
|
NH
5.56, Includes: Tube, (2) Bearings & (2) Housings
|
| 18. |
9848489
|
[2] |
BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore
|
NH
Includes: (2) Ref. 12 Superseded by part number: 47531138
|
| 19. |
86521601
|
[2] |
SUPPORT
|
NH
|
| 20. |
9614071
|
[2] |
CAP COVER
|
NH
|
| 21. |
86637216
|
[1] |
ROLLER
|
NH
Expeller, Includes: (2) Ref. 12 Superseded by part number: 47510516
|
| 22. |
86637219
|
[2] |
SHIELD
|
NH
|
| . . |
811-8020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| . . |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 23. |
86631520
|
[1] |
TAILGATE
|
NH
Endless Belt
|
| 23. |
86637213
|
[1] |
TAILGATE
|
PA
Laced Belts
|
| . . |
495-11053
|
[2] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| . . |
432-1228
|
[2] |
COTTER PIN,3/16" x 1 3/4"
|
CAS
Superseded by part number: 87399
|
| 24. |
86637243
|
[2] |
PLATE ASSY.
|
NH
Superseded by part number: 47798993
|
| . . |
273127
|
[10] |
WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk
|
NH
|
| . . |
614-16050
|
[10] |
BOLT,Hex, M16 x 2 x 50mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 120090
|
| 25. |
9829271
|
[2] |
SPACER
|
NH
|
| . . |
432-1224
|
[2] |
COTTER PIN,3/16" x 1-1/2"
|
CAS
Superseded by part number: 80754
|
| 26. |
86636769
|
[1] |
SCRAPER BLADE
|
NH
|
| . . |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
Superseded by part number: 83990583
|
| . . |
825-1408
|
[4] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 27. |
9842173
|
[1] |
ROLLER
|
NH
3-1/2", Includes: (2) Ref. 28 Superseded by part number: 84600588
|
| 34. |
86643786
|
[1] |
DIA KIT, HARVESTER
|
PA
Expeller Roller, Refer to Fig. 041 Superseded by part number: 87347750
|
