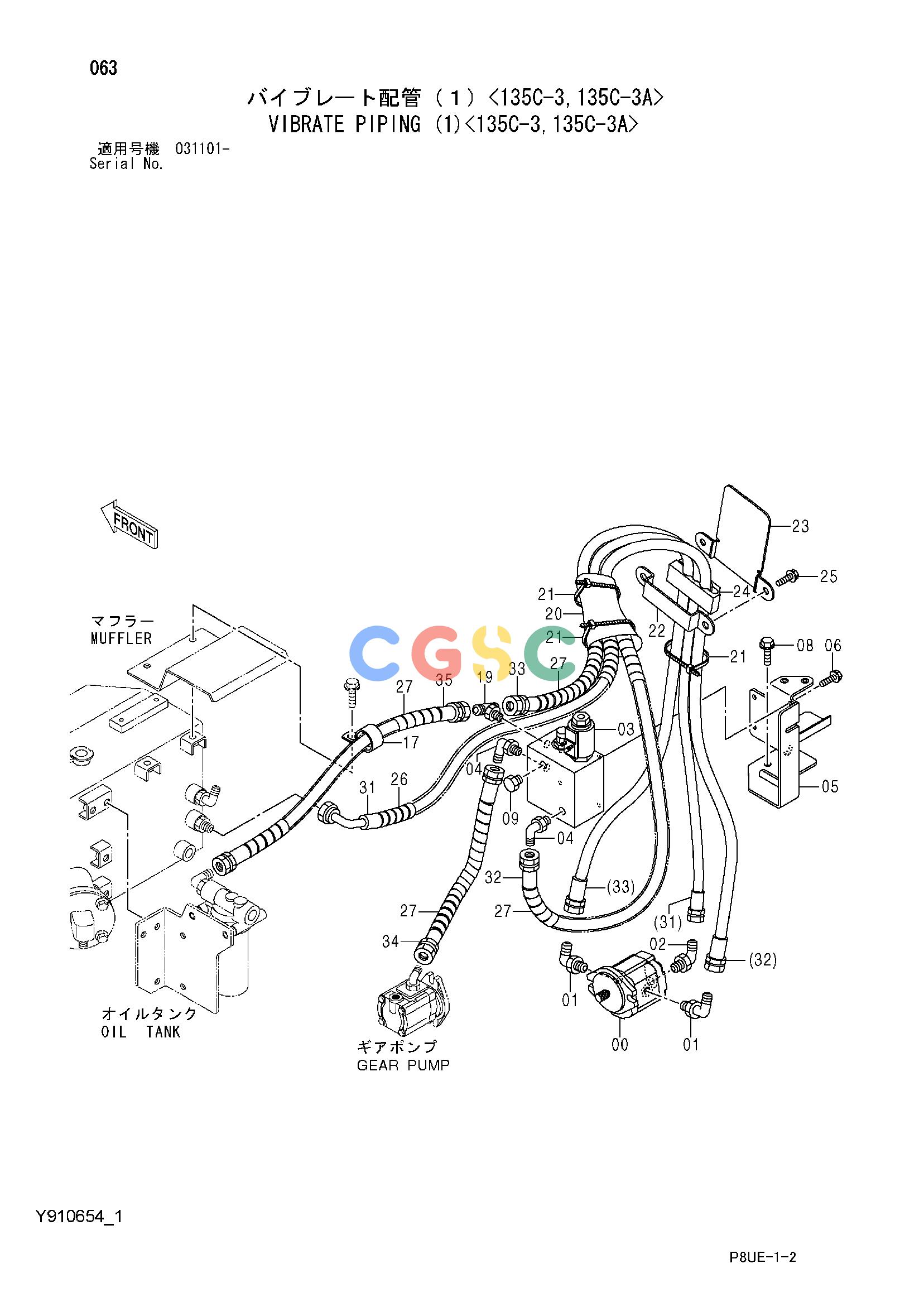

日立零件查询（CC135C-3A）VIBRATE PIPING (1)<135C-3,135C-3A> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
697 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y414931 | [1] | MOTOR;GEAR | |
| 01. | 4327300 | [2] | ELBOW;S | |
| 01A. | R26906R | [1] | O-RING | |
| 02. | 4277654 | [1] | ELBOW;S | |
| 02A. | R26448R | [1] | O-RING | |
| 03. | Y414930 | [1] | VALVE;CONTROL | |
| 04. | A852344 | [2] | ELBOW;S | |
| 04A. | 4506418 | [1] | O-RING | |
| 05. | Y802664 | [1] | BRACKET | |
| 06. | J260816 | [4] | BOLT;SEMS | |
| 06A. | J900816 | [1] | BOLT | |
| 06B. | A590108 | [1] | WASHER;PLANE | |
| 08. | J271030 | [2] | BOLT;SEMS | |
| 08A. | J901030 | [1] | BOLT | |
| 08B. | J222010 | [1] | WASHER | |
| 09. | 4174541 | [1] | PLUG | |
| 09A. | 4506418 | [1] | O-RING | |
| 17. | 4190263 | [1] | CLIP | |
| 19. | A852544 | [1] | TEE;S | |
| 19A. | 4506418 | [1] | O-RING | |
| 20. | 4370544 | [1] | SEAT;RUBBER | |
| 21. | 4323613 | [3] | CLIP;BAND | |
| 22. | Y415989 | [1] | PLATE | |
| 23. | Y971733 | [1] | COVER | |
| 24. | Y415890 | [1] | CLAMP | |
| 25. | J271020 | [2] | BOLT;SEMS | |
| 25A. | J901020 | [1] | BOLT | |
| 25B. | J222010 | [1] | WASHER | |
| 26. | 4327294 | [1] | PROTECTOR | |
| 27. | 4446406 | [5] | PROTECTOR | |
| 31. | 4313039 | [1] | HOSE | |
| 32. | Y416030 | [1] | HOSE | |
| 33. | 4305262 | [1] | HOSE | |
| 34. | 4305254 | [1] | HOSE | |
| 35. | 4637608 | [1] | HOSE | |
