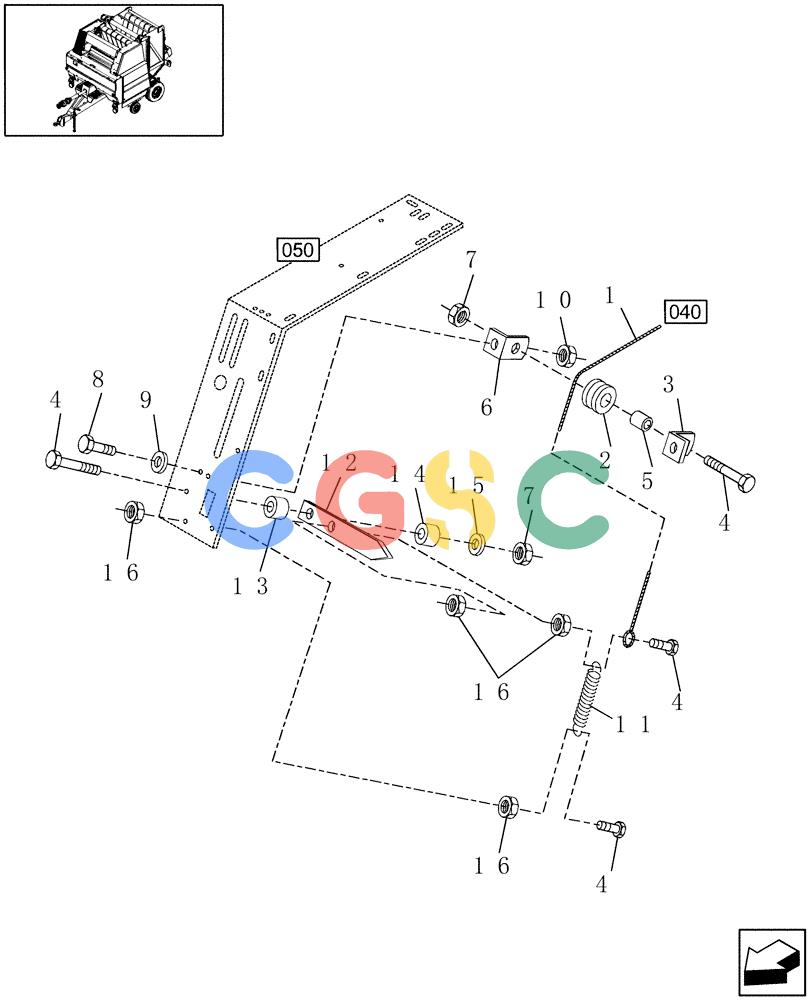

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (022) - TAILGATE LATCH INDICATOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
970 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
9828314
|
[1] |
ROPE
|
NH
Wire
|
| 2. |
510932
|
[1] |
PULLEY,50.01mm OD
|
NH
|
| 3. |
689986
|
[2] |
ANGLE
|
NH
Bracket
|
| 4. |
844-8030
|
[1] |
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87779272, 9804260
|
| 5. |
696365
|
[1] |
SPACER
|
NH
|
| 6. |
689987
|
[1] |
ANGLE
|
NH
|
| 7. |
825-5148
|
[1] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 8. |
9706703
|
[2] |
CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd
|
NH
|
| 9. |
140016
|
[2] |
WASHER,M8 x 16mm OD x 1.6mm Thk
|
NH
Superseded by part number: 86624184
|
| 10. |
825-5146
|
[2] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 11. |
18
|
[1] |
SPRING
|
NH
|
| 12. |
86628104
|
[1] |
PLATE
|
NH
|
| 13. |
620536
|
[1] |
SPACER
|
NH
|
| 14. |
43414
|
[1] |
SPACER
|
NH
Superseded by part number: 574599
|
| 15. |
87363
|
[1] |
WASHER,0.47" ID x 0.92" OD x 0.07" Thk
|
NH
|
| 16. |
825-1408
|
[4] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
