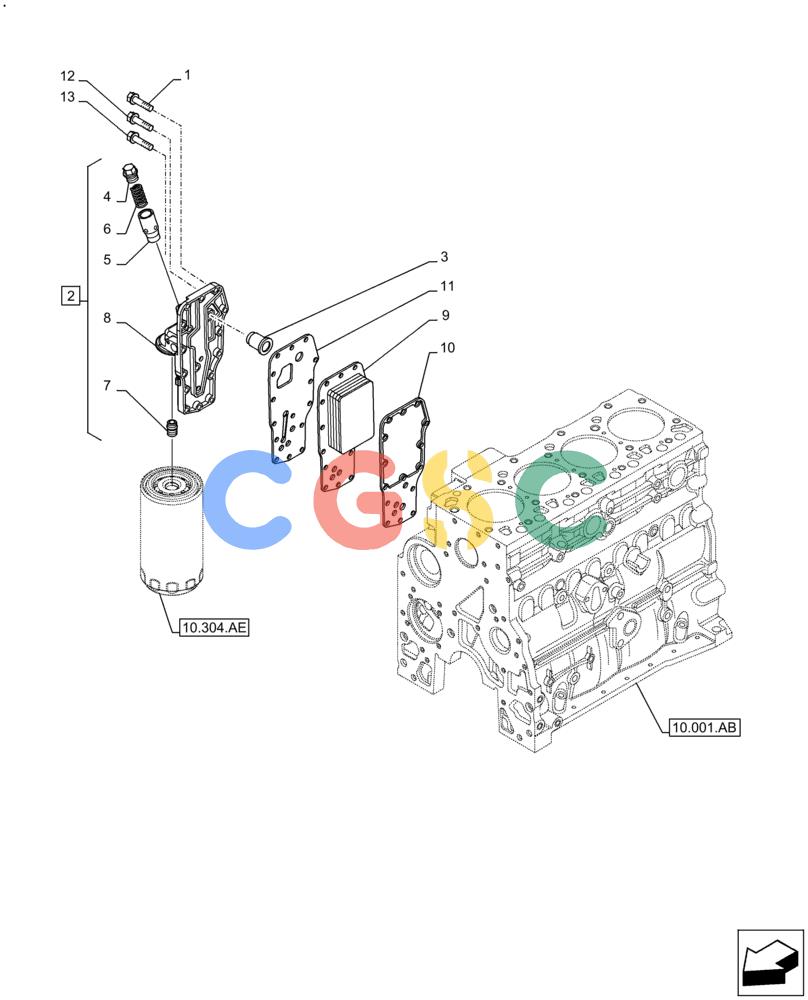

神钢零件查询(F4HFE413C A002) - ENGINE 5801688472 - 47397958 - TIER 4A (4/14-) (10.408.AO) - ENGINE OIL, COOLER Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
298 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4899019 | [10] | SCREW,Hex Flg, M8 x 1.25 x 35 | TOR |
| 2. | 47577032 | [1] | FILTER HEAD | BRRAssy; Incl 3 - 8 Superseded by part number: 504096409, 4899035, 4896410, 4896404, 4895045 |
| 3. | J936365 | [1] | VALVE PRESSURE RELIE | CAS Superseded by part number: 4896410 |
| 4. | 2853781 | [1] | PLUG,Hex, M22 x 1.5 ORB | TOR Superseded by part number: 504096409 |
| 5. | 4896404 | [1] | PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD | TOR |
| 6. | 4895045 | [1] | SPRING,Compression, 14.7mm OD x 66mm L | TOR |
| 7. | 4893391 | [1] | ADAPTER,M24 x 2 x M27 x 2 | TOR |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONHousing; Incl in 2 |
| 9. | 4896407 | [1] | OIL COOLER | TOR Superseded by part number: |
| 10. | 2830559 | [1] | GASKET,0.5mm Thk | TOR |
