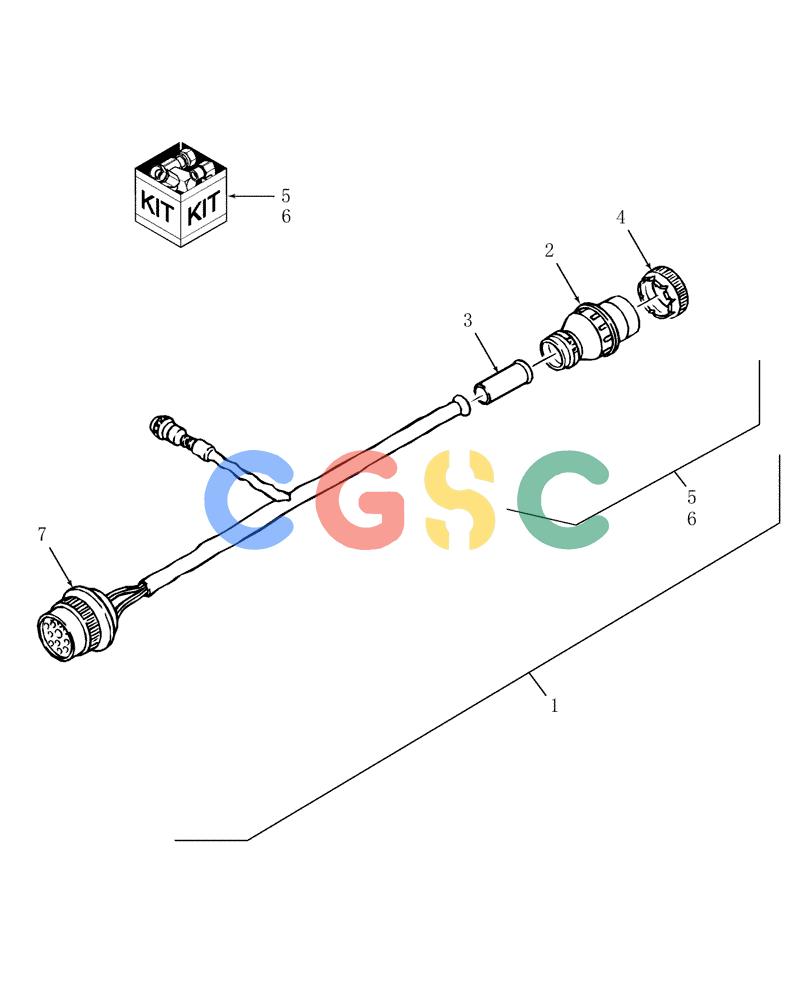

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (032[1]) - WIRE HARNESS, NET-TWINE, OPERATOR'S PANEL Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
835 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86541282
|
[1] |
WIRE HARNESS
|
NH
|
| 2. |
850072
|
[1] |
COLLAR CLAMP
|
NH
Superseded by part number: 445525
|
| 3. |
9619682
|
[1] |
BUSHING
|
NH
|
| 4. |
9622758
|
[1] |
COUPLING RING
|
NH
|
| 5. |
9609190
|
[1] |
HYD CONNECTOR
|
NH
Recepticle, 9 Pin Superseded by part number: 87707146
|
| 5. |
9609191
|
[1] |
MULTIPOLE CONNECTOR,Female, 9 Pole
|
NH
Plug, 9 Pin Superseded by part number: 291658A1
|
| 6. |
900363
|
[1] |
TERMINAL
|
NH
Contacts, E18 Superseded by part number: 87697947
|
| 6. |
900364
|
[1] |
TERMINAL CONNECTOR
|
NH
E18
|
| 7. |
9861362
|
[1] |
POWER SOCKET
|
NH
18-pin Receptacle
|
| . . |
900787
|
[1] |
TERMINAL
|
NH
E18
|
| . . |
900302
|
[2] |
TERMINAL
|
NH
E18 Superseded by part number: 87697875
|
