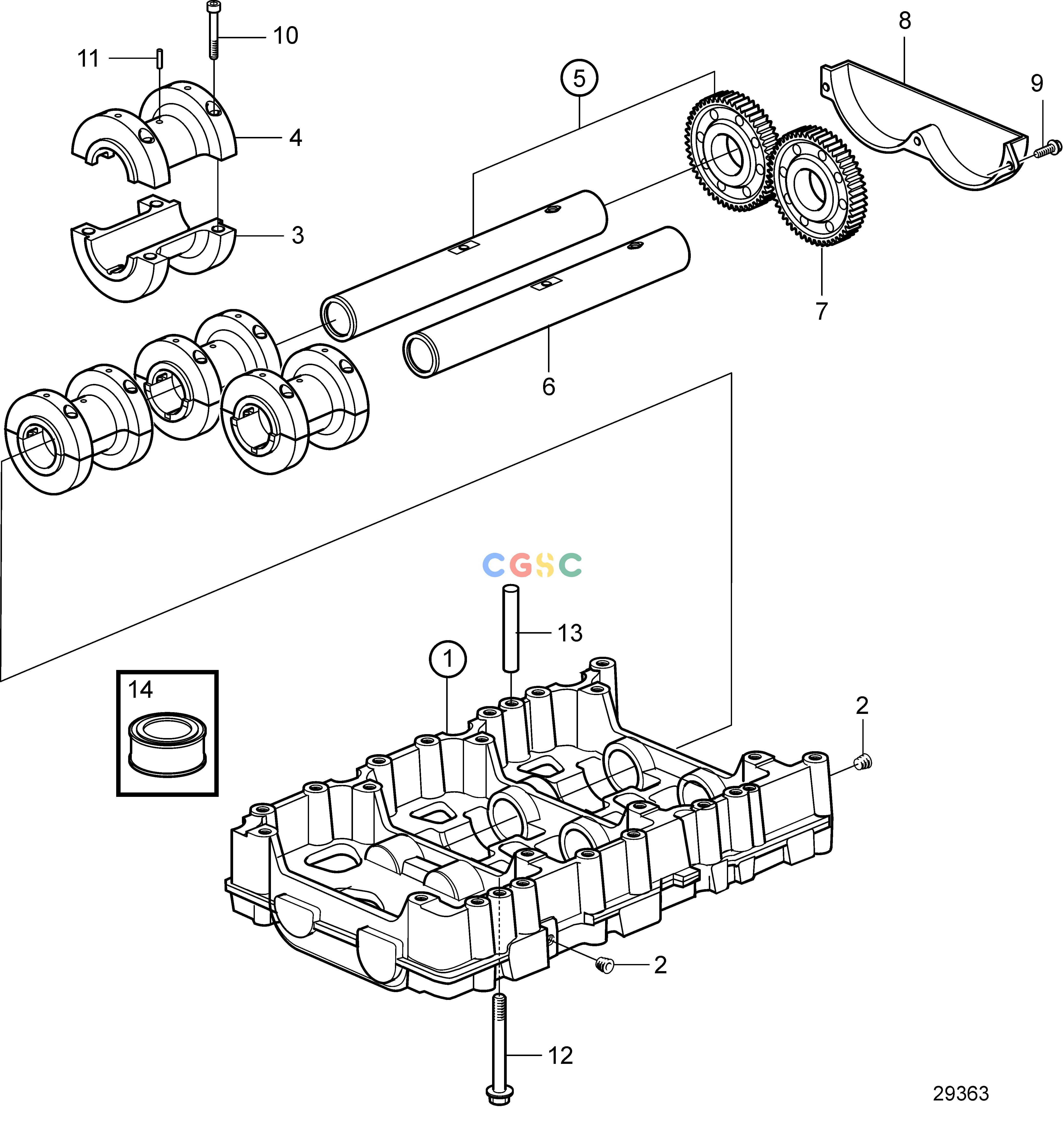

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FEngineBalancer ShaftEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21257397
|
[1] |
Housing
|
|
| 2. |
990828
|
[2] |
Plug
|
|
| 3. |
21257393
|
[4] |
Counterweight
|
|
| 4. |
3818299
|
[4] |
Dummy
|
|
| 5. |
21511517
|
[2] |
Shaft
|
|
| 6. |
|
|
|
|
| 7. |
|
|
|
|
| 8. |
3583812
|
[1] |
Cover
|
|
| 9. |
969420
|
[3] |
Six point socket scr
|
L=12mm
|
| 10. |
959213
|
[16] |
Hex. socket screw
|
|
| 11. |
946402
|
[4] |
Grooved pin
|
|
| 12. |
965184
|
[22] |
Flange screw
|
|
| 13. |
950564
|
[2] |
Pin
|
|
| 14. |
3588346
|
[1] |
Lubricant
|
500G
|
