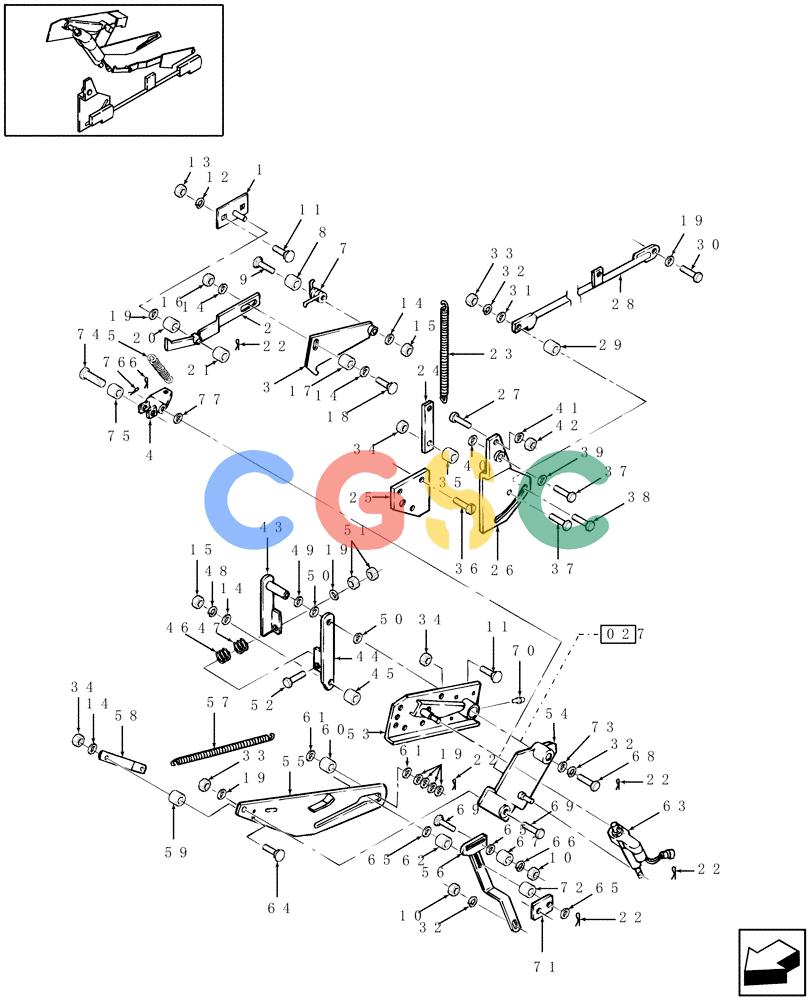

| 1. |
86637168
|
[1] |
SUPPORT
|
NH
|
| 2. |
86637306
|
[1] |
ROD
|
NH
|
| 3. |
86636994
|
[1] |
LATCH
|
NH
|
| 4. |
86549046
|
[1] |
BRACKET
|
NH
|
| 5. |
103803
|
[1] |
SPRING
|
NH
|
| 6. |
432-812
|
[2] |
COTTER PIN,3/4" OAL x 1/8" W
|
CAS
Superseded by part number: 80756
|
| 7. |
86636723
|
[1] |
SPRING
|
NH
LH
|
| 8. |
86518257
|
[1] |
SPACER
|
NH
|
| 9. |
280828
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 4", Gr 5
|
NH
|
| 10. |
829-1412
|
[3] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 11. |
811-10020
|
[5] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| 12. |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| 13. |
825-1410
|
[1] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 14. |
495-21044
|
[1] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 15. |
232-4146
|
[2] |
NUT,3/8"-16, GC
|
CAS
Superseded by part number: 88902
|
| 16. |
832-46410
|
[4] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 17. |
698748
|
[1] |
BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L
|
NH
Superseded by part number: 626698
|
| 18. |
811-10030
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 86512446
|
| 19. |
495-21056
|
[1] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| 20. |
626698
|
[1] |
SPACER
|
NH
|
| 21. |
35185
|
[1] |
BUSHING
|
NH
|
| 22. |
432-820
|
[5] |
COTTER PIN,1/8" x 1 1/4"
|
CAS
Superseded by part number: 87395, 87778232
|
| 23. |
80067629
|
[1] |
SPRING
|
NH
|
| 24. |
67385
|
[1] |
SPACER
|
NH
|
| 25. |
86636878
|
[1] |
CAM
|
NH
|
| 26. |
86636877
|
[1] |
ARM
|
NH
|
| 27. |
133186
|
[1] |
CAM FOLLOWER
|
NH
|
| 28. |
86636987
|
[1] |
ROD
|
NH
|
| 29. |
9846901
|
[1] |
SPACER
|
NH
|
| 30. |
814-12100
|
[1] |
BOLT,Hex, M12 x 1.75 x 100mm, Cl 8.8
|
IH
Superseded by part number: 374887
|
| 31. |
56832
|
[1] |
WASHER,14.29mm ID x 50.8mm OD x 3.43mm Thk
|
NH
|
| 32. |
140046
|
[1] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 33. |
825-51412
|
[2] |
FLANGE NUT,M12, Flg Ser
|
CAS
Superseded by part number: 43436
|
| 34. |
825-51410
|
[10] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 35. |
768703
|
[1] |
BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L
|
NH
|
| 36. |
905-10035
|
[3] |
BOLT,Hex Flg, M10 x 35mm
|
CAS
Superseded by part number: 274254
|
| 37. |
614-10030
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 43140
|
| 38. |
614-12040
|
[1] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| 39. |
86636726
|
[1] |
WASHER
|
NH
|
| 40. |
672
|
[1] |
WASHER
|
NH
|
| 41. |
781316
|
[1] |
WASHER,16.66mm ID x 28.45mm OD x 3.43mm Thk
|
NH
|
| 42. |
425-1110
|
[1] |
NUT,5/8"-18, G5
|
CAS
Superseded by part number: 408
|
| 43. |
86637220
|
[1] |
ARM
|
NH
Top
|
| 44. |
86628665
|
[1] |
ARM
|
NH
Top
|
| 45. |
54462
|
[1] |
BUSHING,19.15mm ID x 22.26mm OD x 15.88mm L
|
NH
|
| 46. |
681902
|
[1] |
SPRING
|
NH
|
| 47. |
38902
|
[1] |
SPRING
|
NH
|
| 48. |
492-11038
|
[2] |
LOCK WASHER,3/8"
|
CAS
Superseded by part number: 80680, 72187249
|
| 49. |
267571
|
[1] |
WASHER
|
NH
Superseded by part number: 84075368
|
| 50. |
58630
|
[1] |
WASHER,.0299" Thk
|
NH
|
| 51. |
425-108
|
[2] |
NUT,1/2" - 13, Gr 5
|
CAS
Superseded by part number: 280431
|
| 52. |
698148
|
[1] |
SCREW
|
NH
HH, Special, G5, 1/2"-13 x 7-1/2"l
|
| 53. |
86628087
|
[1] |
ARM
|
NH
Top
|
| 54. |
86628086
|
[1] |
ARM
|
NH
|
| 55. |
86624649
|
[1] |
CAM
|
NH
|
| 56. |
86637187
|
[1] |
BRACKET
|
NH
|
| 57. |
86559592
|
[1] |
SPRING,Extension, 0.99" OD x 6-1/4" L
|
NH
Extension
|
| 58. |
86628667
|
[1] |
BAR
|
NH
|
| 59. |
646056
|
[1] |
SPACER,13/32” ID x .750” OD x .338” Tk.
|
NH
|
| 60. |
12595
|
[2] |
CAM FOLLOWER
|
NH
Follower
|
| 61. |
86632168
|
[3] |
WASHER
|
NH
|
| 62. |
36334
|
[1] |
GUIDE
|
NH
Follower Superseded by part number: 86553579
|
| 63. |
9843435
|
[1] |
ACTUATOR
|
NH
Refer to Fig. 018
|
| . . |
9843435R
|
[1] |
REMAN-ELECTRIC ACTUATOR
|
NH
RBX561 (12/01-8/02)
|
| . . |
9843435C
|
[1] |
CORE-ELECTRIC ACTUATOR
|
NH
Return Number
|
| 65. |
495-11053
|
[3] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 66. |
80679
|
[1] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 67. |
49309
|
[1] |
BALL BEARING,12.69mm ID x 34.92mm OD x 11.11mm W
|
NH
Idler
|
| 68. |
814-12050
|
[1] |
BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 9706702
|
| 69. |
811-12040
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8
|
CAS
Superseded by part number: 328754
|
| 70. |
219-90
|
[1] |
LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF
|
CAS
Superseded by part number: 87569
|
| 71. |
86628313
|
[1] |
SUPPORT
|
NH
|
| 72. |
131522
|
[1] |
SPACER
|
NH
Split
|
| 73. |
29684
|
[1] |
WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk
|
NH
17/32" ID x 2" OD x 3/16" Thk
|
| 74. |
432-612
|
[1] |
COTTER PIN,3/32" x 3/4"
|
CAS
Superseded by part number: 280250
|
| 75. |
271270
|
[1] |
PIN
|
NH
3/8" OD x 1-3/8" Long Superseded by part number: 87053026
|
| 76. |
788783
|
[1] |
SPACER
|
NH
|
| 77. |
378245
|
[1] |
WASHER,13mm ID x 28.5mm OD x 2.7mm Thk
|
NH
|
