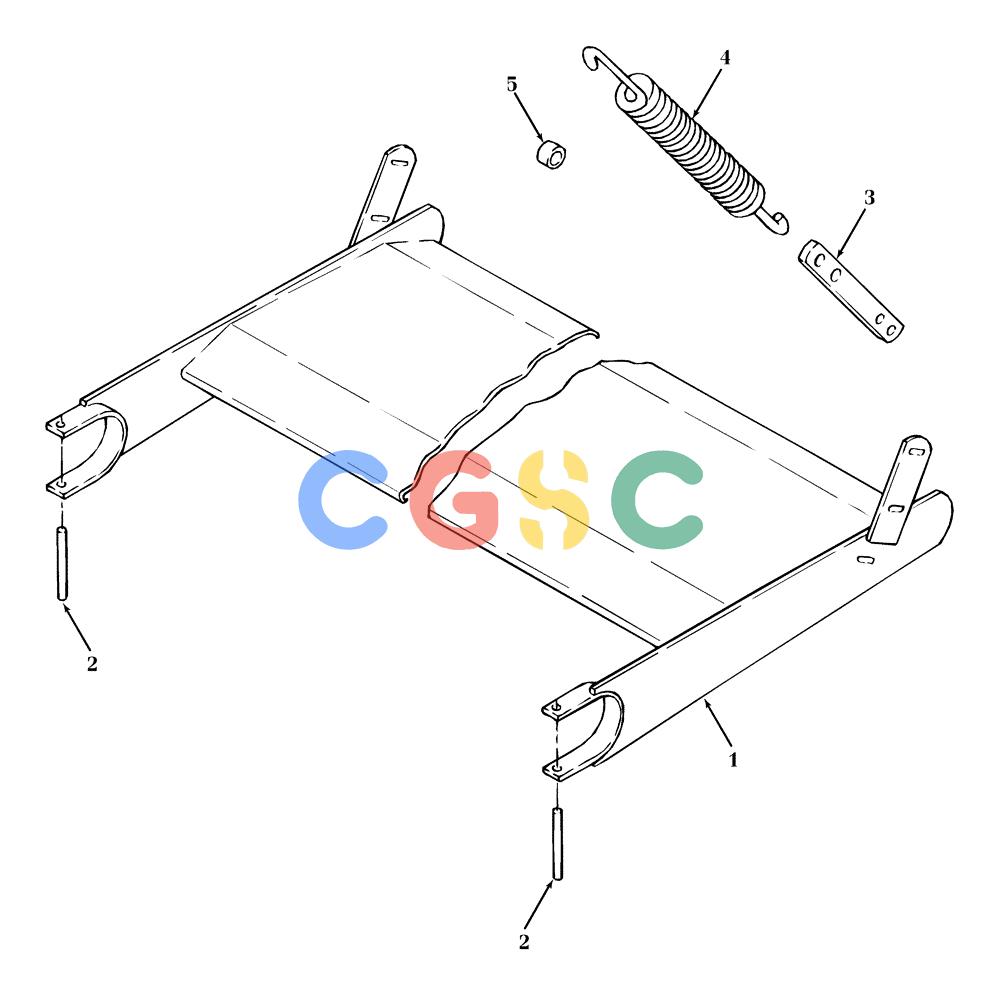

凯斯零件查询(RBX561) - CASE IH ROUND BALER (12/01-8/02) (010) - BALE EJECTOR Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
175 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
86637185
|
[1] |
ARM ASSY.
|
NH
Bale Kicker
|
| 2. |
9802698
|
[2] |
SPACER
|
NH
|
| . . |
331168
|
[2] |
BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8
|
NH
|
| . . |
832-46410
|
[2] |
NUT,M10 x 1.5, Cl 8
|
CAS
Superseded by part number: 100037
|
| 3. |
86637202
|
[2] |
BRACKET
|
NH
|
| . . |
905-10025
|
[2] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| . . |
825-51410
|
[2] |
FLANGE NUT,M10, Flg Ser
|
CAS
Superseded by part number: 43435
|
| 4. |
86514028
|
[2] |
SPRING
|
NH
Extension
|
| . . |
614-12040
|
[2] |
BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd
|
IH
Superseded by part number: 86629541
|
| . . |
495-21056
|
[2] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| . . |
829-1412
|
[2] |
NUT,M12, Cl 10.9
|
CAS
Superseded by part number: 337475
|
| 5. |
131522
|
[2] |
SPACER
|
NH
|
| . . |
80679
|
[2] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
