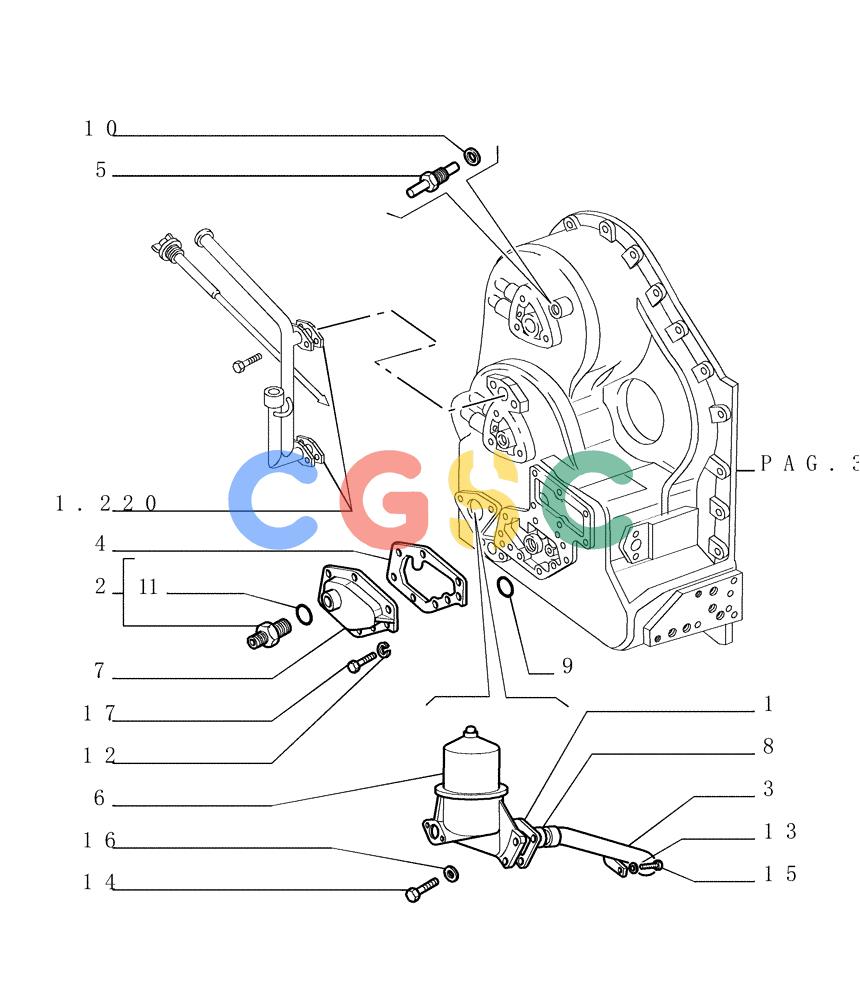

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (1.211[05]) - TRANSMISSION - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76028084 | [1] | GASKET,0.4mm Thk | LEC |
| 2. | 79066946 | [1] | HYD CONNECTOR | LEC- ASSY |
| 3. | 4956208 | [1] | TUBE | LEC |
| 4. | 76028087 | [1] | MANIFOLD GASKET | LEC |
| 5. | 4972664 | [1] | HYD CONNECTOR | LEC |
| 6. | 4996300 | [1] | FILTER ASSY | LEC- ASSY SEE PAG.13 |
| 7. | 79106111 | [1] | COVER | LEC |
| 8. | 14463681 | [1] | O-RING,31.34mm ID x 3.53" Width | TTF |
| 9. | 14456881 | [3] | O-RING,0.362" ID x 0.103" Width | JES |
| 10. | 79086481 | [1] | WASHER,18.7mm ID x 26mm OD x 1.5mm Thk | LEC |
| 12. | 14496531 | [8] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC Superseded by part number: 86624184 |
| 13. | 14496631 | [1] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
| 14. | 15540531 | [3] | SCREW,Hex, M12 x 1.25 x 35mm, Cl 10.9, Full Thd | IMO Superseded by part number: 75224970, 86642438 |
| 15. | 15970534 | [1] | BOLT,Hex, M10 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15970531 |
| 16. | 14496731 | [3] | WASHER,M12 x 24 x 2.5 Thk | LEC Superseded by part number: 895-11012 |
| 17. | 16043434 | [8] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LEC Superseded by part number: 16043431 |
| 11. | 14438185 | [1] | O-RING,24mm ID x 3mm | JES |
