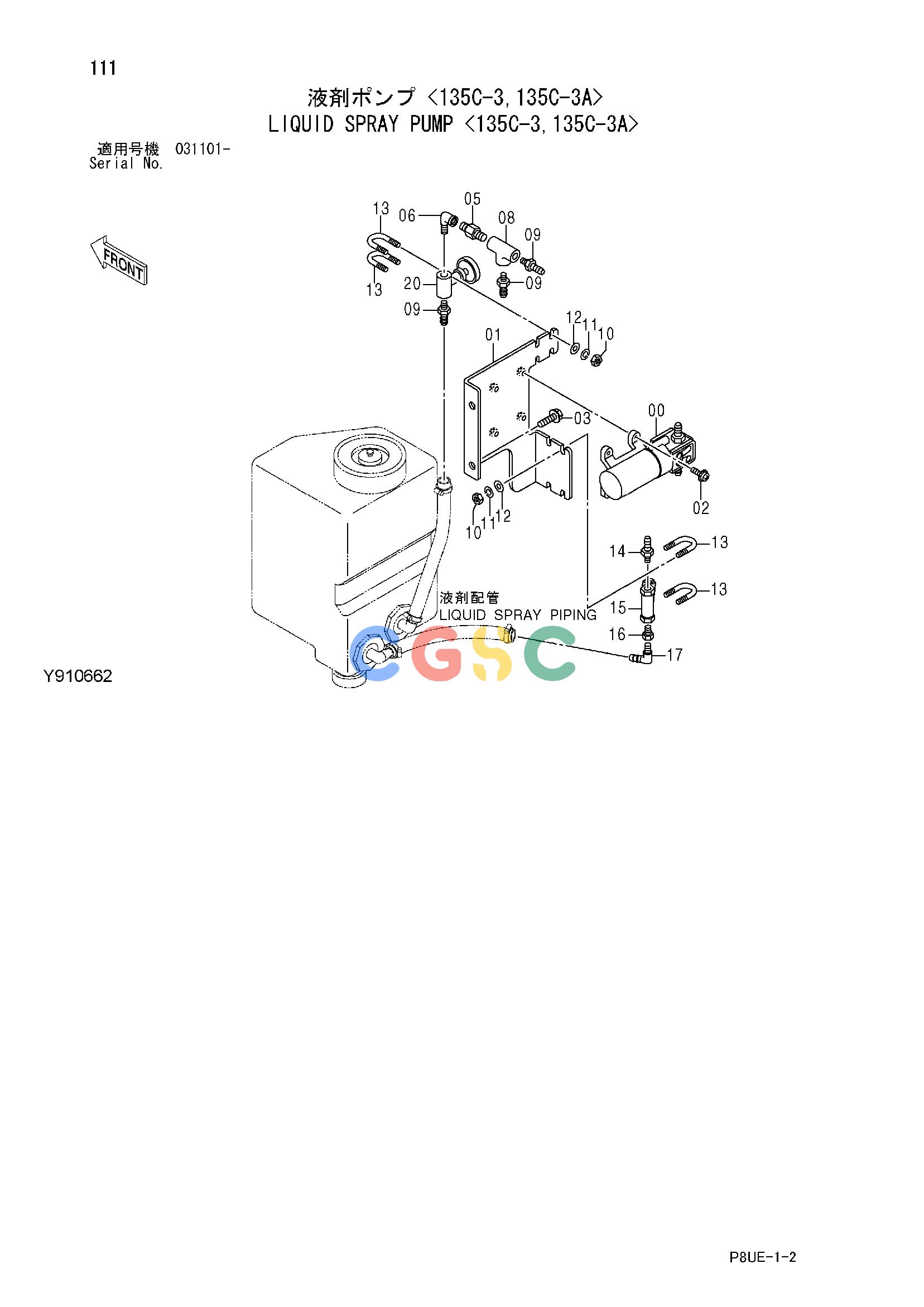

日立零件查询（CC135C-3A）LIQUID SPRAY PUMP <135C-3,135C-3A> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
964 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | Y407028 | [1] | PUMP;DIAPHRAGM | |
| 01. | Y802580 | [1] | BRACKET | |
| 02. | J460420 | [4] | SCREW;SEMS | |
| 03. | J271030 | [2] | BOLT;SEMS | |
| 03A. | J901030 | [1] | BOLT | |
| 03B. | J222010 | [1] | WASHER | |
| 05. | J70781 | [1] | ADAPTER | |
| 06. | 94-0645 | [1] | ELBOW | |
| 08. | J70481 | [1] | TEE | |
| 09. | Y401980 | [3] | FITTING;HOSE | |
| 10. | M500605 | [8] | NUT | |
| 11. | A590906 | [8] | WASHER;SPRING | |
| 12. | A590106 | [8] | WASHER;PLANE | |
| 13. | Y401840 | [4] | BOLT;U | |
| 14. | Y401979 | [1] | FITTING;HOSE | |
| 15. | Y401967 | [1] | STRAINER | |
| 16. | J728281 | [1] | REDUCER | |
| 17. | Y403791 | [1] | FITTING;HOSE | |
| 20. | Y415948 | [1] | NEEDLE;VALVE | |
