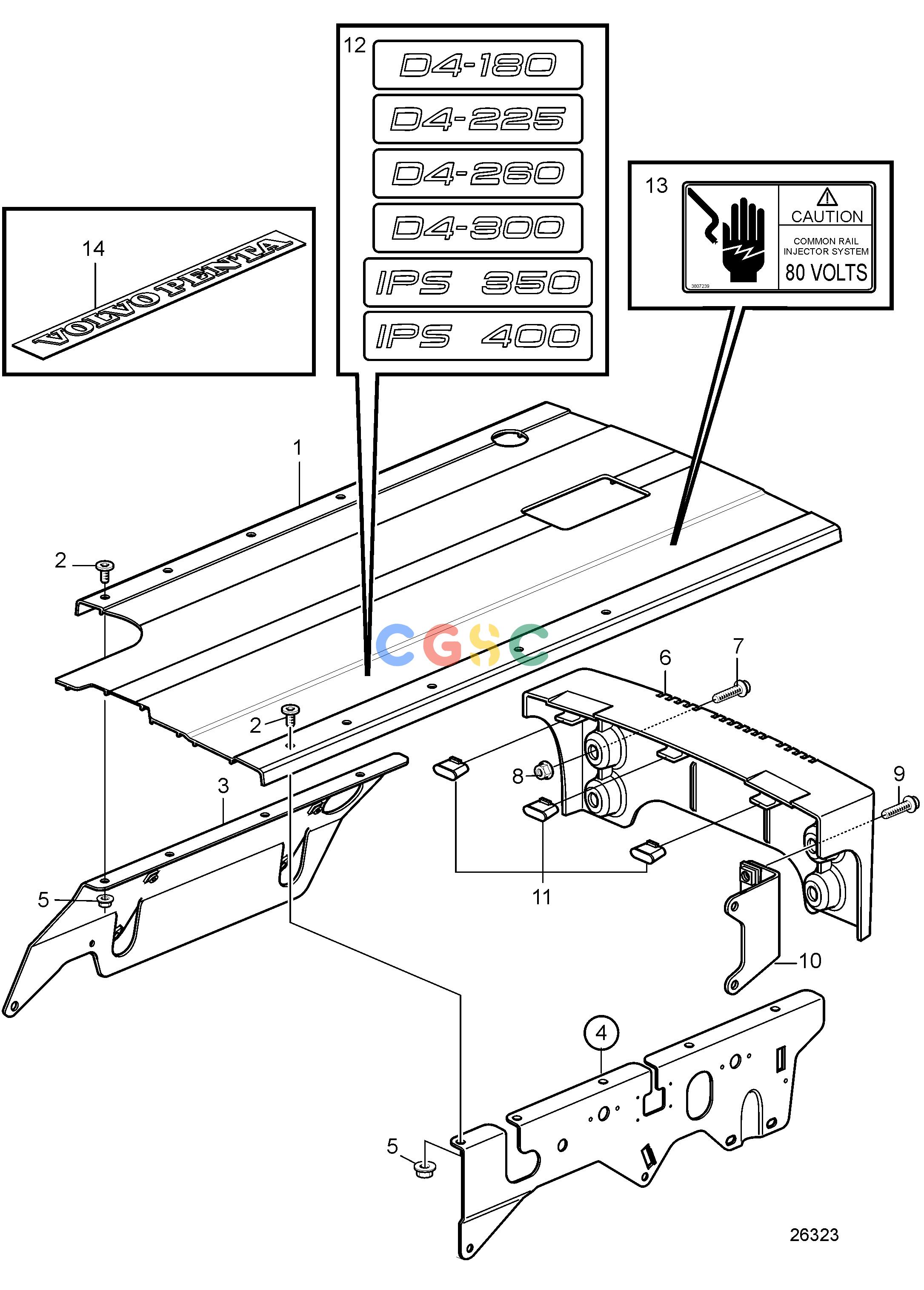

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FEngineProtecting CoverEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
878 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21656732
|
[1] |
Cover
|
|
| 2. |
971319
|
[9] |
Six point socket scr
|
|
| 3. |
21475793
|
[1] |
Support
|
|
| 4. |
21956769
|
[1] |
Support
|
|
| 5. |
|
|
|
|
| 6. |
3588528
|
[1] |
Protecting cover
|
|
| 7. |
946173
|
[2] |
Flange screw
|
|
| 8. |
945408
|
[2] |
Flange nut
|
|
| 9. |
946671
|
[2] |
Flange screw
|
|
| 10. |
3586068
|
[1] |
Bracket
|
|
| 11. |
3584091
|
[3] |
Support
|
|
| 12. |
|
|
|
IPS 400
|
| 13. |
3807239
|
[1] |
Decal
|
|
| 14. |
21311345
|
[1] |
Decal
|
|
