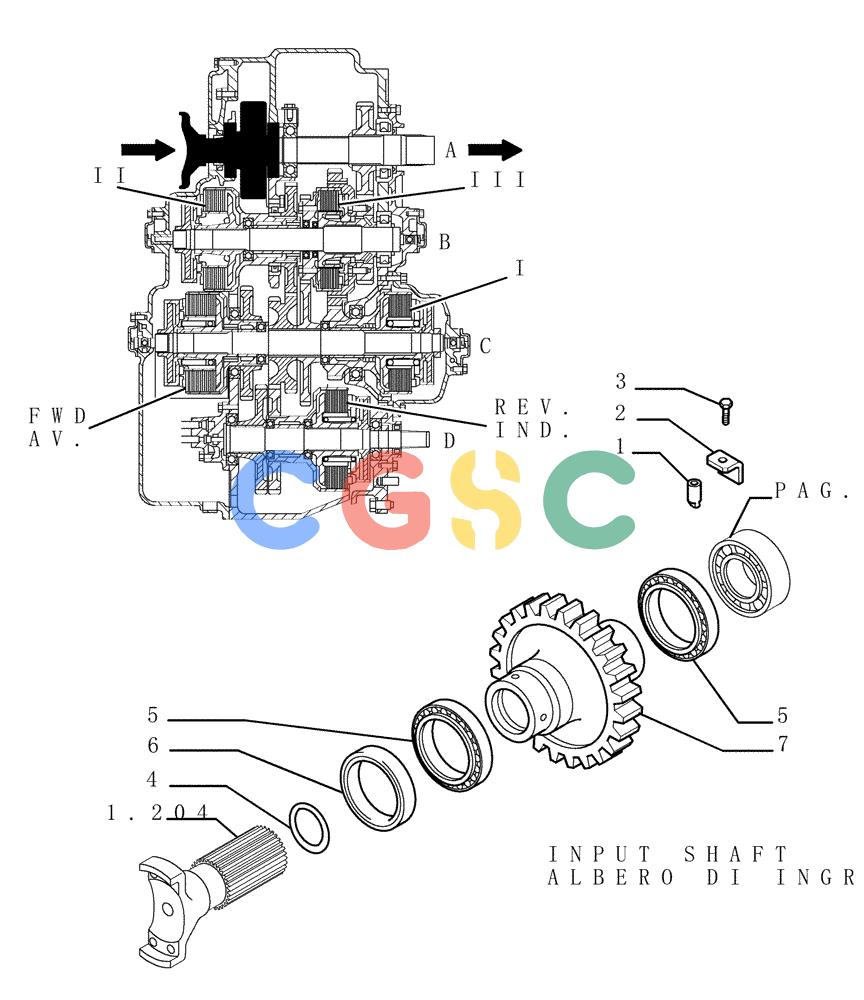

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (1.211[14]) - TRANSMISSION - COMPONENTS New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
379 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4966864 | [1] | PIN,16mm OD x 37mm L | LEC |
| 2. | 4970200 | [1] | BRACKET | LEC |
| 3. | 14233234 | [1] | SCREW,Hex, M10 x 1.25 x 20mm | LEC10X1,25X20 |
| 4. | 14464381 | [1] | O-RING,47.22mm ID x 2.137" OD x 3.53mm | LEC(M47.22 ID x 3.53 Thk) Superseded by part number: 17289781 |
| 5. | 20141040 | [2] | BALL BEARING,60mm ID x 110mm OD x 22mm W | TTF60X110X22 |
| 6. | 79102319 | [1] | GASKET | LEC- IN ALTERNATIVE Superseded by part number: 40000030 |
| 6. | 40000030 | [1] | SEAL | LEC60X80-IN ALTERNATIVE |
| 7. | 79032300 | [1] | GEAR | LEC |
