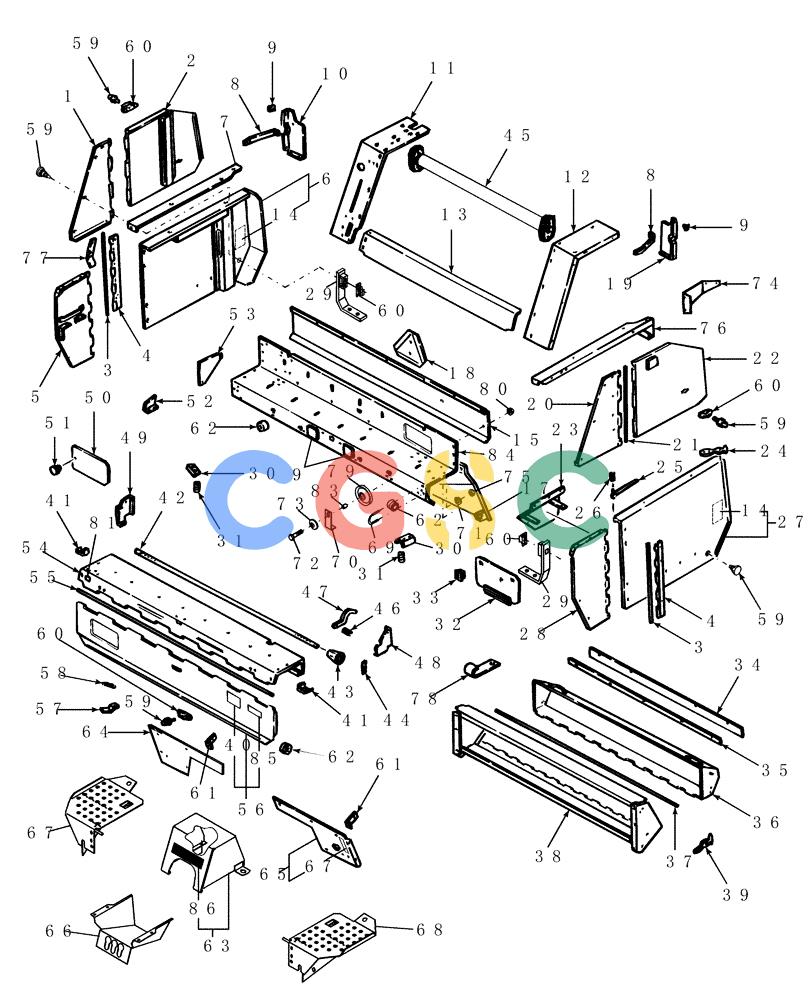

| 1. |
86636789
|
[1] |
SHIELD
|
NH
RH
|
| . . |
614-8016
|
[4] |
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 16043224
|
| 2. |
86619086
|
[1] |
DOOR ASSY.
|
NH
RH
|
| 3. |
86614490
|
[2] |
ROD
|
NH
Hinge
|
| 4. |
86614489
|
[2] |
HINGE
|
NH
|
| . . |
811-8020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| . . |
825-2408
|
[4] |
FLANGE NUT,M8 x 1.25, Flg, Cl 8
|
CAS
Superseded by part number: 86505868
|
| 5. |
86614487
|
[1] |
END ASSY.
|
NH
RH
|
| . . |
825-5148
|
[2] |
SERRATED NUT,M8, Flg Ser
|
CAS
Superseded by part number: 86505868
|
| 6. |
86630118
|
[1] |
DOOR ASSY.
|
NH
RH, Includes: Ref. 14
|
| 7. |
86637234
|
[1] |
STOP
|
NH
RH
|
| . . |
832-46408
|
[4] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| . . |
495-21044
|
[2] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| . . |
495-21056
|
[2] |
WASHER,1/2"
|
CAS
Superseded by part number: 72187265, 80700
|
| . . |
495-21019
|
[2] |
WASHER,#8
|
CAS
Superseded by part number: 280299, 72187261
|
| . . |
844-8020
|
[1] |
BOLT,Hvy Hex, M8 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804258
|
| 8. |
86628084
|
[2] |
BRACKET
|
NH
|
| 9. |
9617869
|
[15] |
BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk
|
NH
|
| 10. |
86637161
|
[1] |
FILLER
|
NH
RH
|
| . . |
87363
|
[1] |
WASHER,0.47" ID x 0.92" OD x 0.07" Thk
|
NH
|
| 11. |
86619292
|
[1] |
PLATE
|
NH
Wrapper, RH
|
| 12. |
86636757
|
[1] |
PLATE
|
NH
Wrapper, LH
|
| 13. |
86636648
|
[1] |
SHIELD
|
NH
Top
|
| 14. |
86631518
|
[1] |
DANGER DECAL
|
NH
English
|
| 14. |
86632801
|
[1] |
DECAL
|
NH
DANGER, French
|
| 15. |
86618411
|
[1] |
SHIELD
|
NH
Rear
|
| 16. |
86512569
|
[1] |
FLOOR
|
PA
Twine Box Superseded by part number: 86637204
|
| 17. |
86618405
|
[1] |
SHIELD
|
NH
|
| . . |
495-21038
|
[1] |
WASHER,5/16"
|
CAS
Superseded by part number: 80664, 72187263
|
| . . |
280736
|
[1] |
NUT,5/16"-18, GC
|
NH
|
| . . |
905-10025
|
[2] |
BOLT,Hex Flg, M10 x 25mm
|
CAS
Superseded by part number: 274251
|
| 18. |
86547710
|
[1] |
EMBLEM
|
ZED
KIT SMV
|
| . . |
614-6016
|
[2] |
BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd
|
CAS
Superseded by part number: 86508568
|
| . . |
825-5146
|
[2] |
SERRATED NUT,M6, Flg Ser
|
CAS
Superseded by part number: 86511444
|
| 19. |
86637159
|
[1] |
FILLER
|
NH
LH
|
| 20. |
86636755
|
[1] |
SHIELD
|
NH
LH
|
| 21. |
9804219
|
[1] |
ROD
|
NH
Hinge
|
| 22. |
86619087
|
[1] |
DOOR ASSY.
|
NH
LH
|
| 23. |
86618403
|
[1] |
PANEL ASSY.
|
NH
|
| 24. |
86000448
|
[4] |
LATCH
|
NH
|
| . . |
844-6020
|
[4] |
BOLT,Hvy Hex, M6 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 9804256
|
| . . |
495-21031
|
[4] |
WASHER,1/4"
|
CAS
Superseded by part number: 80701, 72187262
|
| . . |
832-46406
|
[4] |
NUT,M6 x 1, Cl 8
|
CAS
Superseded by part number: 353308
|
| 25. |
86551340
|
[2] |
BAR
|
NH
|
| . . |
495-11041
|
[2] |
WASHER,0.406" ID x 0.812" OD x 0.065" W
|
CAS
Superseded by part number: 87016
|
| . . |
11787
|
[1] |
FITTING,3/8"-24 Fem x 1/8" NPT
|
NH
Includes: 13362 Sleeve & 13367 Nut Superseded by part number: 84341119, 84341119, 87426476
|
| . . |
814-8050
|
[2] |
BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8
|
CAS
Superseded by part number: 43130
|
| . . |
814-6030
|
[2] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87317695
|
| 26. |
277552
|
[2] |
SPRING
|
NH
|
| 27. |
86630117
|
[1] |
DOOR ASSY.
|
NH
LH
|
| 28. |
86614485
|
[1] |
END ASSY.
|
NH
LH
|
| 29. |
86510335
|
[2] |
BRACKET
|
PA
Stop
|
| . . |
614-8020
|
[2] |
BOLT,Hex, M8 x 1.25 x 20mm
|
CAS
Superseded by part number: 120104
|
| . . |
322358
|
[2] |
BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk
|
NH
|
| . . |
825-1408
|
[2] |
NUT,M8, Cl 8
|
CAS
Superseded by part number: 43362
|
| 30. |
9820171
|
[2] |
BRACKET
|
NH
|
| . . |
412327
|
[4] |
CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8
|
NH
|
| . . |
825-2406
|
[4] |
FLANGE NUT,M6 x 1, Cl 8.8
|
CAS
Superseded by part number: 9804276
|
| 31. |
29840
|
[4] |
SPRING,Compression, 11.91mm OD x 25.4mm L
|
NH
|
| 32. |
9805610
|
[1] |
DOOR
|
NH
Superseded by part number: 89847910
|
| . . |
844-6016
|
[3] |
BOLT,Hvy Hex, M6 x 16mm, Cl 8.8
|
CAS
Superseded by part number: 9804255
|
| 33. |
632732
|
[2] |
LATCH
|
NH
Slide
|
| 34. |
9806306
|
[1] |
SHIELD
|
NH
|
| 35. |
86636885
|
[1] |
PLATE
|
NH
|
| 36. |
86619619
|
[1] |
LID
|
NH
|
| 37. |
9617448
|
[1] |
PIN,6.35mm OD x 1493.52mm L
|
NH
Hinge
|
| 38. |
86619615
|
[1] |
SUPPORT ASSY.
|
NH
|
| 40. |
86631516
|
[1] |
WARNING DECAL
|
NH
English
|
| 40. |
86632799
|
[1] |
DANGER DECAL
|
NH
WARNING, French
|
| 41. |
86636896
|
[2] |
STOP
|
NH
|
| 42. |
9804939
|
[1] |
SPINDLE
|
NH
|
| 43. |
9823255
|
[2] |
GUIDE
|
NH
|
| 44. |
86511448
|
[2] |
COTTER PIN,0.148" Dia x 3.31" L
|
NH
9/64" x 3-5/16" Superseded by part number: 80033778
|
| 45. |
86636897
|
[1] |
TUBE,1562 mm L
|
NH
|
| 46. |
26538
|
[1] |
SPRING
|
NH
Superseded by part number: 86611329
|
| 47. |
86628714
|
[1] |
LATCH
|
NH
|
| . . |
811-10060
|
[1] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 86512447
|
| . . |
37836
|
[1] |
SPACER,1" - 8 x 8"
|
NH
Split
|
| . . |
140045
|
[1] |
BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk
|
NH
|
| . . |
825-1410
|
[1] |
NUT,M10, Cl 8
|
CAS
Superseded by part number: 100016
|
| 48. |
86628712
|
[1] |
BRACKET
|
NH
LH
|
| . . |
814-6080
|
[1] |
BOLT,Hex, M6 x 1 x 80mm, Cl 8.8
|
CAS
Superseded by part number: 86508570
|
| 49. |
86628711
|
[1] |
BRACKET
|
NH
RH
|
| 50. |
86619298
|
[1] |
DOOR
|
NH
|
| 51. |
712735
|
[1] |
KNOB
|
NH
|
| 52. |
86619300
|
[1] |
SHIELD
|
NH
|
| 53. |
86551339
|
[7] |
DIVIDER
|
NH
|
| 54. |
86630115
|
[1] |
PLATE ASSY.
|
NH
Twine Box, Upper
|
| . . |
86611825
|
[1] |
WARNING DECAL
|
NH
WARNING, English
|
| . . |
86614084
|
[1] |
WARNING DECAL
|
NH
French
|
| 55. |
9614098
|
[1] |
ROD
|
NH
|
| 56. |
86630113
|
[1] |
DOOR ASSY.
|
NH
Includes: Decals, Ref. 85 & 86
|
| 57. |
9806113
|
[1] |
LATCH
|
NH
|
| . . |
43465
|
[1] |
CARRIAGE BOLT,Short NK, M8 x 30, Cl8.8, Full Thd
|
NH
Superseded by part number: 811-8030
|
| . . |
495-11034
|
[1] |
WASHER,5/16", SAE
|
CAS
Superseded by part number: 83918746, 72187257
|
| . . |
86979427
|
[1] |
SPACER
|
NH
|
| 58. |
12255
|
[1] |
SPRING
|
NH
1-3/4" Lg., Latch Return
|
| 59. |
E9NN16N738AB
|
[3] |
LATCH
|
NH
1/4 Turn Superseded by part number: 81866169
|
| 60. |
9840986
|
[3] |
CLIP
|
NH
|
| . . |
84821
|
[2] |
SCREW,Truss HD, #10 - 24 x 1/2"
|
NH
|
| . . |
492-11010
|
[2] |
LOCK WASHER,#10
|
CAS
Superseded by part number: 80684
|
| . . |
225-14110
|
[2] |
NUT,#10-24
|
CAS
Superseded by part number: 87304
|
| . . |
86520136
|
[1] |
RIVET,Aluminum, .196” Dia
|
NH
|
| 61. |
86627083
|
[2] |
ANGLE
|
NH
Mount
|
| 62. |
86543545
|
[4] |
GUIDE
|
NH
|
| . . |
28114
|
[4] |
U-BOLT
|
NH
#10-24 x 1-15/16"
|
| 63. |
86631044
|
[1] |
SHIELD
|
NH
PTO, Includes: Ref. 86
|
| . . |
284422
|
[2] |
BUMPER
|
NH
|
| 64. |
86624054
|
[1] |
SHIELD
|
NH
RH, W/ Tape
|
| 65. |
86631043
|
[1] |
SHIELD
|
NH
LH, Includes Ref. 87
|
| 66. |
86520316
|
[1] |
SHIELD
|
NH
|
| 67. |
86620935
|
[1] |
STEP
|
NH
LH
|
| . . |
811-10020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86512422
|
| . . |
495-11047
|
[4] |
WASHER,7/16", SAE
|
CAS
Superseded by part number: 87363
|
| . . |
492-11044
|
[4] |
LOCK WASHER,7/16"
|
CAS
Superseded by part number: 81547
|
| 68. |
86620936
|
[1] |
STEP
|
NH
RH
|
| 70. |
86580794
|
[2] |
GUIDE
|
NH
Twine
|
| 72. |
43129
|
[2] |
BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8
|
NH
Superseded by part number: 16044024
|
| 74. |
86637390
|
[1] |
BRACKET
|
NH
|
| 76. |
86637191
|
[1] |
STOP
|
NH
LH
|
| 77. |
86628666
|
[1] |
SUPPORT
|
NH
|
| . . |
412430
|
[2] |
CARRIAGE BOLT,Sq Nk, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
|
NH
|
| 78. |
9800151
|
[1] |
BAR PLATE
|
NH
|
| 79. |
768632
|
[2] |
IDLER WHEEL,100.84mm OD x 20.32mm W
|
NH
Pulley
|
| 81. |
128104
|
[1] |
BUMPER
|
NH
|
| 83. |
86580795
|
[2] |
SPACER
|
NH
Pulley
|
| 84. |
86637205
|
[1] |
PLATE ASSY.
|
NH
Floor
|
| 85. |
86622073
|
[1] |
WARNING DECAL
|
NH
English
|
| 85. |
86622074
|
[1] |
WARNING DECAL
|
NH
WARNING, French
|
| 86. |
9826789
|
[1] |
DANGER DECAL,180mm x 90mm H
|
NH
DANGER, English
|
| 86. |
9827448
|
[1] |
DANGER DECAL
|
NH
French
|
| 87. |
86547782
|
[2] |
REFLECTOR,YELLOW
|
NH
Yellow Reflective
|
