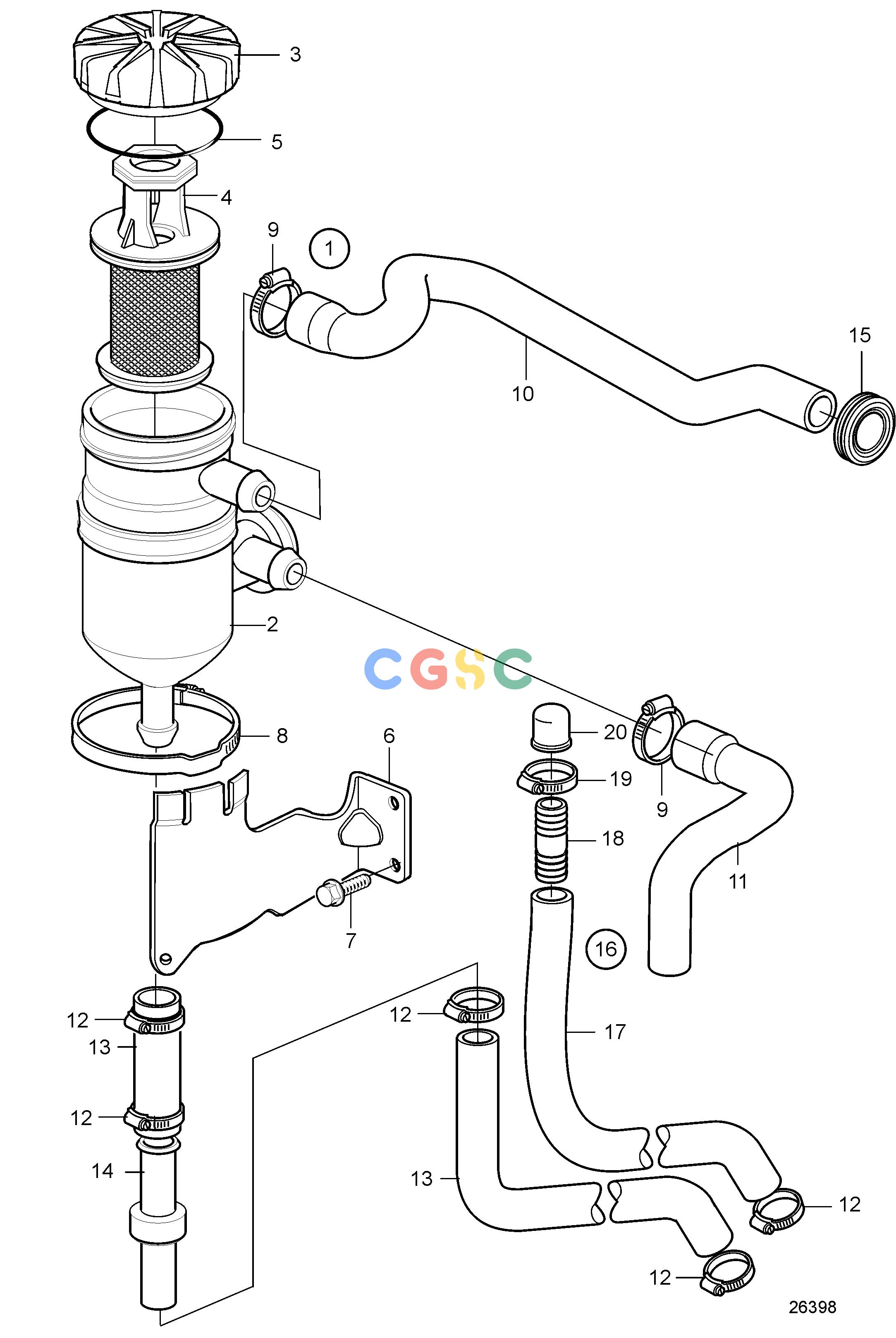

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FIntake and Exhaust SystemCrankcase VentilationEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
954 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3584144
|
[1] |
Filter
|
|
| 2. |
|
|
|
|
| 3. |
|
|
|
|
| 4. |
3584145
|
[1] |
Insert
|
|
| 5. |
3584461
|
[1] |
O-ring
|
|
| 6. |
21660058
|
[1] |
Bracket
|
|
| 7. |
946440
|
[2] |
Flange screw
|
|
| 8. |
3586117
|
[1] |
Hose clamp
|
|
| 9. |
994559
|
[2] |
Hose clamp
|
|
| 10. |
21677715
|
[1] |
Hose
|
|
| 11. |
21675637
|
[1] |
Hose
|
|
| 12. |
961664
|
[5] |
Hose clamp
|
|
| 13. |
3885542
|
[1] |
Hose
|
|
| 14. |
3887102
|
[1] |
Non-return valve
|
|
| 15. |
984951
|
[1] |
Grommet
|
|
| 16. |
3849236
|
[1] |
Hose assembly
|
|
| 17. |
3885542
|
[1] |
Hose
|
|
| 18. |
991127
|
[1] |
Hose nipple
|
|
| 19. |
978174
|
[1] |
Hose clamp
|
|
| 20. |
842235
|
[1] |
Cap
|
|
