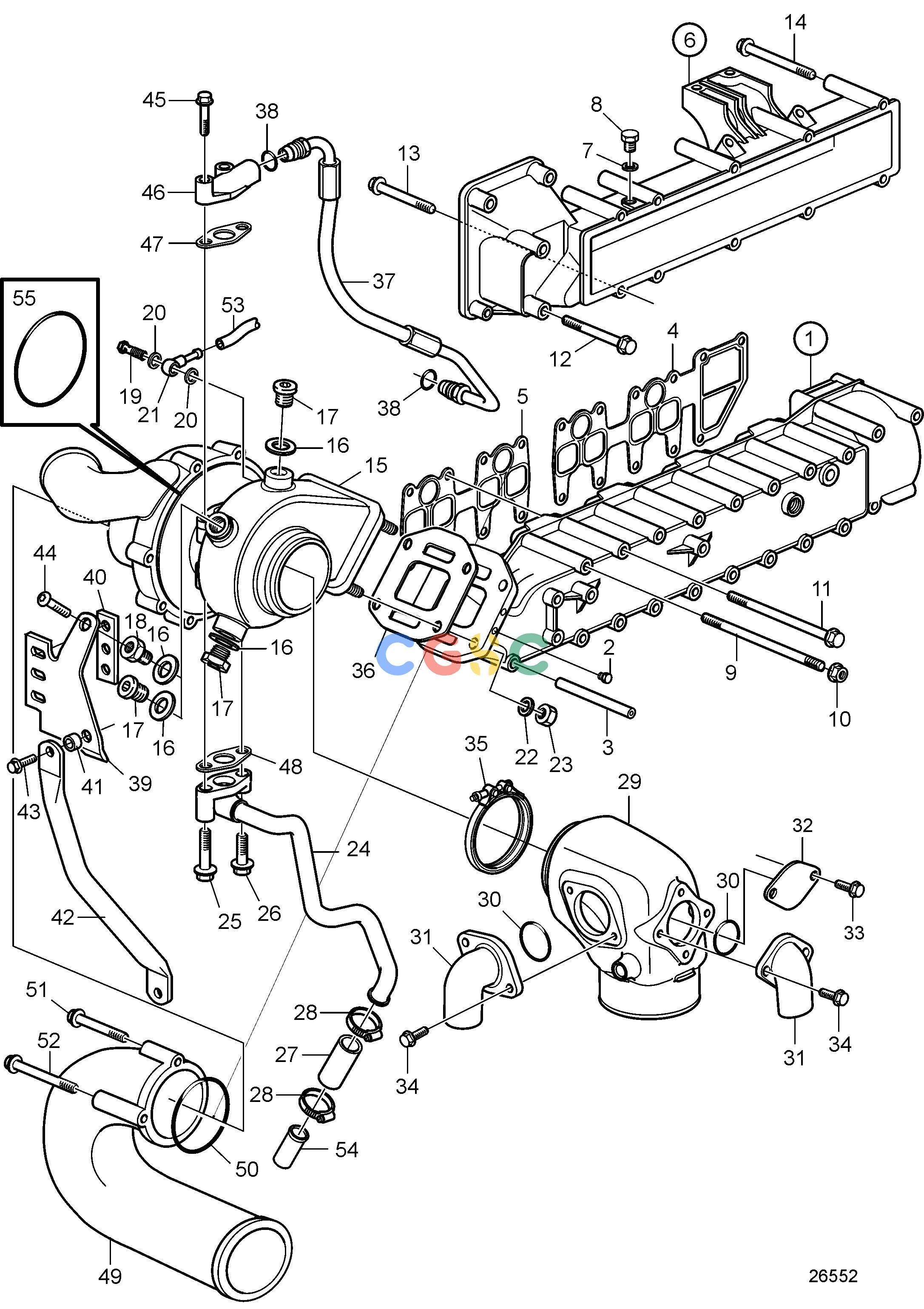

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FIntake and Exhaust SystemTurbo, Induction and Exhaust ManifoldEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
161 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3841197
|
[1] |
Exhaust manifold
|
|
| 2. |
479979
|
[1] |
Plug
|
|
| 3. |
3583116
|
[1] |
Spring pin
|
|
| 4. |
3583336
|
[1] |
Gasket
|
|
| 5. |
3582725
|
[1] |
Gasket
|
|
| 6. |
3808941
|
[1] |
Inlet manifold
|
|
| 7. |
11994
|
[1] |
Gasket
|
|
| 8. |
966142
|
[1] |
Plug
|
|
| 9. |
948194
|
[4] |
Stud
|
|
| 10. |
945408
|
[4] |
Flange nut
|
|
| 11. |
968999
|
[16] |
Flange screw
|
L=130mm
|
| 12. |
947760
|
[2] |
Flange screw
|
|
| 13. |
965184
|
[9] |
Flange screw
|
L=100mm
|
| 14. |
965182
|
[1] |
Flange screw
|
L=80mm
|
| 15. |
3802150
|
[1] |
Turbocharger
|
|
| 15. |
|
|
|
|
| 16. |
947627
|
[2] |
Gasket
|
|
| 17. |
861551
|
[1] |
Plug
|
|
| 18. |
861646
|
[2] |
Plug
|
|
| 19. |
969299
|
[1] |
Hollow screw
|
|
| 20. |
11994
|
[2] |
Gasket
|
|
| 21. |
858750
|
[1] |
Banjo nipple
|
|
| 22. |
955895
|
[4] |
Washer
|
|
| 23. |
991657
|
[4] |
Hexagon nut
|
|
| 24. |
3582967
|
[1] |
Oil return pipe
|
|
| 25. |
948217
|
[1] |
Flange screw
|
|
| 26. |
945444
|
[1] |
Flange screw
|
|
| 27. |
21882797
|
[1] |
Hose
|
|
| 28. |
994559
|
[2] |
Hose clamp
|
|
| 29. |
21684826
|
[1] |
Exhaust pipe elbow
|
|
| 30. |
969415
|
[2] |
O-ring
|
|
| 31. |
21450768
|
[2] |
Connector
|
|
| 32. |
3584006
|
[1] |
Cover
|
|
| 33. |
946934
|
[2] |
Flange screw
|
|
| 34. |
948356
|
[4] |
Flange screw
|
|
| 35. |
21325765
|
[1] |
V-clamp
|
|
| 36. |
21452196
|
[1] |
Gasket
|
|
| 37. |
40005392
|
[1] |
Oil pressure pipe
|
|
| 38. |
976971
|
[2] |
O-ring
|
|
| 39. |
3586073
|
[1] |
Bracket
|
|
| 40. |
3586070
|
[1] |
Nut retainer
|
|
| 41. |
860699
|
[1] |
Spacer sleeve
|
|
| 42. |
3586071
|
[1] |
Support
|
|
| 43. |
946472
|
[1] |
Flange screw
|
|
| 44. |
946471
|
[1] |
Flange screw
|
|
| 45. |
947760
|
[2] |
Flange screw
|
|
| 46. |
8192268
|
[1] |
Flange
|
|
| 47. |
420641
|
[1] |
Plane gasket
|
|
| 48. |
860105
|
[1] |
Gasket
|
|
| 49. |
3812945
|
[1] |
Connector
|
|
| 50. |
949841
|
[1] |
O-ring
|
|
| 51. |
965180
|
[1] |
Flange screw
|
|
| 52. |
968842
|
[2] |
Flange screw
|
|
| 53. |
942700
|
[1] |
Hose
|
L=600mm
|
| 54. |
3583622
|
[1] |
Hose connection
|
|
| 55. |
22916981
|
[1] |
O-ring
|
|
