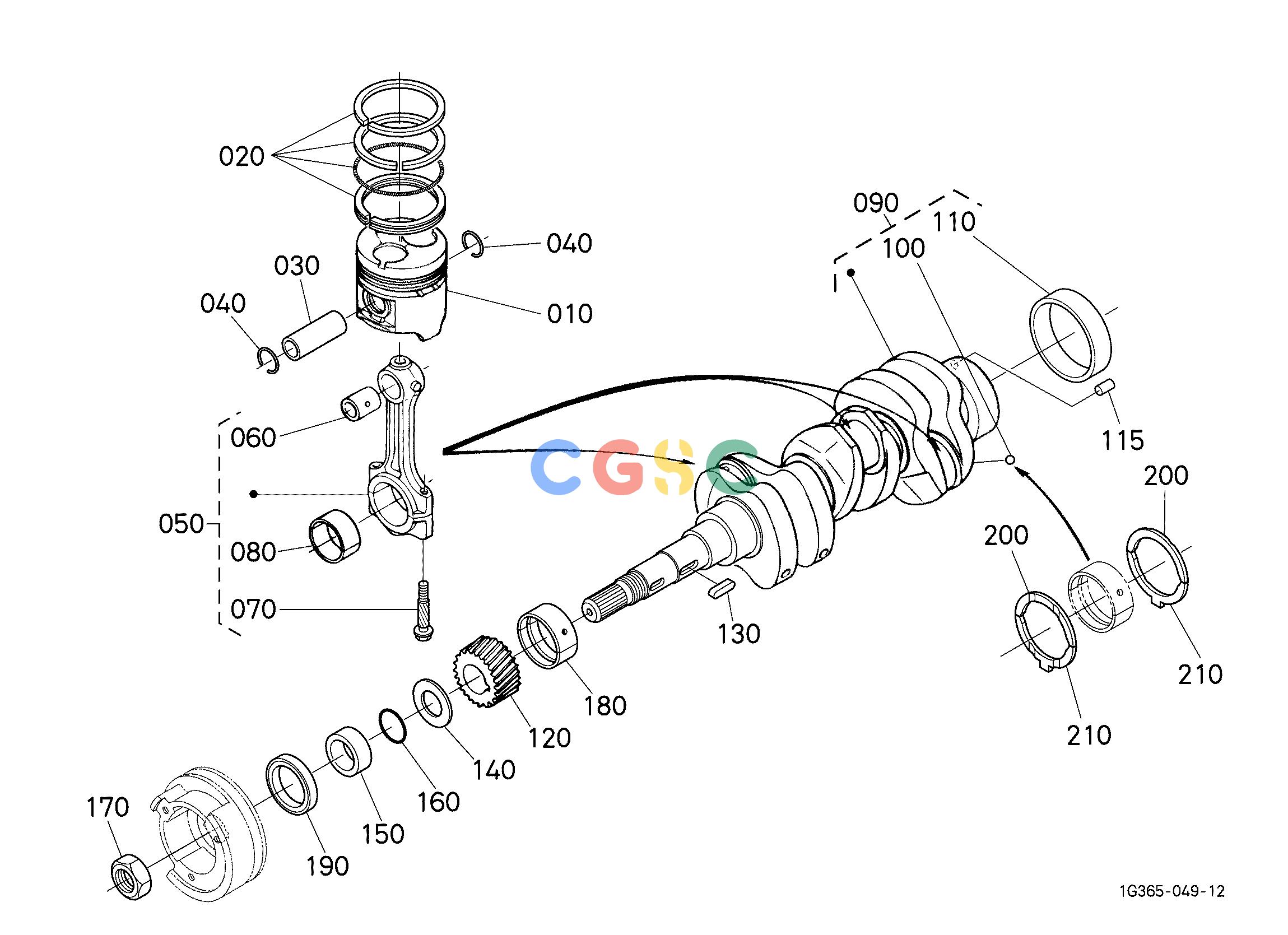

日立零件查询（CC135C-3A）PISTON AND CRANKSHAFT Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
180 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 010. | KBT1G46621110 | [3] | PISTON | STD |
| 010. | KBT1G46621900 | [3] | PISTON | +0.25mm |
| 020. | KBT1A09121050 | [3] | ASSY PISTON RING | STD |
| 020. | KBT1A09121090 | [3] | ASSY PISTON RING | +0.25mm |
| 030. | KBT1A02121310 | [3] | PIN,PISTON | |
| 040. | KBT1G27921330 | [6] | CIR CLIP,INTERNAL | |
| 050. | KBT1731122010 | [3] | ASSY CONNECTING ROD | |
| 050. | KBT1731122012 | [3] | ASSY ROD,CONNECTING | 4 |
| 060. | KBT1733121980 | [3] | BUSH,PISTON PIN | |
| 070. | KBT1552122142 | [6] | BOLT,CONNECTING ROD | |
| 080. | KBT1731122310 | [3] | METAL,CRANKPIN | STD SET |
| 080. | KBT1731122312 | [3] | METAL,CRANKPIN | 4 STD SET |
| 080. | KBT1731122970 | [3] | METAL,CRANKPIN | -0.20mm SET |
| 080. | KBT1731122980 | [3] | METAL,CRANKPIN | -0.40mm SET |
| 090. | KBT1A05123013 | [1] | COMP.CRANKSHAFT | |
| 090. | KBT1A05123015 | [1] | COMP.CRANKSHAFT | 4 |
| 090. | KBT1A05123017 | [1] | COMP.CRANKSHAFT | 3 |
| 100. | KBT0771500401 | [3] | BALL | |
| 110. | KBT1920223280 | [1] | BUSH,CRANKSHAFT | |
| 115. | KBT1A02123190 | [1] | PIN,STRAIGHT | |
| 115. | KBT1A02123192 | [1] | PIN,STRAIGHT | 3 |
| 120. | KBT1K32224110 | [1] | GEAR,CRANKSHAFT | |
| 130. | KBT0571200728 | [1] | KEY,FEATHER | |
| 140. | KBT1547123312 | [1] | SLINGER,OIL | |
| 150. | KBT1920223250 | [1] | COLLAR,CRANKSHAFT | |
| 160. | KBT1920296760 | [1] | O RING | |
| 170. | KBT1522123360 | [1] | NUT,CRANKSHAFT | |
| 180. | KBT1A09123470 | [1] | METAL,CRANKSHAFT | STD |
| 180. | KBT1A09123472 | [1] | METAL,CRANKSHAFT | 4 STD |
| 180. | KBT1A09123910 | [1] | METAL,CRANKSHAFT | -0.20mm |
| 180. | KBT1A09123920 | [1] | METAL,CRANKSHAFT | -0.40mm |
| 190. | KBT1920204140 | [1] | SEAL,OIL | |
| 200. | KBT1A09123530 | [2] | METAL,SIDE | STD |
| 200. | KBT1A09123532 | [2] | METAL,SIDE | 4 STD |
| 200. | KBT1A09123950 | [2] | METAL,SIDE | +0.20mm |
| 200. | KBT1A09123960 | [2] | METAL,SIDE | +0.40mm |
| 210. | KBT1A09123540 | [2] | METAL,SIDE | STD |
| 210. | KBT1A09123542 | [2] | METAL,SIDE | 4 STD |
| 210. | KBT1A09123970 | [2] | METAL,SIDE | +0.20mm |
| 210. | KBT1A09123980 | [2] | METAL,SIDE | +0.40mm |
