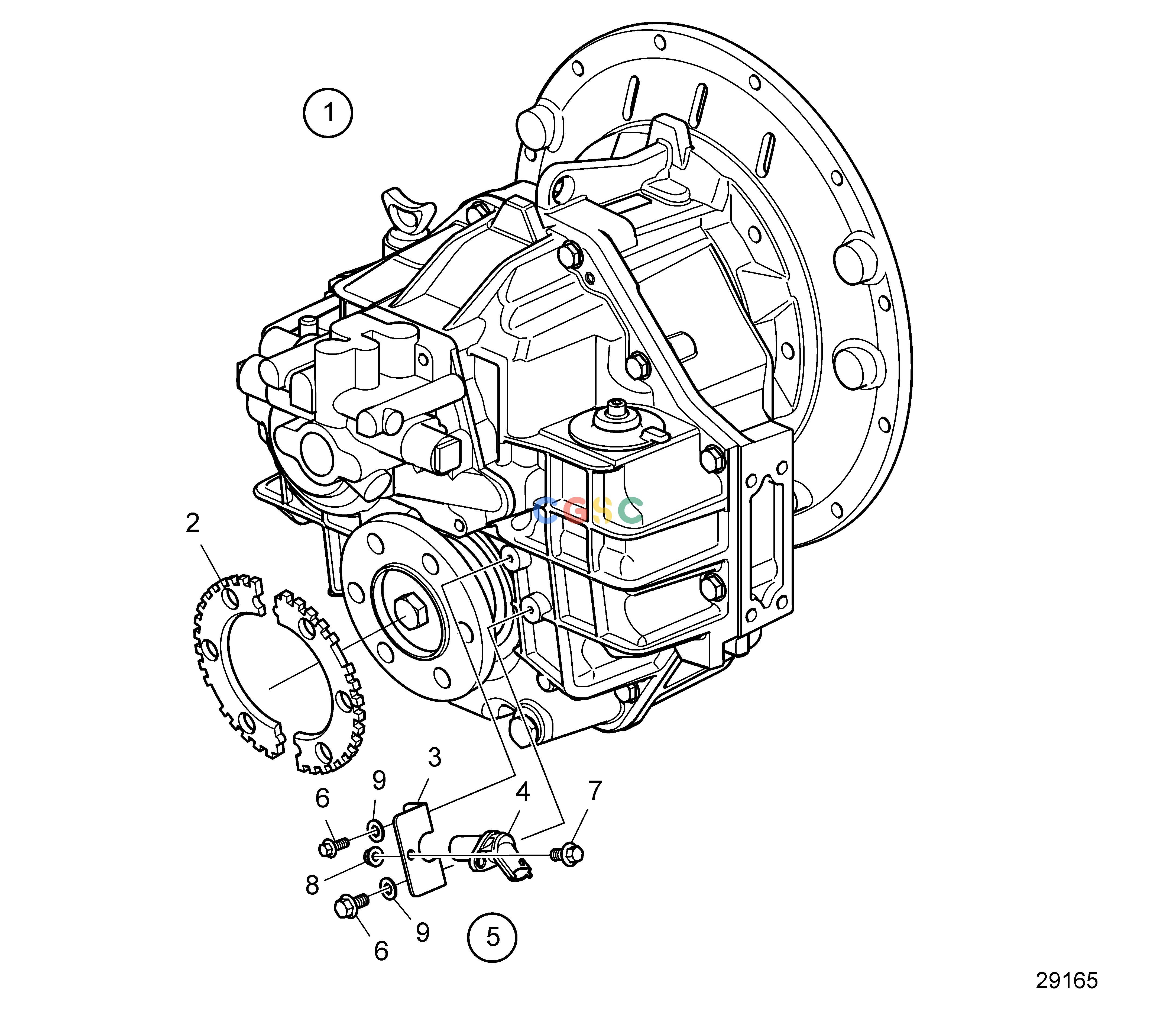

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FTransmissionsConnecting Components for Low Speed Reverse Gear HS80AE, HS85AEEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
633 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21133409
|
[1] |
Tachometer sensor
|
|
| 2. |
3842948
|
[2] |
Sprocket wheel
|
|
| 3. |
3849345
|
[1] |
Bracket
|
|
| 4. |
21426987
|
[1] |
Speed monitor
|
|
| 5. |
21133388
|
[1] |
Mounting kit
|
|
| 6. |
984733
|
[2] |
Flange screw
|
|
| 7. |
984725
|
[1] |
Flange screw
|
|
| 8. |
990949
|
[1] |
Flange lock nut
|
|
| 9. |
955894
|
[2] |
Washer
|
|
