沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FTransmissionsConnecting Kit Reverse Gear HS63IVEEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
490 次

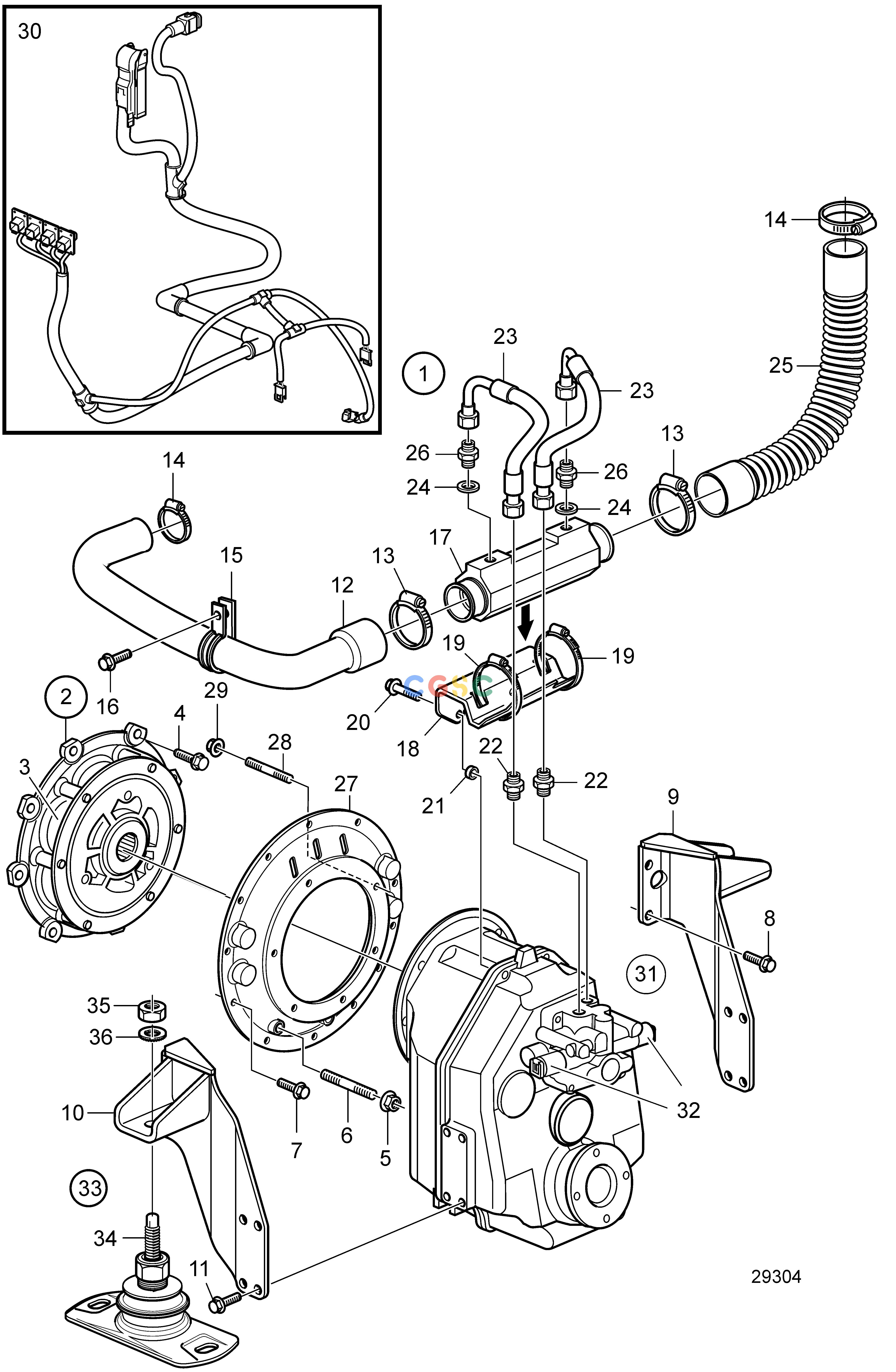

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
|
|
|
| 2. |
21111688
|
[1] |
Flexible coupling
|
|
| 3. |
21509613
|
[1] |
Roller kit
|
Kit include 4pcs rubber rollers
|
| 4. |
965185
|
[8] |
Flange screw
|
|
| 5. |
953067
|
[2] |
Stud
|
L=45mm
|
| 6. |
971095
|
[2] |
Flange nut
|
|
| 7. |
946752
|
[10] |
Flange screw
|
L=35mm
|
| 8. |
965225
|
[4] |
Flange screw
|
L=35mm
|
| 9. |
3595292
|
[1] |
Bracket
|
S.B
|
| 10. |
3595300
|
[1] |
Bracket
|
P
|
| 11. |
965191
|
[8] |
Flange screw
|
L=30mm
|
| 12. |
3889729
|
[1] |
Hose
|
|
| 13. |
961672
|
[2] |
Hose clamp
|
|
| 14. |
961671
|
[2] |
Hose clamp
|
|
| 15. |
969354
|
[1] |
Clamp
|
|
| 16. |
946440
|
[1] |
Flange screw
|
L=16mm
|
| 17. |
3584435
|
[1] |
Oil cooler
|
|
| 18. |
3584475
|
[1] |
Bracket
|
|
| 19. |
943481
|
[2] |
Hose clamp
|
|
| 20. |
965220
|
[2] |
Flange screw
|
L=45mm
|
| 21. |
842930
|
[2] |
Spacer sleeve
|
|
| 22. |
941750
|
[2] |
Nipple
|
|
| 23. |
3584428
|
[2] |
Hose
|
|
| 24. |
976930
|
[2] |
Gasket
|
|
| 25. |
3588788
|
[1] |
Hose
|
|
| 26. |
963948
|
[2] |
Nipple
|
|
| 27. |
3584253
|
[1] |
Cover
|
|
| 28. |
22736345
|
[6] |
Stud
|
|
| 29. |
971095
|
[6] |
Flange nut
|
|
| 30. |
21865858
|
[1] |
Wiring harness
|
|
| 30. |
22390854
|
[1] |
Wiring harness
|
SN -A527006
|
| 30. |
22679225
|
[1] |
Wiring harness
|
SN A527007-, With old Reverse gear before SN: -A517543 you need Solenoid valve kit 22826350
|
| 31. |
22826350
|
[1] |
Solenoid valve
|
|
| 32. |
22774568
|
[2] |
Solenoid valve
|
|
| 33. |
22006200
|
[2] |
Rubber cushion
|
V-drive
|
| 34. |
21717422
|
[2] |
Rubber cushion
|
|
| 35. |
955786
|
[1] |
Hexagon nut
|
|
| 36. |
847766
|
[1] |
Lock washer
|
|
