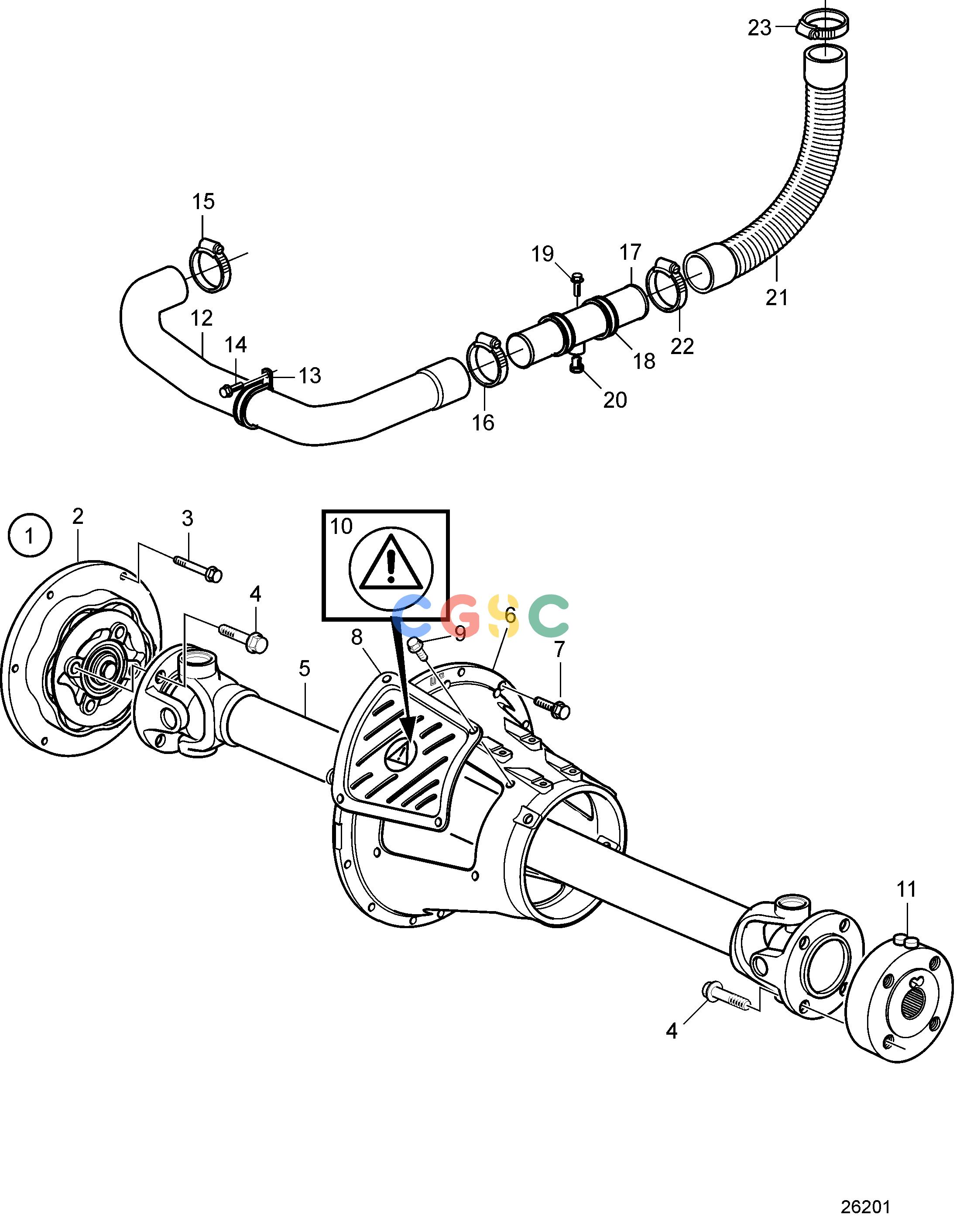

沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FTransmissionsJack Shaft, Connecting ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
277 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
21393521
|
[1] |
Flexible coupling
|
|
| 2. |
21509615
|
[1] |
Roller kit
|
Kit include 6pcs rubber rollers
|
| 3. |
965186
|
[8] |
Flange screw
|
|
| 4. |
465826
|
[8] |
Flange screw
|
|
| 5. |
3861048
|
[1] |
Propeller shaft
|
L=335-405mm
|
| 5. |
3818295
|
[1] |
Propeller shaft
|
L=570-650mm
|
| 5. |
3818293
|
[1] |
Propeller shaft
|
L=670-750mm
|
| 5. |
3818292
|
[1] |
Propeller shaft
|
L=770-850mm
|
| 5. |
3818291
|
[1] |
Propeller shaft
|
L=870-950mm
|
| 5. |
3818290
|
[1] |
Propeller shaft
|
L=970-1050mm
|
| 5. |
3818289
|
[1] |
Propeller shaft
|
L=1070-1150mm
|
| 5. |
3818288
|
[1] |
Propeller shaft
|
L=1170-1250mm
|
| 5. |
3817454
|
[1] |
Propeller shaft
|
L=1270-1350mm
|
| 5. |
3817453
|
[1] |
Propeller shaft
|
L=1370-1450mm
|
| 5. |
3817452
|
[1] |
Propeller shaft
|
L=1470-1550mm
|
| 5. |
3817451
|
[1] |
Propeller shaft
|
L=1570-1650mm
|
| 5. |
3817450
|
[1] |
Propeller shaft
|
L=1670-1750mm
|
| 6. |
21657788
|
[1] |
Protecting casing
|
|
| 7. |
946752
|
[12] |
Flange screw
|
M10x35mm
|
| 8. |
3862871
|
[2] |
Protecting screen
|
|
| 9. |
968476
|
[8] |
Flange screw
|
|
| 10. |
3817024
|
[2] |
Decal
|
|
| 11. |
3862153
|
[1] |
Flange
|
|
| 12. |
3808080
|
[1] |
Hose
|
|
| 13. |
969354
|
[1] |
Clamp
|
|
| 14. |
946440
|
[1] |
Flange screw
|
|
| 15. |
961671
|
[1] |
Hose clamp
|
|
| 16. |
961672
|
[1] |
Hose clamp
|
|
| 17. |
3808510
|
[1] |
Dummy
|
|
| 18. |
984474
|
[2] |
Clamp
|
|
| 19. |
945444
|
[2] |
Flange screw
|
|
| 20. |
861551
|
[1] |
Plug
|
|
| 21. |
3588788
|
[1] |
Hose
|
|
| 22. |
961672
|
[1] |
Hose clamp
|
|
| 23. |
961671
|
[1] |
Hose clamp
|
|
