沃尔沃零件查询D4-180I-F; D4-225A-F; D4-225I-F; D4-260A-F; D4-260D-F; D4-260I-F; D4-300A-F; D4-300D-F; D4-300I-FTransmissionsSteering Motor EVC-EEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
951 次

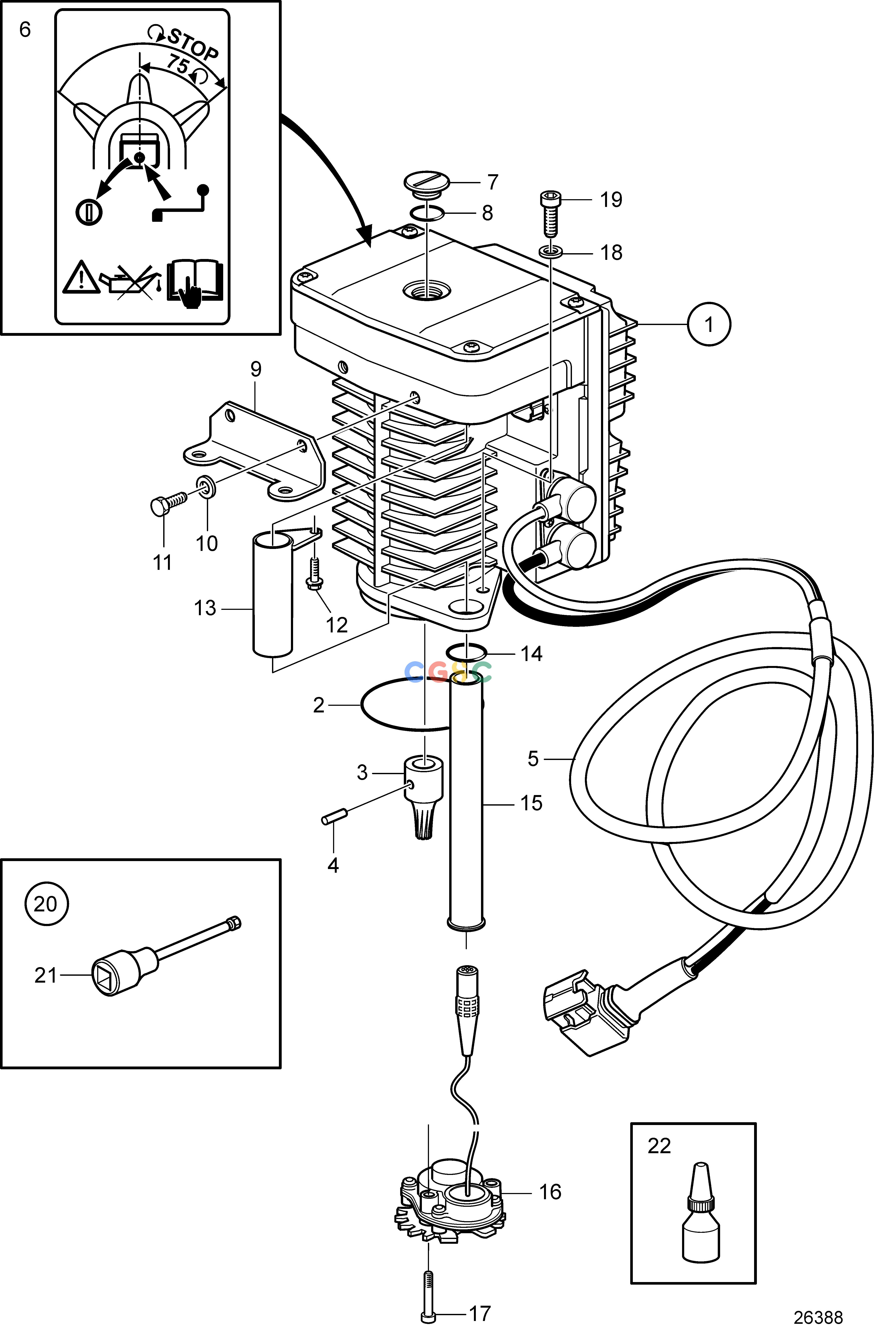

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3801475
|
[1] |
Servo unit
|
EVC-E
|
| 1. |
3809285
|
[1] |
Software
|
Vodia-programming. This p/n can not be ordered, but will be used for invoicing.
|
| 1. |
3809286
|
[1] |
Software
|
Warehouse programming. This p/n can not be ordered, but will be used for invoicing.
|
| 2. |
925258
|
[1] |
O-ring
|
|
| 3. |
3588108
|
[1] |
Sun gear
|
|
| 4. |
949796
|
[1] |
Spring pin
|
|
| 5. |
21586516
|
[1] |
Wiring harness
|
Std
|
| 5. |
21586874
|
[1] |
Wiring harness
|
Jackshaft
|
| 6. |
3809619
|
[1] |
Decal
|
|
| 7. |
3809775
|
[1] |
Plug
|
|
| 8. |
955994
|
[1] |
O-ring
|
|
| 9. |
21408647
|
[1] |
Bracket
|
|
| 10. |
941670
|
[2] |
Washer
|
|
| 11. |
984697
|
[2] |
Hexagon screw
|
|
| 12. |
945358
|
[1] |
Flange screw
|
|
| 13. |
3587842
|
[1] |
Tube
|
|
| 14. |
949657
|
[1] |
O-ring
|
|
| 15. |
3862558
|
[1] |
Tube
|
|
| 16. |
21147917
|
[1] |
Sensor kit
|
|
| 17. |
959207
|
[2] |
Hex. socket screw
|
|
| 18. |
946541
|
[2] |
Hex. socket screw
|
|
| 19. |
941670
|
[2] |
Washer
|
|
| 20. |
21673149
|
[1] |
Safety box
|
|
| 21. |
3863070
|
[1] |
Tool
|
|
| 22. |
9434520
|
[1] |
Locking fluid
|
Use for area between resolver and SUS.
|
