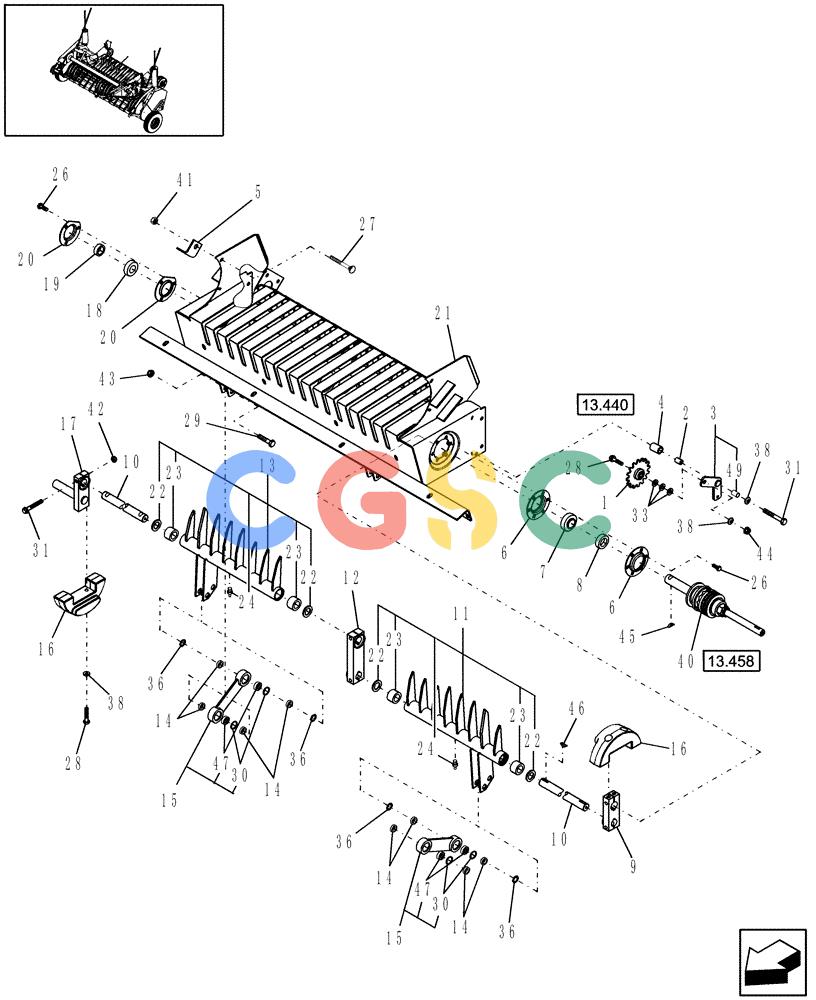

| 1. |
165271
|
[1] |
DRIVEN SPROCKET
|
NH
Idler Superseded by part number: 86627870, 80165271
|
| 2. |
86631123
|
[1] |
SPACER,12.95mm ID x 19.05mm OD x 27mm L
|
NH
1-1/16" Lg
|
| 3. |
86636654
|
[1] |
ARM
|
NH
|
| 4. |
86705271
|
[1] |
SPACER,13.5mm ID x 25.4mm OD x 34mm L
|
NH
|
| 5. |
66463
|
[4] |
BRACKET
|
PA
Spring Mount Superseded by part number: 87657039
|
| 6. |
86635012
|
[2] |
FLANGE
|
NH
Bearing
|
| 7. |
571588R92
|
[1] |
BALL BEARING,1.3755" ID x 72 mm OD x 1"
|
IH
Superseded by part number: 47066
|
| 8. |
517645R11
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47577188
|
| 9. |
86625655
|
[1] |
ARM
|
NH
|
| 9. |
87038896
|
[1] |
CRANK
|
PA
LH Superseded by part number: 87643649
|
| 10. |
87021230
|
[2] |
SHAFT
|
NH
1.18" Dia.
|
| 10. |
87038882
|
[2] |
SHAFT
|
PA
1.50" Dia.
|
| 11. |
86607438
|
[1] |
TUBE,708.10 mm L
|
NH
LH
|
| 11. |
87038885
|
[1] |
TUBE,47.66 mm ID x 54 mm OD x 708.1 mm L
|
PA
LH
|
| 12. |
86607442
|
[1] |
ARM
|
NH
|
| 12. |
87038893
|
[1] |
CRANK
|
PA
Superseded by part number: 87644269
|
| 13. |
86607439
|
[1] |
TUBE,708.10 mm L
|
NH
RH
|
| 13. |
87038884
|
[1] |
TUBE,47.66 mm ID x 54 mm OD x 708.1 mm L
|
PA
RH
|
| 14. |
718013
|
[8] |
SPACER
|
NH
|
| 15. |
86634527
|
[2] |
ARM
|
NH
Superseded by part number: 87043492
|
| 16. |
86627115
|
[2] |
WEIGHT
|
NH
Superseded by part number: 87644331
|
| 17. |
86620870
|
[1] |
BLOCK
|
NH
Superseded by part number: 87515101
|
| 17. |
87038899
|
[1] |
CRANK
|
PA
RH Superseded by part number: 87644334
|
| 18. |
557995R11
|
[1] |
COLLAR
|
IH
Locking, Includes: Set Screw Superseded by part number: 47508396
|
| 19. |
617668R92
|
[1] |
BEARING ASSY,1.2505" ID x 62 mm OD x 0.9375"
|
IH
Ball Superseded by part number: 84484181
|
| 20. |
87758679
|
[2] |
FLANGED BEARING
|
PA
Superseded by part number: 87758678
|
| 21. |
86622601
|
[1] |
FRAME
|
PA
Stuffer Feeder
|
| 22. |
86606367
|
[4] |
SEAL,30mm ID x 42mm OD x 7mm Thk
|
NH
|
| 22. |
9609085
|
[4] |
SEAL
|
ZED
|
| 23. |
86606298
|
[4] |
BUSHING,30.12mm ID x 42.11mm OD x 42mm L
|
NH
|
| 23. |
87038966
|
[4] |
BUSHING,220mm ID x 270mm OD x 93mm L
|
PA
|
| 24. |
219-87
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
Superseded by part number: 87414
|
| 26. |
844-10020
|
[9] |
BOLT,Hvy Hex, M10 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86050286
|
| 27. |
811-8020
|
[4] |
CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8
|
CAS
Superseded by part number: 86507486
|
| 28. |
814-12060
|
[5] |
BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8
|
CAS
Superseded by part number: 9706693
|
| 29. |
413-1248
|
[4] |
BOLT,Hex, 3/4" - 10 x 3", Gr 5
|
CAS
Superseded by part number: 87337
|
| 30. |
100-21175
|
[4] |
SNAP RING,1.75", Int, #175
|
CAS
Superseded by part number: 66967
|
| 31. |
827-12080
|
[6] |
BOLT,Hex, M12 x 1.75 x 80mm, Cl 10.9
|
CAS
Superseded by part number: 412085
|
| 33. |
495-11053
|
[1] |
WASHER,1/2", SAE
|
CAS
Superseded by part number: 87364, 72187259
|
| 36. |
600083
|
[8] |
WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk
|
NH
3/4"ID x 1-1/8"OD
|
| 38. |
140046
|
[6] |
BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk
|
NH
|
| 40. |
0C
|
[1] |
ORDER COMPONENTS
|
NH
Clutch
|
| 41. |
832-46408
|
[4] |
NUT,M8 x 1.25, Cl 8
|
CAS
Superseded by part number: 86528579
|
| 42. |
412672
|
[5] |
NUT,Hex, M12 x 1.75, Cl 10
|
WIN
|
| 43. |
231-41412
|
[4] |
NUT,3/4"-10, GB
|
CAS
Superseded by part number: 280375
|
| 44. |
825-1412
|
[1] |
NUT,M12, Cl 8
|
CAS
Superseded by part number: 9706685
|
| 45. |
126-33
|
[1] |
WOODRUFF KEY,#D, 5/16" x 1 1/4"
|
CAS
Superseded by part number: 87831
|
| 46. |
87038548
|
[4] |
WOODRUFF KEY
|
PA
8mm x 11mm
|
| 46. |
126-133
|
[4] |
WOODRUFF KEY,#D, 5/16" x 1 1/4", HT
|
CAS
Superseded by part number: 87831
|
| 47. |
9807906
|
[4] |
BALL BEARING,0.7504" ID x 1.7805" OD x 0.61"
|
GI
Superseded by part number: 87029275
|
| 48. |
87040383
|
[1] |
KIT
|
PA
Stuffer Fork Superseded by part number: 87357627
|
| 49. |
87040968
|
[1] |
BUSHING
|
PA
.752" ID x .875" OD x .750" Lg. Superseded by part number: 86573067
|
