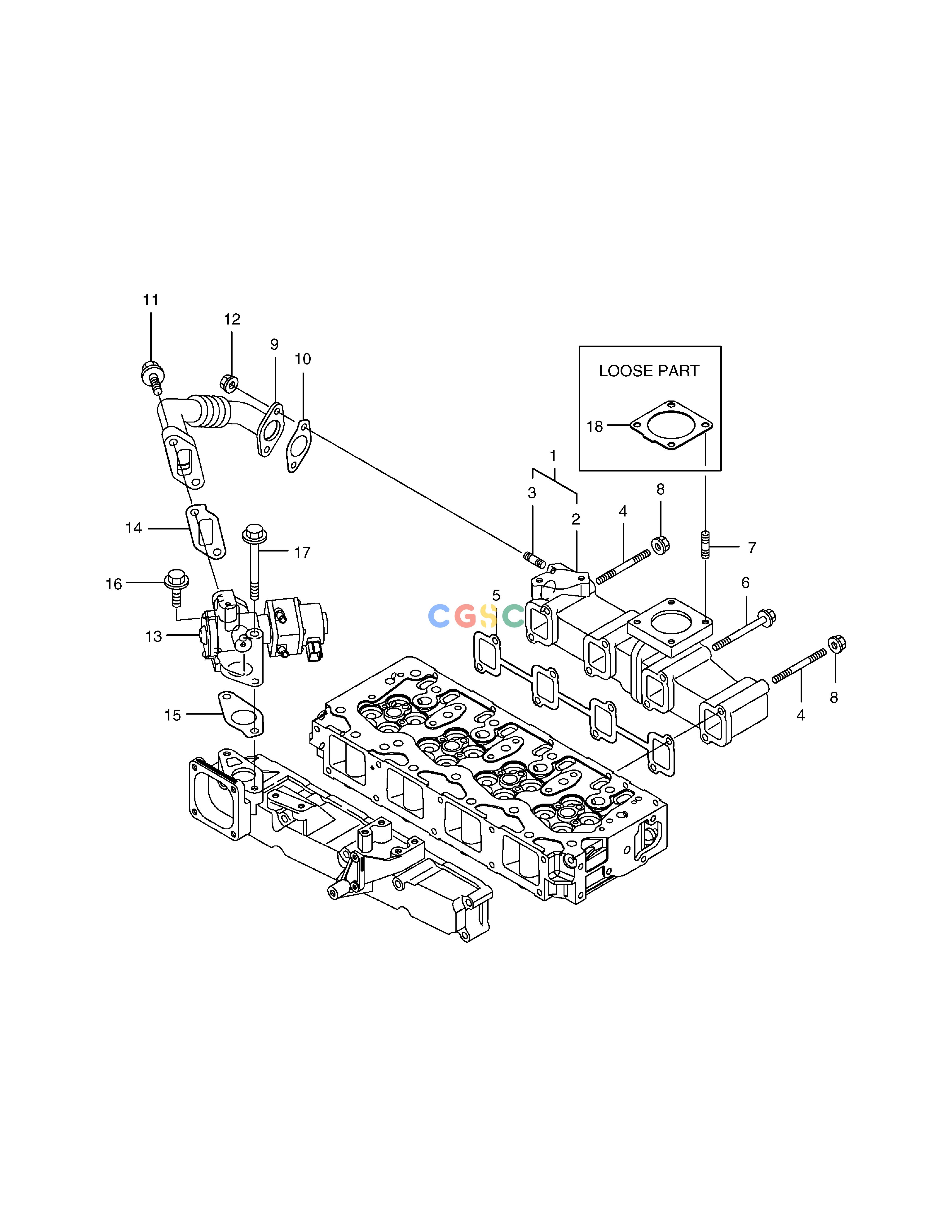

斗山零件查询EXHAUST MANIFOLD DX55W Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
K9006085
|
[1] |
MANIFOLD ASSY;EXHAUST
|
|
| 10. |
K9006087
|
[1] |
GASKET;EGR PIPE
|
|
| 11. |
K9006167
|
[2] |
BOLT
|
|
| 12. |
2.121-00267
|
[2] |
NUT
|
|
| 13. |
K9006089
|
[1] |
VALVE;EGR
|
|
| 14. |
K9006090
|
[1] |
GASKET(EGR IN)
|
|
| 15. |
K9006092
|
[1] |
GASKET(EGR OUT)
|
|
| 16. |
K9006167
|
[1] |
BOLT
|
|
| 17. |
K9006169
|
[1] |
BOLT
|
|
| 18. |
K9002146
|
[1] |
GASKET;SILENCER
|
|
| 2. |
K9006084
|
[1] |
MANIFOLD;EXHAUST
|
|
| 3. |
K9006075
|
[2] |
BOLT;STUD M8X20
|
|
| 4. |
K9006073
|
[2] |
BOLT;STUD M8X100
|
|
| 5. |
A408095
|
[1] |
GASKET;EXHAUST MAINFOLD
|
|
| 6. |
K9006038
|
[6] |
BOLT M8X90
|
|
| 7. |
2.120-00147
|
[4] |
BOLT M8X22
|
|
| 8. |
2.121-00267
|
[2] |
NUT
|
|
| 9. |
K9006086
|
[1] |
PIPE
|
|
