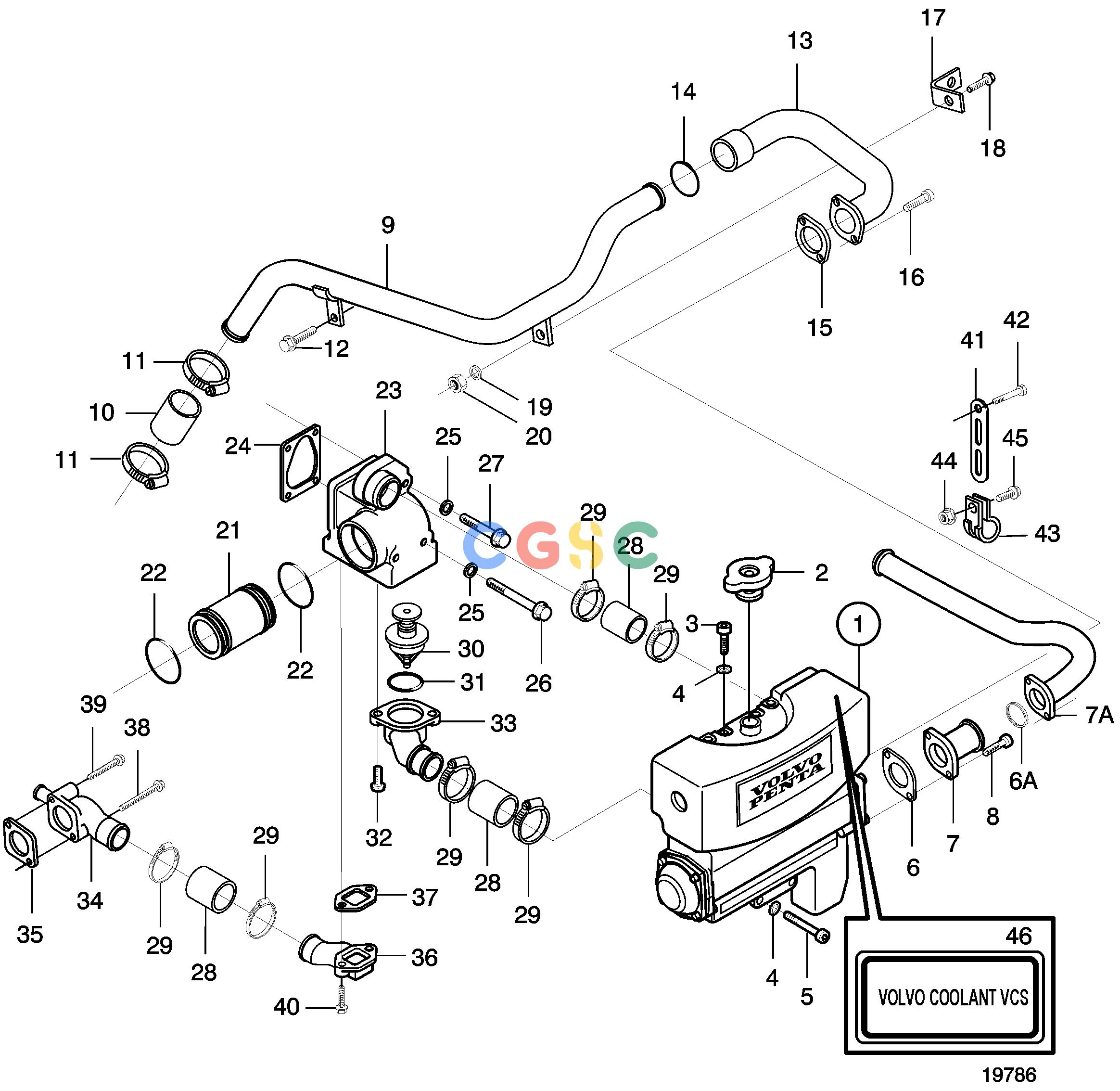

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemHeat Exchanger and Thermostat Housing. Sea Water CoolingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
245 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3838284
|
[1] |
Heat exchanger
|
|
| 1. |
|
|
|
|
| 2. |
3838338
|
[1] |
Pressure cap
|
(1 bar)
|
| 3. |
3838311
|
[2] |
Screw
|
L=150mm
|
| 4. |
20549890
|
[4] |
Washer
|
|
| 5. |
3838311
|
[2] |
Screw
|
L=85mm
|
| 6. |
3838312
|
[1] |
Gasket
|
|
| 6A. |
864491
|
[1] |
Gasket
|
Later production
|
| 7. |
3838285
|
[1] |
Flange
|
Heat exchanger-oil cooler, reverse gear., Earlier production, Sea water outlet for hose conection &#
|
| 7A. |
3836201
|
[1] |
Water pipe
|
Heat exchanger-oil cooler, reverse gear., Sea water outlet for hose conection Ø42mm., Later pro
|
| 8. |
959239
|
[2] |
Hex. socket screw
|
|
| 9. |
3838291
|
[1] |
Coolant pipe
|
|
| 10. |
858471
|
[1] |
Hose
|
L=75mm
|
| 11. |
961671
|
[2] |
Hose clamp
|
|
| 12. |
20405792
|
[1] |
Flange screw
|
|
| 13. |
3838289
|
[1] |
Coolant pipe
|
|
| 14. |
3838318
|
[1] |
Sealing ring
|
|
| 15. |
3838312
|
[1] |
Gasket
|
|
| 16. |
959239
|
[2] |
Hex. socket screw
|
L=30mm
|
| 17. |
3838290
|
[1] |
Bracket
|
|
| 18. |
984734
|
[1] |
Flange screw
|
L=20mm
|
| 19. |
20460127
|
[1] |
Washer
|
|
| 20. |
990940
|
[1] |
Flange nut
|
|
| 21. |
888827
|
[1] |
Water pipe
|
|
| 22. |
20412325
|
[2] |
O-ring
|
|
| 23. |
888844
|
[1] |
Thermostat housing
|
|
| 24. |
888845
|
[1] |
Gasket
|
|
| 25. |
976945
|
[2] |
Washer
|
|
| 26. |
967825
|
[2] |
Hexagon screw
|
L=165mm
|
| 27. |
888847
|
[2] |
Hexagon screw
|
L=115mm
|
| 28. |
3838575
|
[3] |
Hose
|
|
| 29. |
961672
|
[6] |
Hose clamp
|
|
| 30. |
20450736
|
[1] |
Thermostat
|
83°C
|
| 31. |
20459961
|
[1] |
Sealing ring
|
|
| 32. |
984738
|
[2] |
Flange screw
|
|
| 33. |
888849
|
[1] |
Water outlet pipe
|
|
| 34. |
888817
|
[1] |
Water outlet pipe
|
|
| 35. |
20412341
|
[1] |
Gasket
|
|
| 36. |
888818
|
[1] |
Water inlet pipe
|
|
| 37. |
888820
|
[1] |
Gasket
|
|
| 38. |
20460124
|
[1] |
Flange screw
|
L=95mm
|
| 39. |
20405917
|
[1] |
Flange screw
|
L=80mm
|
| 40. |
994386
|
[2] |
Flange screw
|
L=55mm
|
| 41. |
965544
|
[1] |
Bracket
|
|
| 42. |
970891
|
[1] |
Hexagon screw
|
L=130mm
|
| 43. |
969194
|
[1] |
Clamp
|
|
| 44. |
990940
|
[1] |
Flange nut
|
|
| 45. |
984734
|
[1] |
Flange screw
|
|
| 46. |
20777630
|
[1] |
Label
|
|
