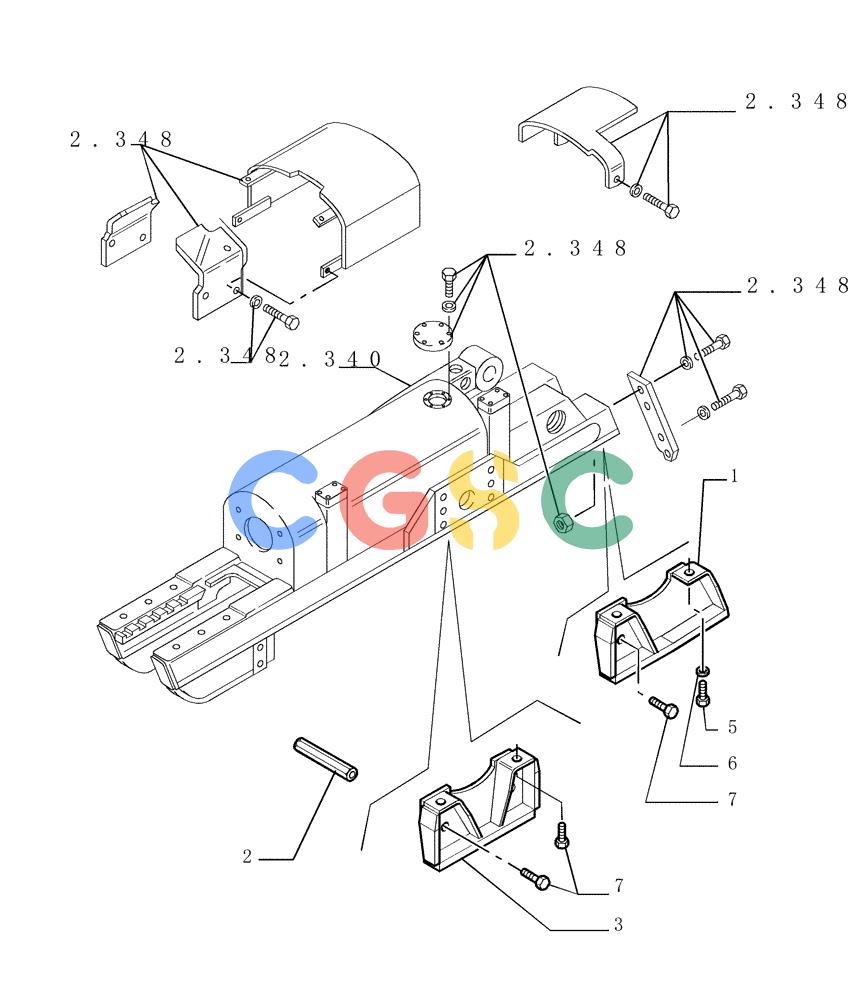

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (9.353[01]) - TRACK ROLLER GUARD - VERSION (02) - OPTIONAL CODE 76072134 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
222 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 76071492 | [2] | GUARD | LEC- REAR LEFT |
| 1. | 76071493 | [2] | GUARD | LEC- REAR RIGHT |
| 2. | 76071498 | [6] | SPACER | LEC |
| 3. | 76071495 | [2] | GUARD | LEC- CENTER LEFT ASSY Superseded by part number: 76092134 |
| 3. | 76071497 | [2] | GUARD | LEC- CENTER RIGHT ASSY Superseded by part number: 76092135 |
| 5. | 15840537 | [12] | BOLT,Hex, M16 x 1.5 x 50mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15840534 |
| 6. | 79005240 | [12] | WASHER,16.8mm ID x 36mm OD x 8mm Thk | LEC16X35,5X8 |
| 7. | 11383631 | [12] | BOLT,Hex, M20 x 1.5 x 50, 10.9, Full Thd | LEC |
| 8. | 79032222 | [12] | WASHER,21mm ID x 40mm OD x 8mm Thk | LEC |
