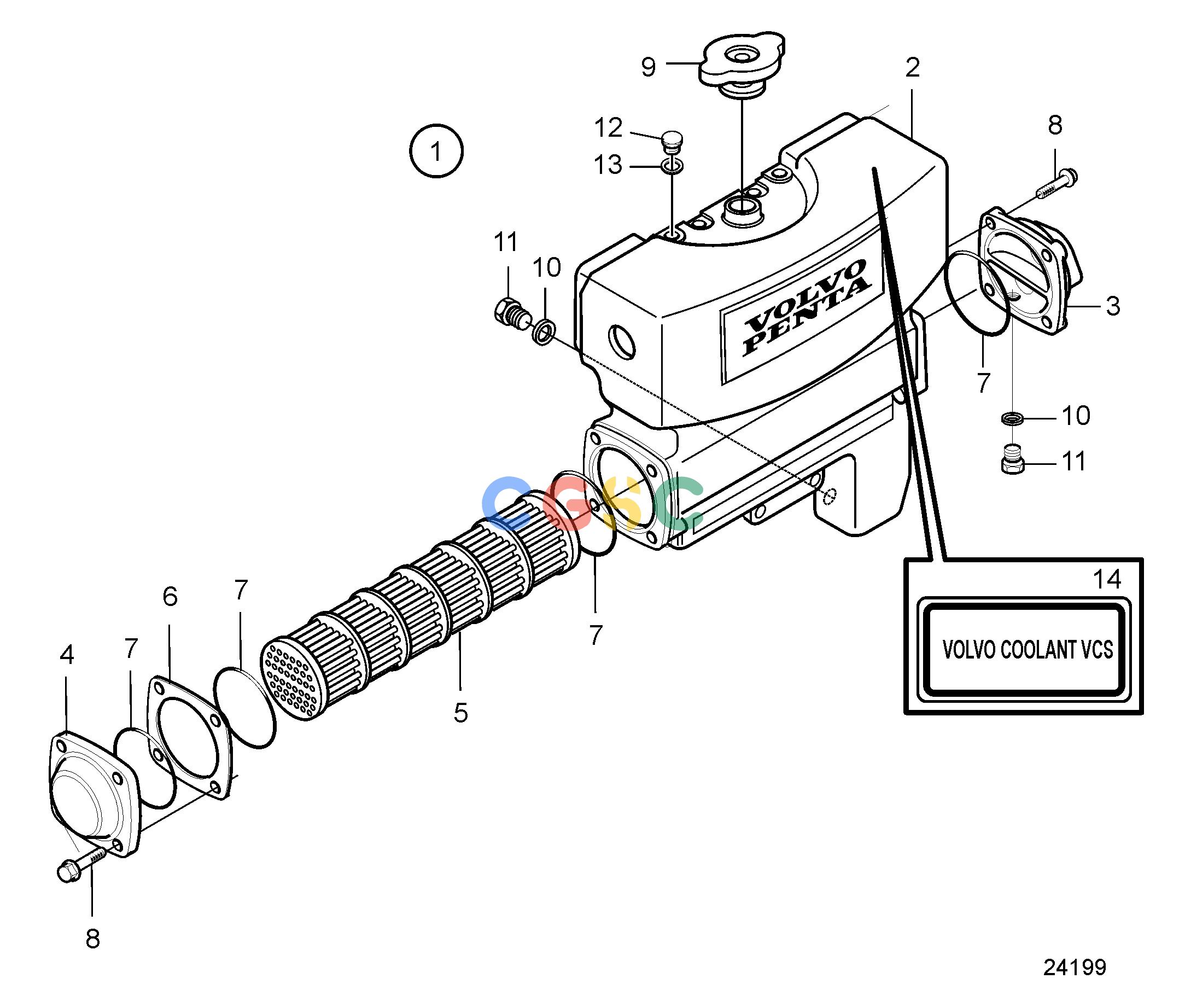

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemHeat Exchanger, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
317 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3838284
|
[1] |
Heat exchanger
|
|
| 2. |
|
|
|
|
| 3. |
3838334
|
[1] |
End cover
|
|
| 4. |
3838333
|
[1] |
End cover
|
|
| 5. |
3838332
|
[1] |
Insert
|
|
| 6. |
3838335
|
[1] |
Spacer
|
|
| 7. |
3838336
|
[4] |
O-ring
|
|
| 8. |
3838337
|
[8] |
Screw
|
|
| 9. |
3838338
|
[1] |
Pressure cap
|
(1 bar)
|
| 10. |
3838339
|
[2] |
Washer
|
|
| 11. |
3838340
|
[2] |
Plug
|
|
| 12. |
960632
|
[1] |
Plug
|
|
| 13. |
948884
|
[1] |
Gasket
|
|
| 14. |
20777630
|
[1] |
Label
|
|
