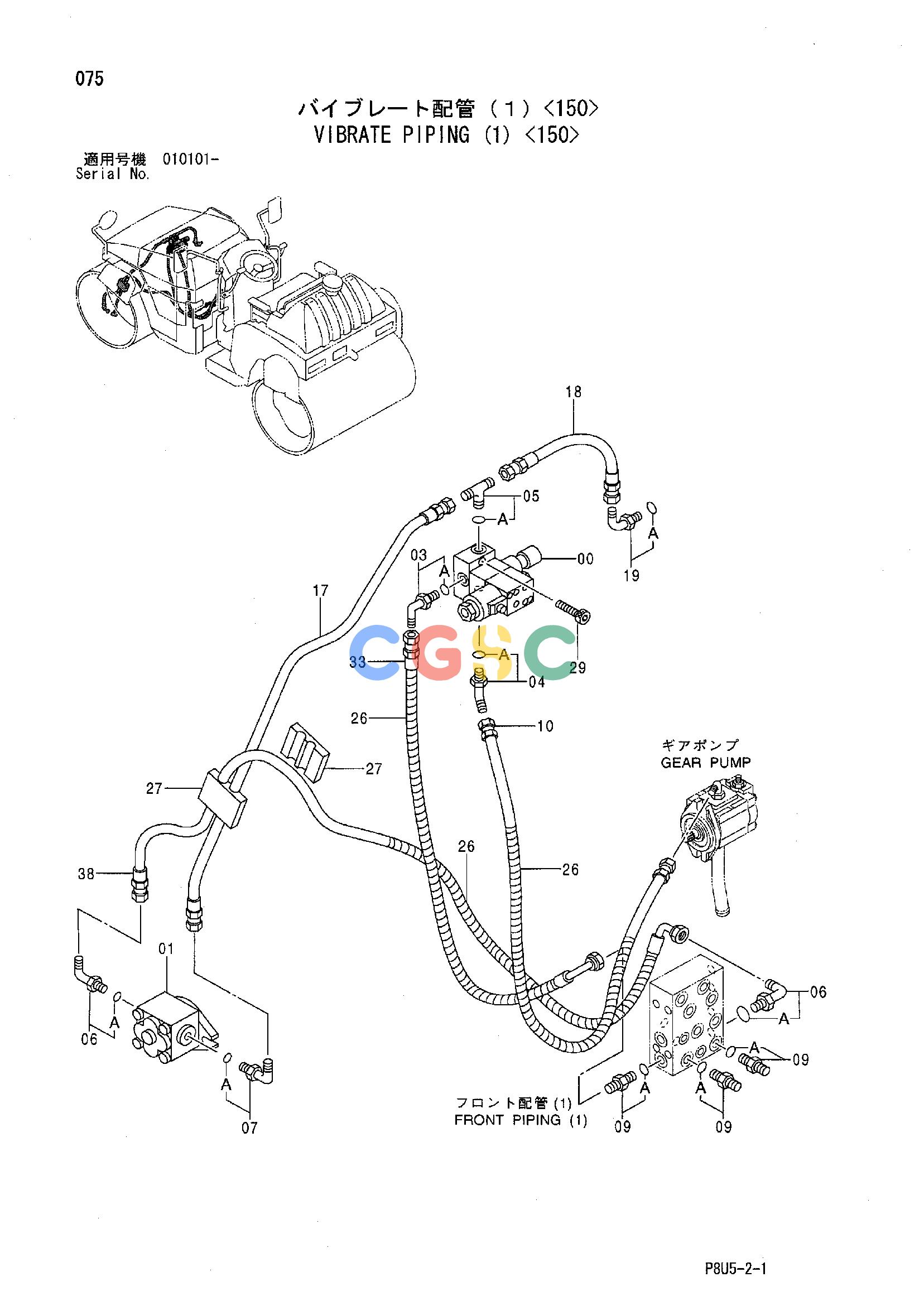

日立零件查询（CC150）VIBRATE PIPING (1) <150> Hitachi HOP online
广数供应链运营团队, 14 02月, 2025，浏览：
398 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 00. | 426014 | [1] | VALVE;CONTROL | |
| 01. | 425437 | [1] | PUMP;GEAR | |
| 03. | 424091 | [1] | ELBOW;S | |
| 03A. | 947519 | [1] | O-RING | |
| 04. | 425541 | [1] | ELBOW;S | |
| 04A. | 947519 | [1] | O-RING | |
| 05. | 425478 | [1] | TEE;S | |
| 05A. | 947519 | [1] | O-RING | |
| 06. | 424049 | [2] | ELBOW;S | |
| 06A. | 430623 | [1] | O-RING | |
| 07. | 424050 | [1] | ELBOW;S | |
| 07A. | 947520 | [1] | O-RING | |
| 09. | 424085 | [3] | ADAPTER;S | |
| 09A. | 430623 | [1] | O-RING | |
| 10. | 425651 | [1] | HOSE | |
| 17. | 424733 | [1] | HOSE | |
| 18. | 425662 | [1] | HOSE | |
| 19. | 425475 | [1] | ELBOW;S | |
| 19A. | 430623 | [1] | O-RING | |
| 26. | 425524 | [6] | PROTECTOR | |
| 27. | 425687 | [2] | CLAMP | |
| 29. | 425553 | [2] | BOLT;SOCKET | |
| 33. | 426033 | [1] | HOSE | |
| 38. | 426046 | [1] | HOSE | |
