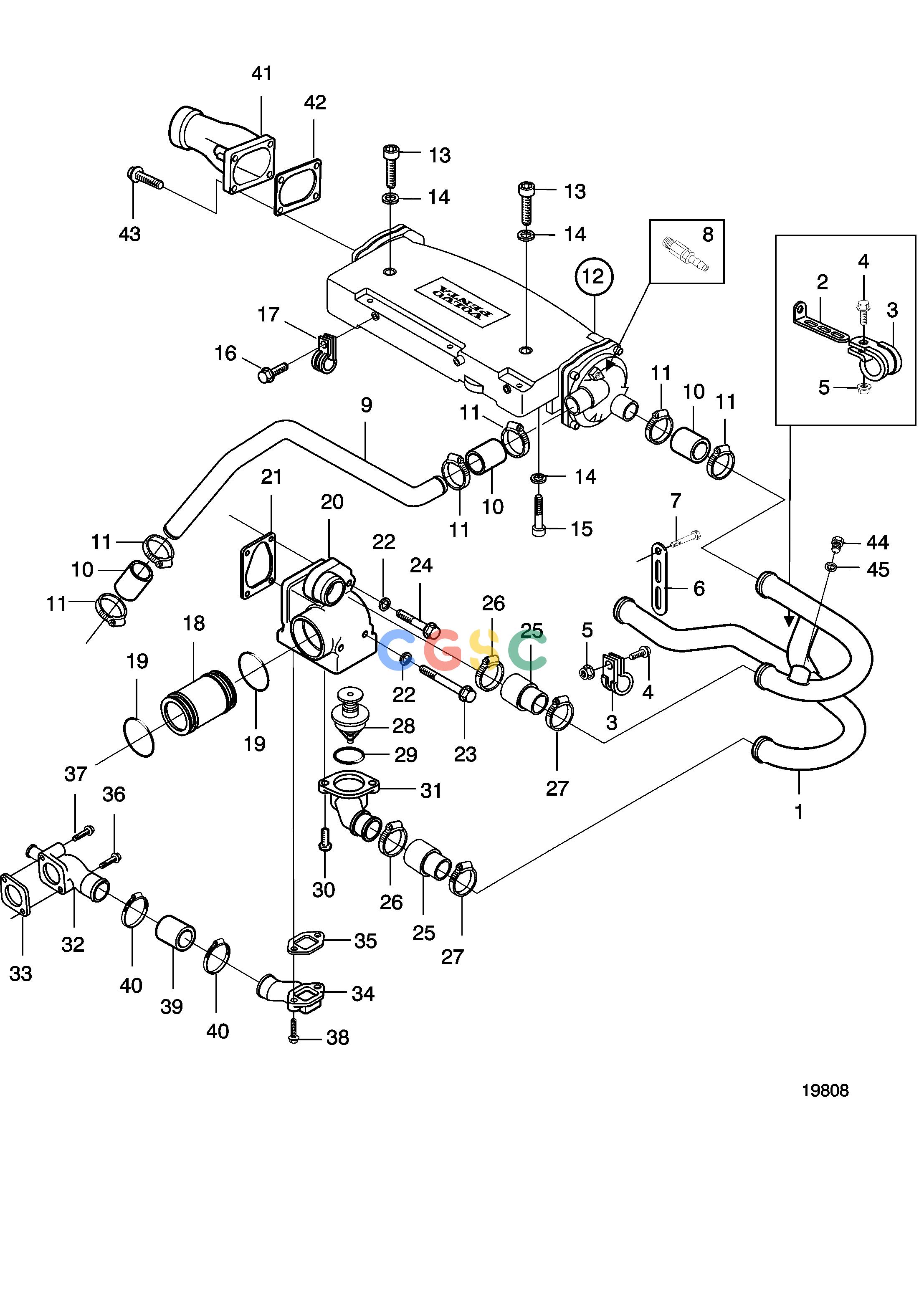

沃尔沃零件查询D5A-T; D5A-TA; D5A-B TA; D7A-T; D7A-TA; D7A-B TA; D7C-TA; D7C-B TACooling SystemKeel Cooling, 1,5 Circuit with Charge Air Cooler and Thermostat HousingEPC Volvo Penta Parts catalog
广数供应链运营团队, 14 02月, 2025，浏览：
243 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
3839440
|
[1] |
Water pipe
|
|
| 2. |
965562
|
[1] |
Bracket
|
|
| 3. |
969194
|
[2] |
Clamp
|
|
| 4. |
984734
|
[2] |
Flange screw
|
|
| 5. |
990940
|
[2] |
Flange nut
|
|
| 6. |
965544
|
[1] |
Bracket
|
|
| 7. |
970891
|
[1] |
Hexagon screw
|
L=130mm
|
| 8. |
966871
|
[1] |
Shut-off cock
|
|
| 9. |
888896
|
[1] |
Sea-water pipe
|
Sea water pump-charge air cooler.
|
| 10. |
3838574
|
[3] |
Hose
|
L=75mm
|
| 11. |
961671
|
[6] |
Hose clamp
|
|
| 12. |
3838414
|
[1] |
Charge air cooler
|
|
| 12. |
|
|
|
|
| 13. |
959239
|
[2] |
Hex. socket screw
|
|
| 13. |
3587511
|
[2] |
Screw
|
L=160mm
|
| 14. |
20405802
|
[4] |
Washer
|
|
| 15. |
959223
|
[2] |
Hex. socket screw
|
L=30mm
|
| 16. |
20405792
|
[1] |
Flange screw
|
L=16mm
|
| 17. |
888852
|
[1] |
Attaching clamp
|
|
| 18. |
888827
|
[1] |
Water pipe
|
|
| 19. |
20412325
|
[2] |
O-ring
|
|
| 20. |
888844
|
[1] |
Thermostat housing
|
|
| 21. |
888845
|
[1] |
Gasket
|
|
| 22. |
976945
|
[2] |
Washer
|
|
| 23. |
967825
|
[2] |
Hexagon screw
|
L=165mm
|
| 24. |
888847
|
[2] |
Hexagon screw
|
L=115mm
|
| 25. |
3837438
|
[2] |
Collar
|
|
| 26. |
943479
|
[2] |
Hose clamp
|
|
| 27. |
943478
|
[2] |
Hose clamp
|
|
| 28. |
20450736
|
[1] |
Thermostat
|
83°C
|
| 29. |
20459961
|
[1] |
Sealing ring
|
|
| 30. |
984738
|
[2] |
Flange screw
|
|
| 31. |
888849
|
[1] |
Water outlet pipe
|
|
| 32. |
888817
|
[1] |
Water outlet pipe
|
|
| 33. |
20412341
|
[1] |
Gasket
|
|
| 34. |
888818
|
[1] |
Water inlet pipe
|
|
| 35. |
888820
|
[1] |
Gasket
|
|
| 36. |
20460124
|
[1] |
Flange screw
|
L=95mm
|
| 37. |
20405917
|
[1] |
Flange screw
|
L=80mm
|
| 38. |
994386
|
[2] |
Flange screw
|
L=55mm
|
| 39. |
3838575
|
[1] |
Hose
|
|
| 40. |
943480
|
[2] |
Hose clamp
|
|
| 41. |
888876
|
[1] |
Charge air pipe
|
|
| 42. |
888775
|
[1] |
Intake gasket
|
|
| 43. |
984735
|
[4] |
Flange screw
|
L=25mm
|
| 44. |
479956
|
[1] |
Plug
|
|
| 45. |
941908
|
[1] |
Spring washer
|
|
