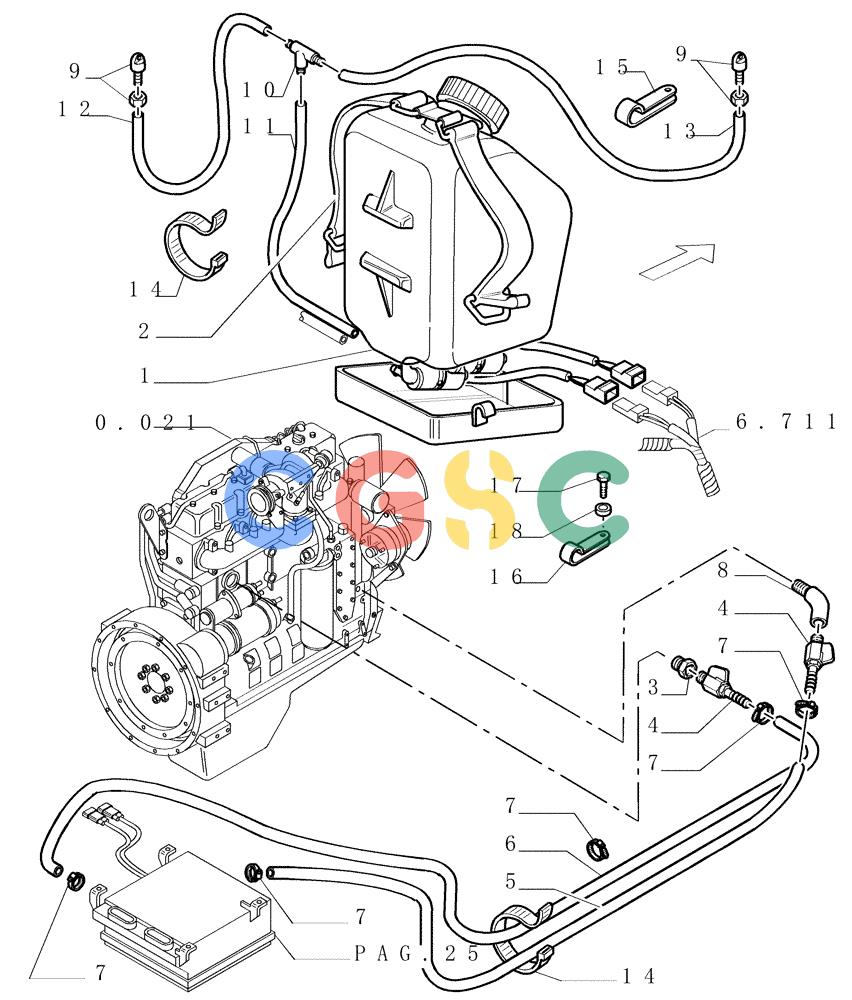

纽荷兰零件查询(DC180PS) - CRAWLER DOZER (11/00-) (9.652[02]) - ROPS CAB - VERSION (02-03) - OPTIONAL CODE 76069709 New Holland Constructuion
广数供应链运营团队, 14 02月, 2025，浏览：
538 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 79096265 | [1] | TANK | LEC- WINDSHIELD WASHER -5 litres; Cap Not Serviced Separately |
| 2. | 76004366 | [1] | SECURING STRAP | LEC |
| 3. | 76045353 | [1] | ADAPTER | LEC |
| 4. | 76066174 | [2] | SHUT-OFF VALVE | LEC |
| 5. | 76040469 | [1] | FLEXIBLE HOSE,18.00 mm ID x 2150.00 mm | LECReturn Superseded by part number: 78100219 |
| 6. | 76071472 | [1] | HOSE | LEC- INLET Superseded by part number: 76014938 |
| 7. | 79083842 | [4] | HOSE CLAMP,M16-27 | LEC Superseded by part number: 18088392 |
| 8. | 76066333 | [1] | ELBOW | LEC45° |
| 9. | 79095451 | [2] | NOZZLE | LEC |
| 10. | 79097787 | [1] | TEE | LEC |
| 11. | 79095816 | [1] | HOSE | LEC Superseded by part number: 19044986 |
| 12. | 76068436 | [1] | HOSE,4.00 mm ID x 700.00 mm | LEC Superseded by part number: 19044986 |
| 13. | 76068437 | [1] | HOSE,4.00 mm ID x 3000.00 mm | LEC Superseded by part number: 19044986 |
| 14. | 79013422 | [6] | CABLE TIE,145mm L | LEC |
| 15. | 10450190 | [2] | CLAMP,10mm, Coat, 9mm Bolt Hole, P Type | JES66X9 Superseded by part number: |
| 16. | 79011405 | [1] | CLAMP | LEC Superseded by part number: 86637995 |
| 17. | 15970331 | [1] | BOLT,Hex, M10 x 1.25 x 16mm, Cl 10.9, Full Thd | LEC Superseded by part number: 15970324 |
| 18. | 14496631 | [1] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC Superseded by part number: 14496621 |
