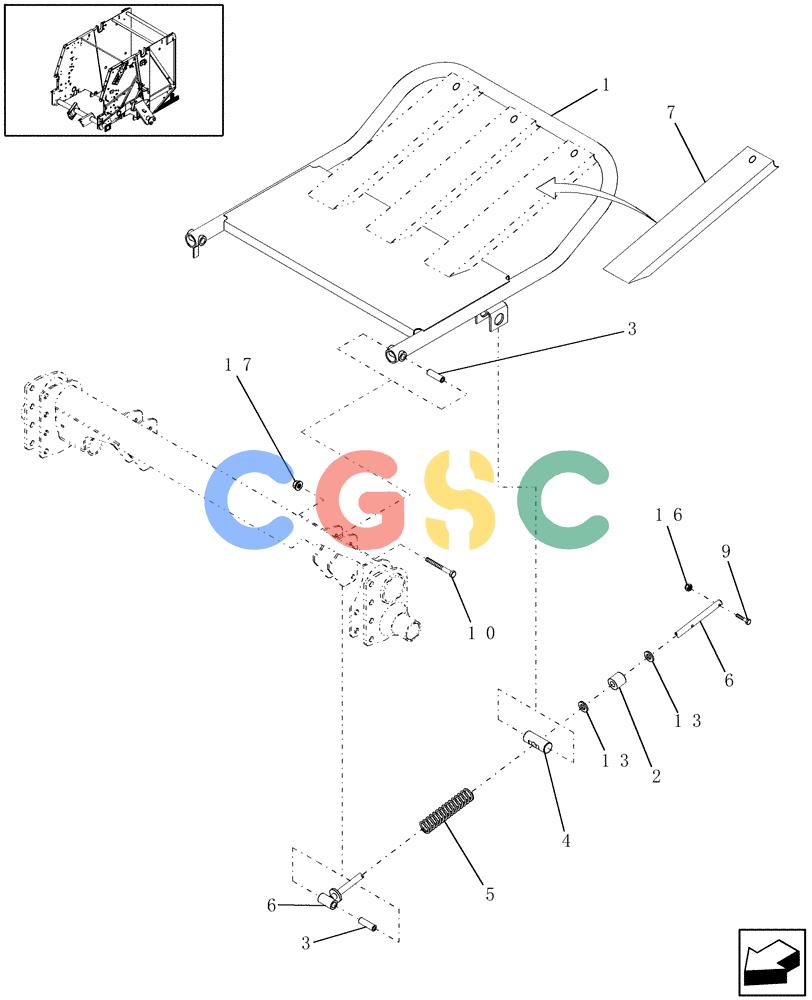

凯斯零件查询(RBX562) - CASE IH ROUND BALER (9/02-7/05) (16.20[1]) - BALE EJECTOR, PRIOR TO P.I.N. HBJ0007711 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
315 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87027506
|
[1] |
EJECTOR
|
PA
Bale, Ref. 7 is Not Included. Superseded by part number: 87036685, 87036685, 87045726, 87036685, 87045726, 87045727, 87036685, 87045726, 87045727, 87045728
|
| 2. |
86562970
|
[2] |
BUSHING,19.3mm ID x 41.61mm OD x 40.1mm L
|
NH
Rubber
|
| 3. |
647765
|
[4] |
SPACER
|
NH
Superseded by part number: 87022950
|
| 4. |
86637296
|
[2] |
PIN
|
NH
Superseded by part number: 87028069
|
| 5. |
87029355
|
[2] |
SPRING,Compression, 2.14" OD x 19.9" L
|
NH
Heavy Duty, 2-1/8" OD
|
| 5. |
87022949
|
[2] |
SPRING,Compression, 41.27mm OD x 505mm L
|
PA
Compression, Light Duty, 1-5/8" OD
|
| 6. |
86637308
|
[2] |
ROD
|
NH
Superseded by part number: 87028071
|
| 7. |
87034715
|
[3] |
CHANNEL
|
PA
Optional
|
| 9. |
426-524
|
[2] |
BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 8
|
CAS
Superseded by part number: 86514369
|
| 10. |
814-12090
|
[4] |
BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8
|
CAS
Superseded by part number: 86508581
|
| 13. |
141781
|
[4] |
WASHER
|
NH
3/4"
|
| 16. |
231-4145
|
[2] |
NUT,5/16"-18, GB
|
CAS
Superseded by part number: 280736
|
| 17. |
829-2412
|
[4] |
FLANGE NUT,M12 x 1.75, Flg, Cl 10
|
CAS
Superseded by part number: 86512497
|
